Timex 33 User Manual

33.6

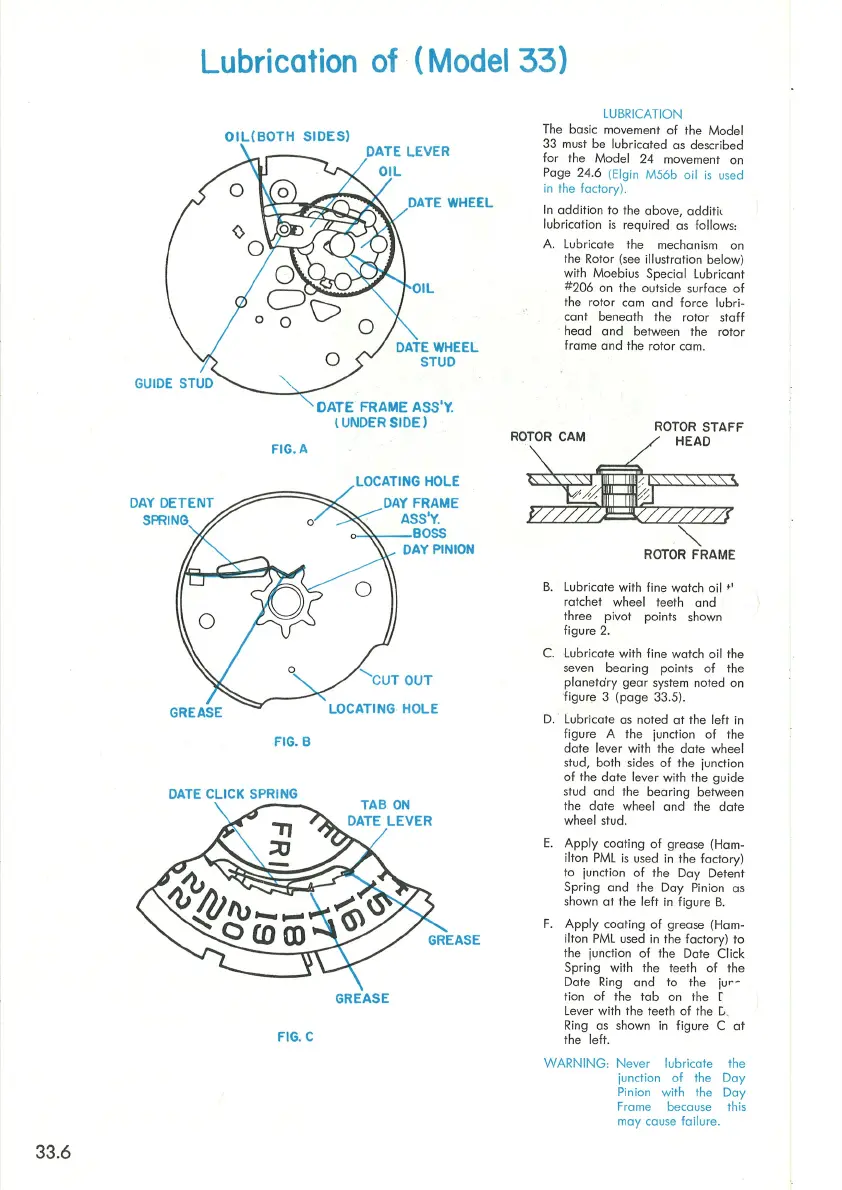

Lubrication
of
(Model
33)
OIL(BOTH
SIDES)
FIG.
A
FIG.
B
DAT
E
CLICK SPRING
FIG. C
LOCATING HOLE
DAY
FRAME
ASS'Y.
~~
-BOSS
DAY PINION
GREASE
L
UBRICAT
I
ON
The
basic movement
of
the Model
33 must be lubricated
as
described
for
the Model 24 movement on
Page 24.6 (Elgin
M56b
oil
is
used
in
the factory).
In
addition
to
the above,
additk
lubrication
is
required
as
follows:
A.
Lubr
icate the mechanism
on
the Rotor
(see
illustration
below)
with Moebius Special
Lubricant
#206
on the outside surface
of
the rotor
cam
and force
l
ubr
i~
cant beneath
th
e rotor staff
head and between the rotor
frame and the rotor cam.
ROTOR
FRAME
B.
Lubricate w
ith
fine watch
oi
l
~·
ratchet wheel teeth
and
three pivot points
shown
figure
2.
C.
Lubricate with fine watch oil the
seven
bearing points of the
planetdry
gear
system
noted
on
figure 3 (page 33.5).
D.
Lubricate
as
noted at the left
in
figure A the junction
of
the
date
lever with the date wheel
stud, both sides
of
the junction
of
the date lever with the guide
stud
and
the bearing between
the date wheel
and
the
date
wheel stud.
E.
Apply
coating
of
grease
(Ham-
ilton
PML
is
used
in
the factory)
to junction
of
the Day Detent
Spring
and
the Day Pinion
as
shown
at
the left
in
figu
re
B.
F.
Apply
coaling
of
grease
(Ham-
ilton
PML
used
in
the factory)
to
the junction
of
the Date Click
Spring
with the teeth
of
the
Date
Ring
and
to
th
e
jur-
tion
of
the
tab
on the [
Lever with the teeth
of
the
L.
Ring
as
shown
in
figure C
at
the left.
WA
RNING,
Never lubricate the
junction
of
the
Day
Pinion
wi
th
the
Day
Frome because th
is
may
cause
failure.
