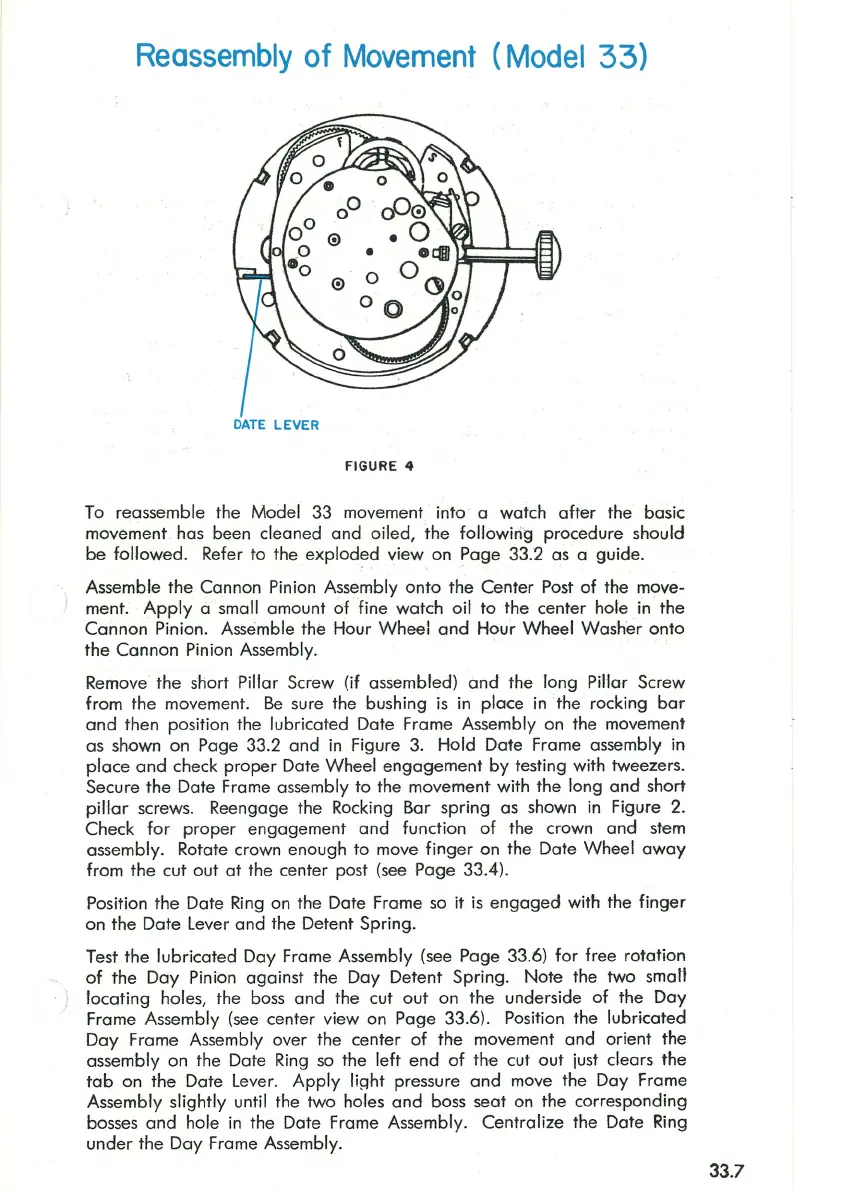

Reassembly
of
Movement
(Model
33)
DATE
LEVER
FIGURE
4
To reassemble the
Model
33 movement into a watch
after
the basic
movement has been
cleaned
and
oiled, the
following
procedure should
be
followed.
Refer to the
exploded
view
on Page 33.2 as a guide.
Assemble the Cannon Pinion Assembly
onto
the Center Post
of
the move-
ment.
Apply
a
small
amount
of
fine
watch
oil
to
the center hole in the
Cannon
Pinion.
Assemble
the
Hour
Wheel
and
Hour
Wheel
Washer
onto
the
Cannon
Pinion Assembly.
Remove the short
Pillar Screw
(if assembled)
and
the
long
Pillar Screw
from
the movement.
Be
sure the bushing is in place in the rocking
bar
and
then
po
sition the lubricated Date Frame Assembly on the movement
as shown
on
Page 33.2
and
in Figure
3.
Hold
Date
Frame assembly in
plac
e
and
check
proper
Date
Wheel
engagement
by
testing
with
tweezers.
Secure
the
Date
Frame assembly
to
the movement
with
the
long
and
short
pillar
screws. Reengage the Rocking
Bar
spring
as shown in Figure 2.
Check
for
proper
engagement
and
function
of
the crown
and
stem
assembly. Rotate crown enough
to
move
finger
on
the
Date
Wheel
away
from
the
cut
out
at
the center post (
see
Page 33.4).
Position the
Date
Ring on the Date Frame
so
it
is
engaged
with
the
finger
on
the
Date
Lever
and
the Detent
Spring.
Test the
lubricated
Day
Frame Assembly (see Page 33.6)
for
free
rotat
i
on
of
the
Day
Pinion against the
Day
Detent
Spring
.
Note
the
two
smafl
locating
holes, the boss
and
the cut
out
on the underside
of
the
Day
Frame Assembly
(see
center
view
on Page
33
.6). Position the
lubricated
Day
Frame Assembly over the center
of
the movement
and
orient
the
assembly
on
the Date Ring
so
the
left
end
of
the cut
out
just
clears
the
tab
on the
Date
Lever.
Apply
l
i
~ht
pressure
and
move the
Day
Frame
Assembly
slightly
until
the
two
holes
and
boss seat on the corresponding
bosses
and
hole in the
Date
Frame Assembly.
Centralize
the
Date
Ring
unde
r the
Day
Frame Assembly.
33.7
