Disassembly of Movement {model 40)
CASE K
CELL
OPENING NOTCH
MOVEMENT COYER
TAB
MOVEMENT

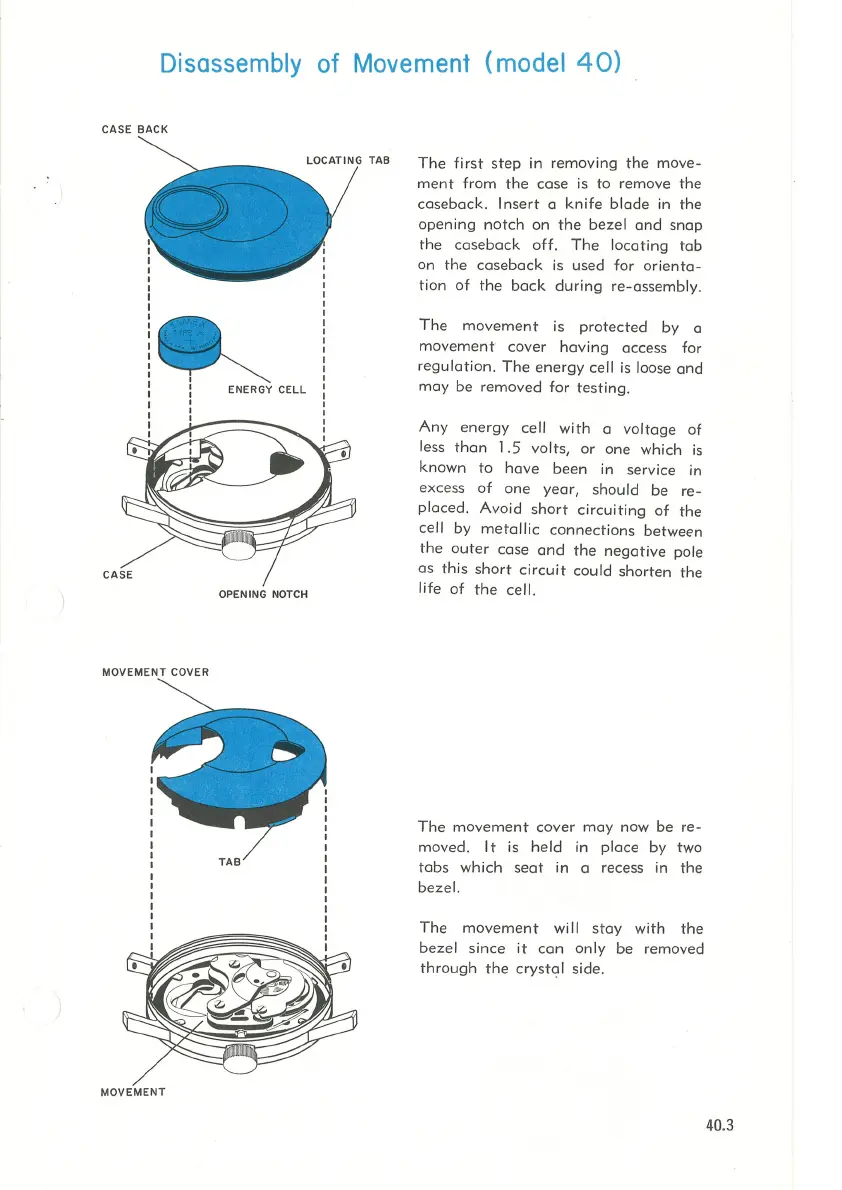

The first step in removing the move-
ment from the cose is to remove the
cosebock. Insert a knife blade in the
opening notch on the bezel and snap
the caseback off. The locating tab
on the caseback is used for orienta-
tion of the back during re-assembly.
The movement is protected by a
movement"
cover having access for
regulation. The energy cell is loose and
may be removed for testing.
Any energy cell with a voltage of
less
than 1 .5 volts, or one which is
known to have been in service in
excess of one year, should be re-
placed. Avoid short circuiting of the
cell by metallic connections between
the outer case and the negative pole
as this short circuit could shorten the
life of the cell.
The movement cover may now be re-
moved . It is held in place by two
tabs which seat in a recess in the
bezel.
The movement will stay with the
bezel since it can only be removed
through the cryst<;~l side.
