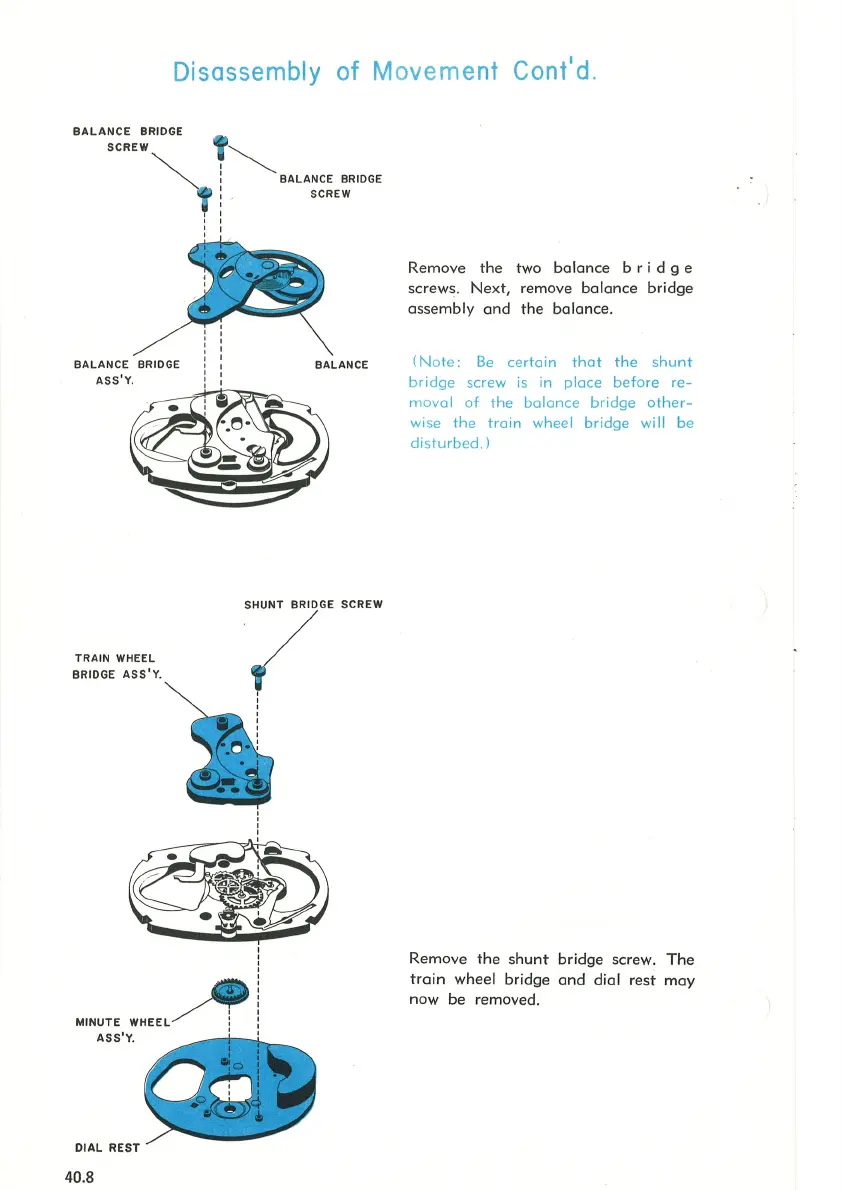

Disassembly
of
Movement Cont'd.
BALANCE
BRIDGE
BALANCE BRIDGE
ASS'Y
.
TRAIN WHEEL
BRIDGE
ASS'Y
.
BRIDGE
SCREW
BALANCE
'7
""''"
'
'
MINUTE
WHEEL
~
ASS'Y
.
DIAL
REST
40.8
Remove
the
two
balance
b r i d g e
screws.
Next,
remove
balance
bridge
assembly
and
the
balance.
(Note:
Be
certain
that
the
shunt
bridge
screw
is
in
place
before
re-
moval of
the
balance
bridge
other-
wise
the
train
wheel
bridge
wi
ll
be
disturbed
.)
Remove
the
shunt
bridge
screw
.
The
train
wheel
bridge
and
dial
rest
may
now
be
removed.
