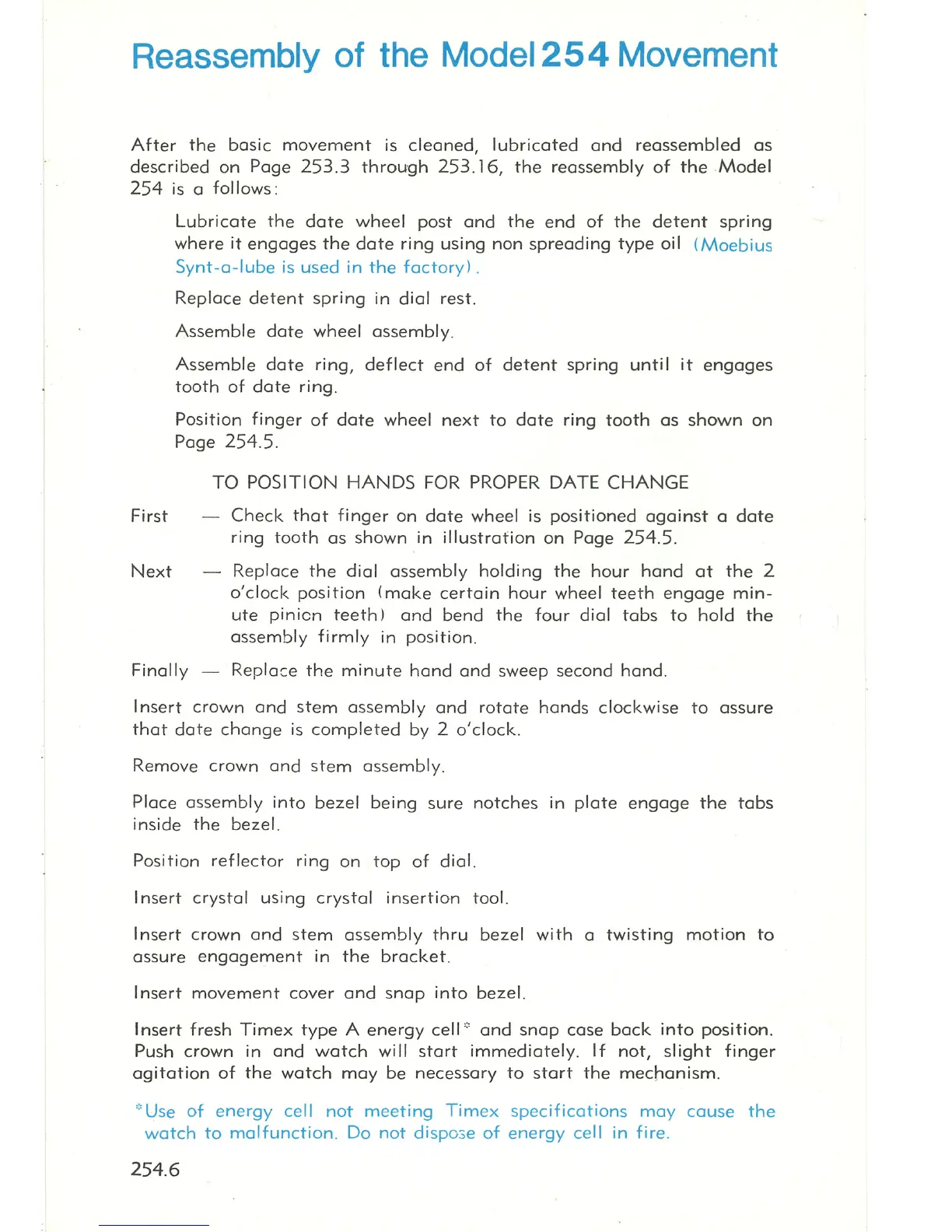

Reassembly of the Model254 Movement
After the basic movement is cleaned, lubricated and reassembled as
described on Page 253.3 through 253.16, the reassembly of the Model
254 is a follows:
Lubricate the dote wheel post and the end of the detent spring
where it engages the dote ring using non spreading type oil (Moebius
Synt-o-lube is used in the factory) .
Replace detent spring in dial rest .
Assemble dote wheel assembly.
Assemble dote ring, deflect end of detent spring until it engages
tooth of dote ring.
Position
finger of dote wheel next to dote ring tooth as shown on
Page 254.5.
TO POSITION HANDS FOR PROPER DATE CHANGE
First Check that finger on dote wheel is positioned against a dote
ring tooth as shown in illustrofion on Page 254.5.
Next Replace the dial assembly holding the hour hand at the 2
o'clock position I make certain hour wheel teeth engage min-
ute pinicn teeth) and bend the four dial tabs to hold the
assembly firmly in position.
Finally - Replo::e
the minute hand and sweep second hand.
Insert crown and stem assembly and rotate hands clockwise to assure
that dote change is completed by 2 o'clock.
Remove crown and stem assembly.
Place assembly into bezel being sure notches in plate engage the tabs
inside the bezel.
Position
reflector ring on top of dial.
Insert crystal using crystal insertion tool.
Insert crown and stem assembly thru bezel with a twisting motion to
assure engagement in the brocket.
Insert movement cover and snap into bezel.
Insert fresh Timex type A energy cell''' and snap case bock into position.
Push crown in
and watch will start immediately. If not, slight finger
agitation of the watch may be necessary to start the mechanism.
''' Use of energy cell not meeting Tim ex sp e cifications may cause the
watch to malfunction . Do not disp ose of energy cell in fire.
254.6
