Disassembly
of
the Model
254
Movement
CASE BACK
I
CELL
I
.--OPENING
NOTCH
f:1
MOVEMENT
COVER
MOVEMENT
LOCATING
NOTCH

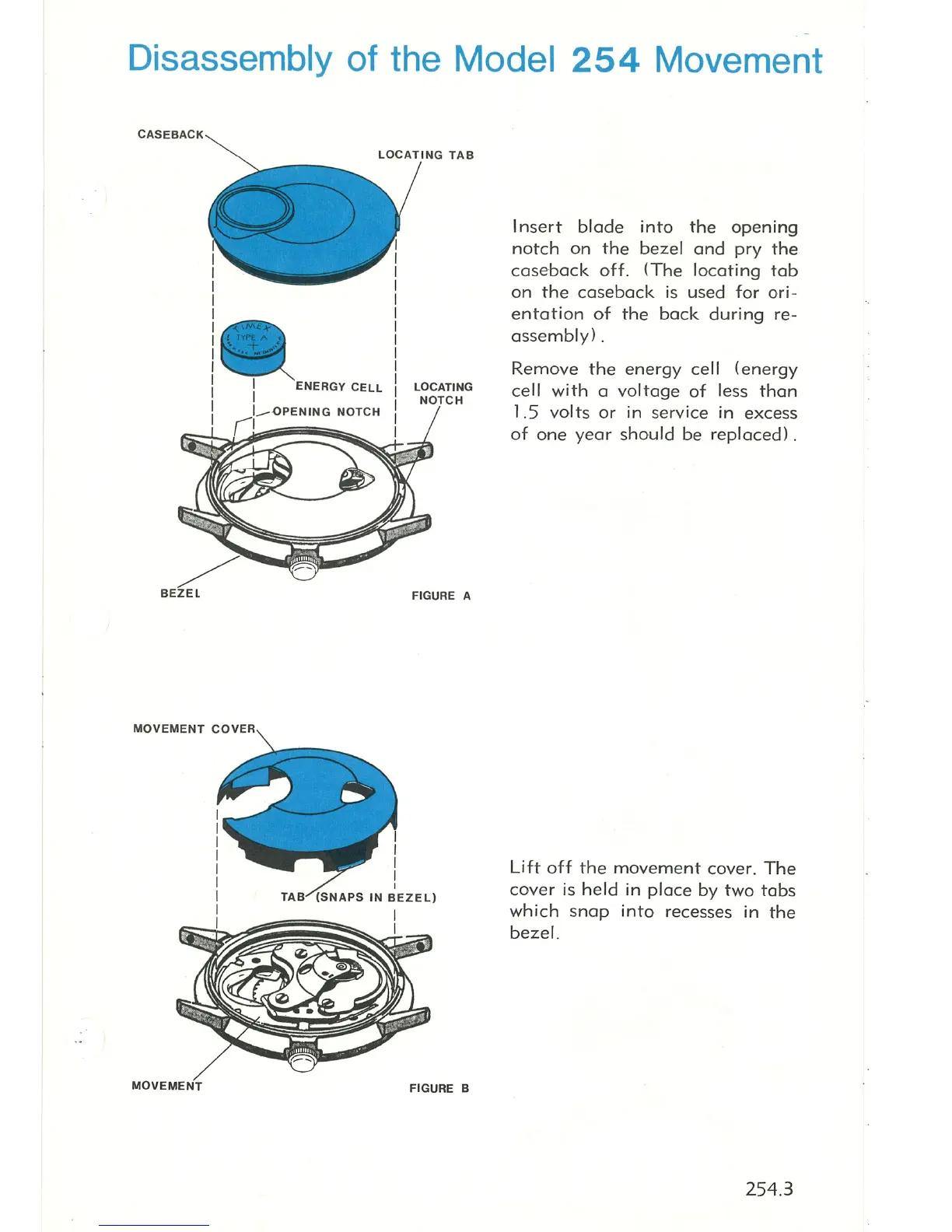

FIGURE
A
FIGURE B
Insert
blade
into
the
open
ing
notch
on
the
bezel
and
pry
the
caseback
off.
(The
locating
tab
on
the
caseback
is
used
for ori-
entation
of
the
back
during
re-
assembly).
Remove
the
energy
cell
(energy
cell
with
a vol
tage
of
less
than
1.5
vol
ts
or
in service in
excess
of
one
year
should
be
replaced).
Lift
off
the
movement
cover.
The
cover
is
held
in
place
by two
tabs
which
snap
into
recesses in
the
bezel.
254.3
