Tineco PURE ONE S11 Series User Manual

EN
9

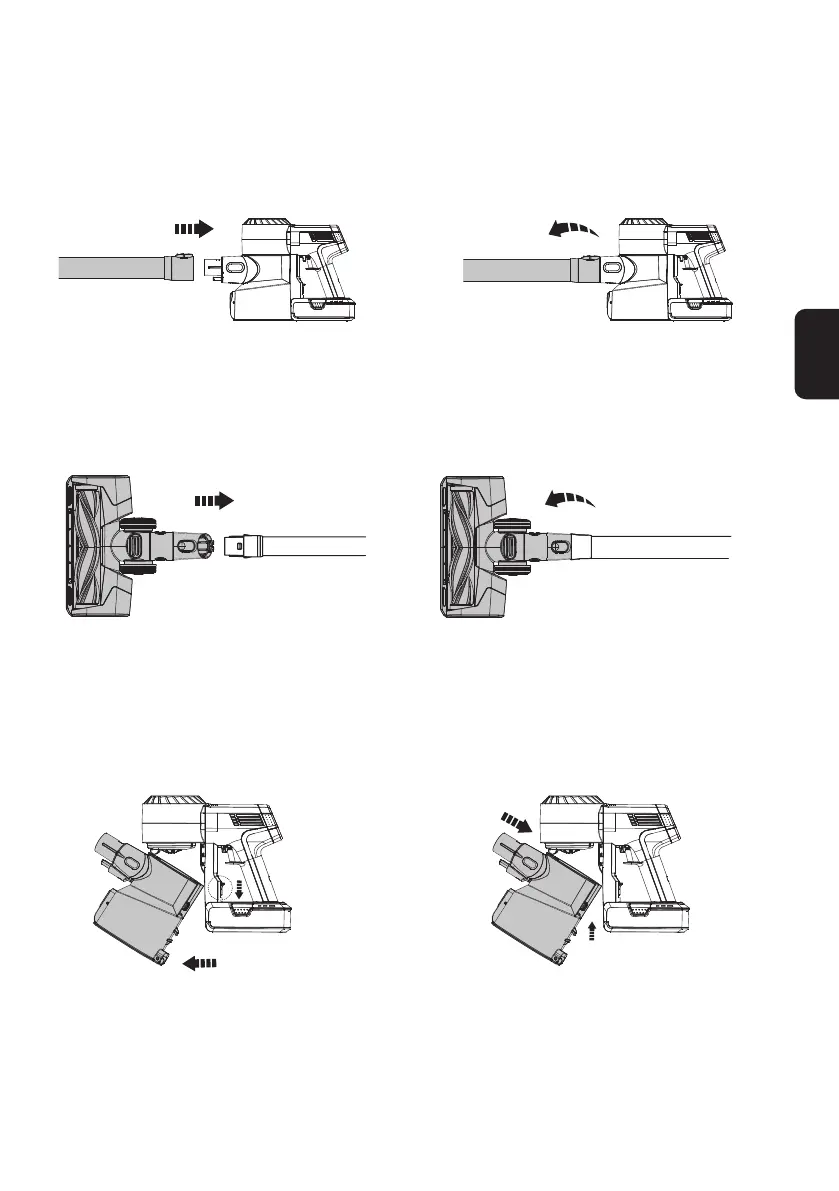

Insert tube.
Insert the power brush.
Press the release button to remove the tube.
Press the release button to remove the power
brush.
Tube Installation
Brush Installation
Assembly
To clean the dustbin more thoroughly,
press the dustbin release button to
detach from the appliance.
When re-attaching the dustbin, hold on an
angle and slot the top of the dustbin into the
hook on the main body. Push upwards until the
hook is xed into the slot on the dustbin and
then it clicks back into place.
①
②
Dustbin Installation

Tineco PURE ONE S11 Series Specifications

General

Model	PURE ONE S11 Series
Type	Cordless Stick Vacuum Cleaner
Battery Life	Up to 40 minutes
Battery Voltage	21.6V
Charge Time	3-4 hours
Dustbin Capacity	0.6 liters
Suction Power	130W
Filtration	HEPA
Smart Display	Yes
Multi-Surface Cleaning	Yes
Smart Features	iLoop Smart Sensor Technology
Accessories	Crevice Tool, Dusting Brush
Filtration System	4-stage fully sealed
