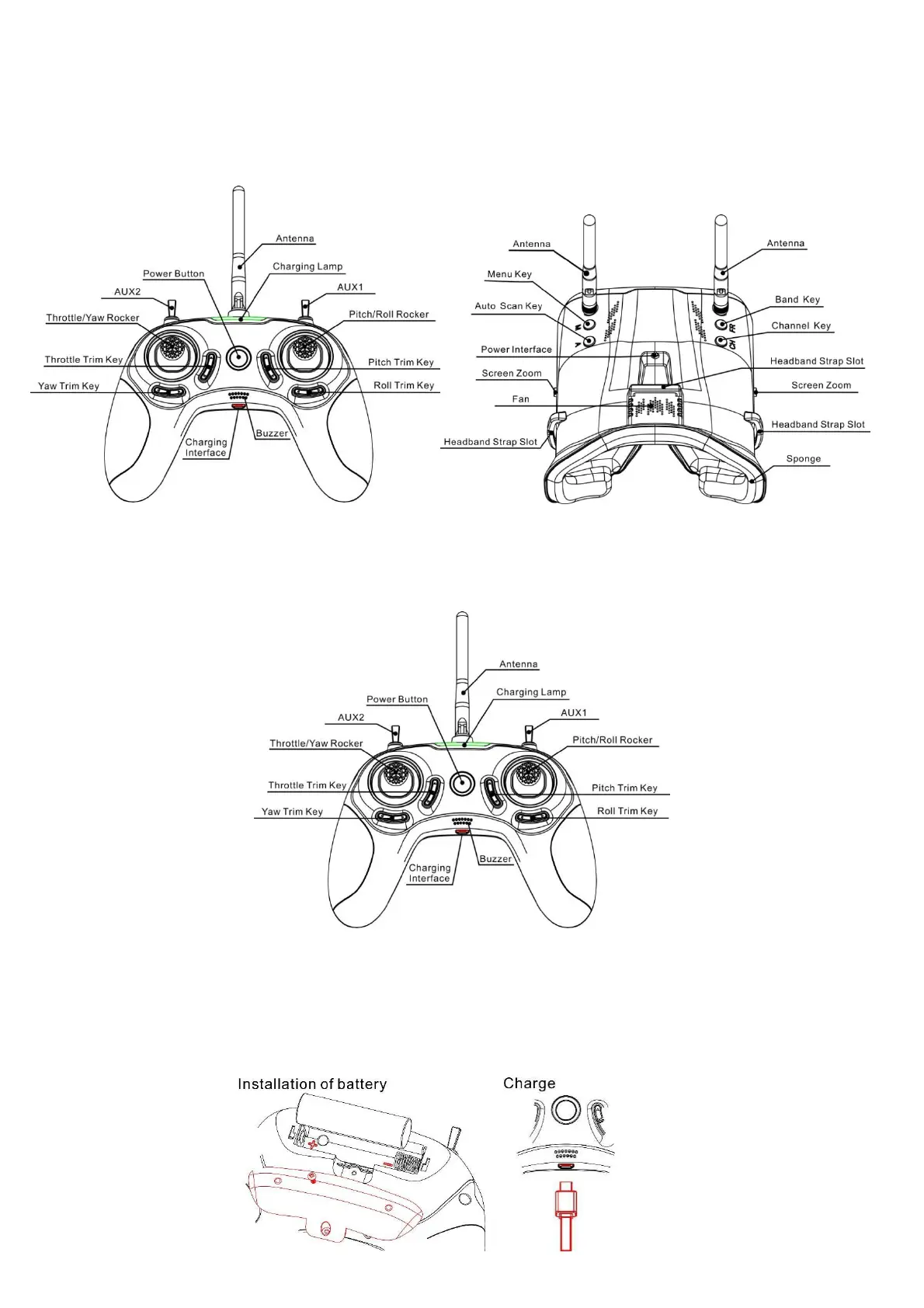

Radio and Goggle Diagram
Radio
Battery and Charging
This is a 6 channel 2.4 GHz radio, The radio is powered with an 18650 battery. The
radio comes with the battery installed; however if a reinstall is needed make sure the
negative side is on the side touching the spring of the radio. The radio can be
charged with a micro usb cable attached right below the speaker and power button.
