2

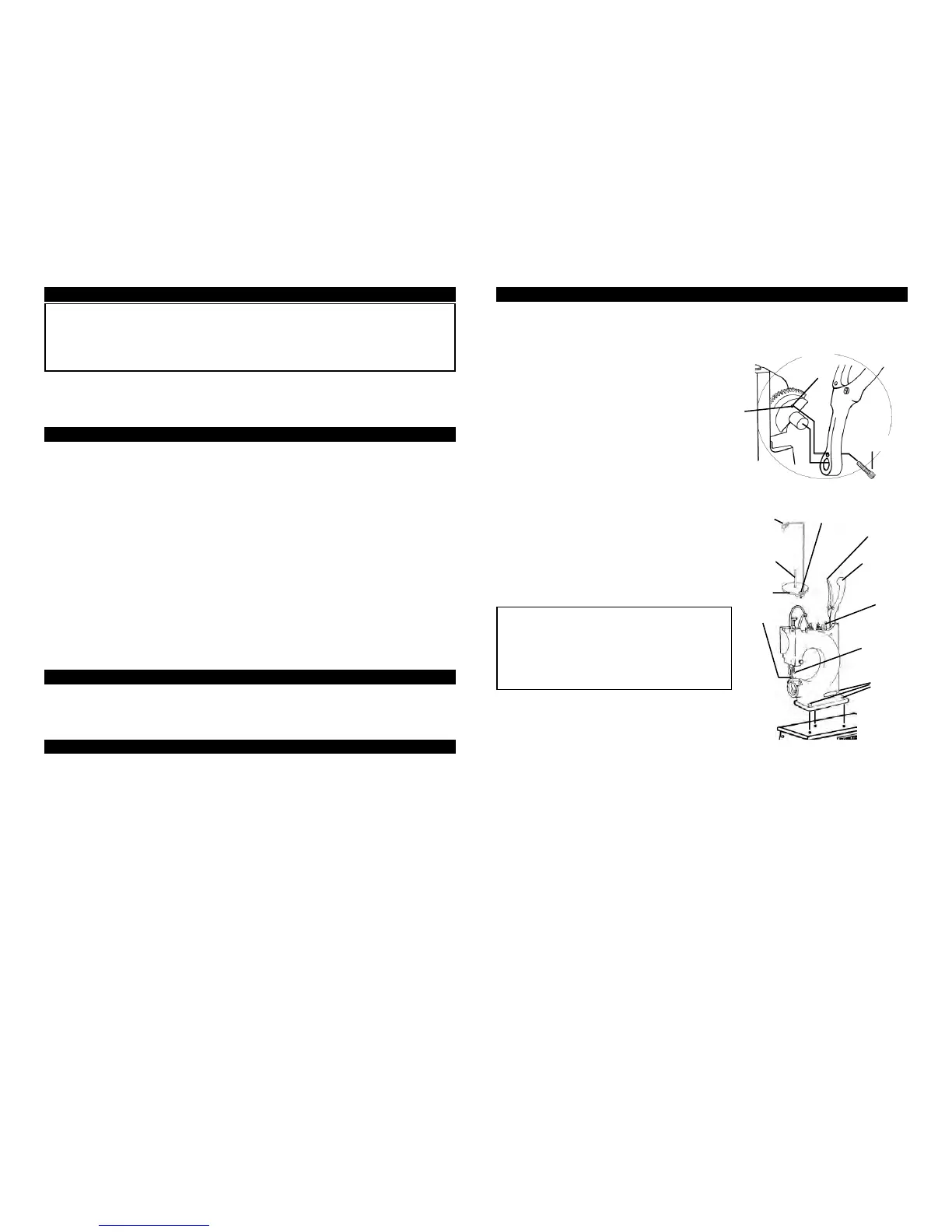

1. To Secure machine to existing work bench use three (3) 3/8"
bolts or lag screws of suitable length.
2. Attach the Stitching Handle to
the BOSS. Slide the Stitching
Handle onto the shaft & secure the
handle in position with bolt (HS
100-3).
3. Attach the Thread Stand.
1) Insert the Thread Stand Post
into the center of the thread stand
base and secure with nut.
2) Insert the bolt through the
thread guide and thread stand
plate and carefully start it into the
provided hole on the top of the
sewing machine. Position the
thread guide to allow the thread
to feed into thread guide B
unobstructed and tighten the bolt
to secure.
CAUTION: Always keep your free
hand clear of presser foot and
needle foot during operation -
including during the following
tests.
MOUNTING
HOLES
(3)
NEEDLE
FOOT
PRESSER
FOOT
THREAD
STAND
PLATE
THREAD
STAND
POST
THREAD
GUIDE
THREAD
GUIDE
"B"
PRESSER
FOOT
LIFTING
HANDLE
STITCH
HANDLE
• To Check* the Presser Foot Lift:
(*Always be sure the presser foot path
is clear of hands, tools etc.)
With machine secured to a stable work
bench, lift the Presser Foot by
squeezing the Presser Foot Lifting Handle.
The Presser Foot should lift approximately 7/8 inch.
• To Check* the Stitching Handle:
(*Always be sure needle foot path is clear of hands, tools etc.)
With machine secured to a stable work bench, Cycle the Needle Foot:
(by pulling the Stitch Handle completely down and then return it
completely to the upright position).
• To Insert Needle -See page 4
• To Thread Machine -See page 6
HS 100-3
GUIDE
PIN
HOLE
3
THREAD
GUIDE
Bolt
This Tippmann "BOSS
®
" hand stitcher sewing machine is surrendered by
Tippmann Industrial Products, Inc., with the understanding that the purchaser
assumes all liability resulting from unsafe operation. Tippmann Industrial
Products, Inc., shall not be liable for personal injury resulting from the use of
this machine under any circumstances.
All information in this manual is subject to change without notice and in no way
represents a commitment on the part of Tippmann Industrial Products, Inc. We
reserve the right to make changes and improvements to products without
incurring any obligation to incorporate such improvements in products previously
sold.
The ownership of this machine places upon you the total responsibility of its
safe operation. You must observe the same safety precautions as you would any
piece of equipment to assure the safety of not only yourself but everyone around
you.
Outlined here are some general precautions to be aware of: the operator should at
all times use common sense when using this machine and be sure others who may
operate are also familiarized, responsible and safety conscious. Do not attempt to
operate this machine until you have read and are familiar with this manual. Common
sense includes reading, reviewing and understanding these written instructions
before operating or setting up this machine including but not limited to:
• Before changing needles.
• Before threading needles.
• Before changing bobbin.
• Before disassembly of machine. • Before moving machine.
• Do not attempt to operate this machine until it is securely fastened to a sturdy
work surface.
• Do not operate this machine when parts have been removed as damage to the
machine and/or injury to operator may result.
• Keep hands clear of presser foot and needle at all times.
Make .........................................................................................TIPPMANN
Model ............................................................................................ "BOSS
2
"
Type Feed .............................................Needle Feed/Lower Needle Guide
Type Stitch .................................................................................Lock Stitch
Type Bed........................................................................... 3 " Cylinder Bed
Throat Depth ......................................................................................... 6.5"
Stitch Cycle Rate.........Variable - 1 to 100 Stitches (1" to 15"+ per minute)
Presser Foot Clearance ..................................................................7/8 inch
Maximum Sewable Thickness ........................................................3/4 inch
Needle System...............................................................794 Series & 7 x 3
Thread Sizes ................................................................................ 69 to 415
Stitch Length Adjuster.......................................... 4 per inch to 16 per inch
Machine Weight ......................................................................... 25 Pounds
The Tippmann "BOSS" hand stitcher sewing machine is a needle-feed, lock-
stitch machine. The "BOSS" is designed and built to achieve precision quality
stitching, extreme durability of the machine itself and maximum owner
satisfaction for many years.
SPECIFICATIONS
GENERAL DESCRIPTION
SAFETY IS YOUR RESPONSIBILITY!
WARNING / LIABILITY STATEMENT SETUP INSTRUCTIONS
