TENSION
ADJUSTOR
SCREW
(FLATHEAD)
12
NEEDLE THREAD
A PERFECTLY LOCKED STITCH
results with upper and lower
tensions balanced so that needle
and bobbin threads are drawn into
material equally.
NEEDLE THREAD
BOBBIN THREAD
NEEDLE THREAD IS NOT BEING
DRAWN INTO MATERIAL
Needle thread tension may be to
tight.
• Lower needle thread tension by
adjusting the Primary Tensioner.
- Turn the Primary Tensioner
adjusting nut counterclockwise
to lesson the needle thread tension.
NEEDLE THREAD IS BEING
DRAWN THROUGH MATERIAL
Needle thread tension may be too
loose.
• Tighten needle thread tension by
adjusting the Primary Tensioner.
- Turn the Primary Tensioner
adjusting nut clockwise
to
increase the needle thread tension.
NEEDLE THREAD
BOBBIN THREAD
BOBBIN THREAD
BOBBIN THREAD IS NOT
BEING DRAWN INTO FABRIC
Bobbin thread tension may be
too tight.
• First loosen locking screw.
• Loosen bobbin thread tension by
turning bobbin tension adjustor screw
counterclockwise.
• Tighten locking screw to hold
adjustment.
NEEDLE THREAD
BOBBIN THREAD
BOBBIN THREAD IS BEING
DRAWN THROUGH FABRIC
Bobbin thread tension may be
too loose.
• First loosen locking screw.
• Tighten bobbin thread tension by
turning bobbin tension adjustor
screw clockwise.
• Tighten locking screw to
hold adjustment.
Material
BOBBIN THREAD
NEEDLE THREAD
Material
Material
LOCKING
SCREW
(X-HEAD)
(Recommend
7 X 3 & 794s Series Needles)
After selecting desired thread
and needle point, place thread
through eye of needle and hold
thread as pictured with hands
about 10 inches apart.
If needle does not
slide freely down
the thread —
select larger needle.
Thread ROUND POINT CHISEL POINT
Size 7 x 3 Needle ................ Part # 794s Serv 1 Needle . Part #
69 7 X 3 110 .................. 7x3110 -..................................... -
99 7 X 3 110 .................. 7x3110 -..................................... -
138 7 X 3 130 .................. 7x3110 -..................................... -
207 7 X 3 160 .................. 7x3110 794s Serv 1 160...... SM 53-9
7 X 3 180 .................. 7x3110 794s Serv 1 180...... SM 53-7
7 X 3 200 .................. 7x3110 794s Serv 1 200...... SM 53-4
346 7 X 3 230 .................. 7x3110 794s Serv 1 230...... SM 53-5
415 7 X 3 230 .................. 7x3110 794s Serv 1 230...... SM 53-5
Recommended Thread and Needles for Tippmann Boss
277
NOTE: Round Point Needles Are For General Purpose - Including Leather.
Chisel Point Needles Are Generally Used For Leather.
13
RELATIVE SIZES OF NEEDLES & THREAD
THREAD SPECIFICATIONS

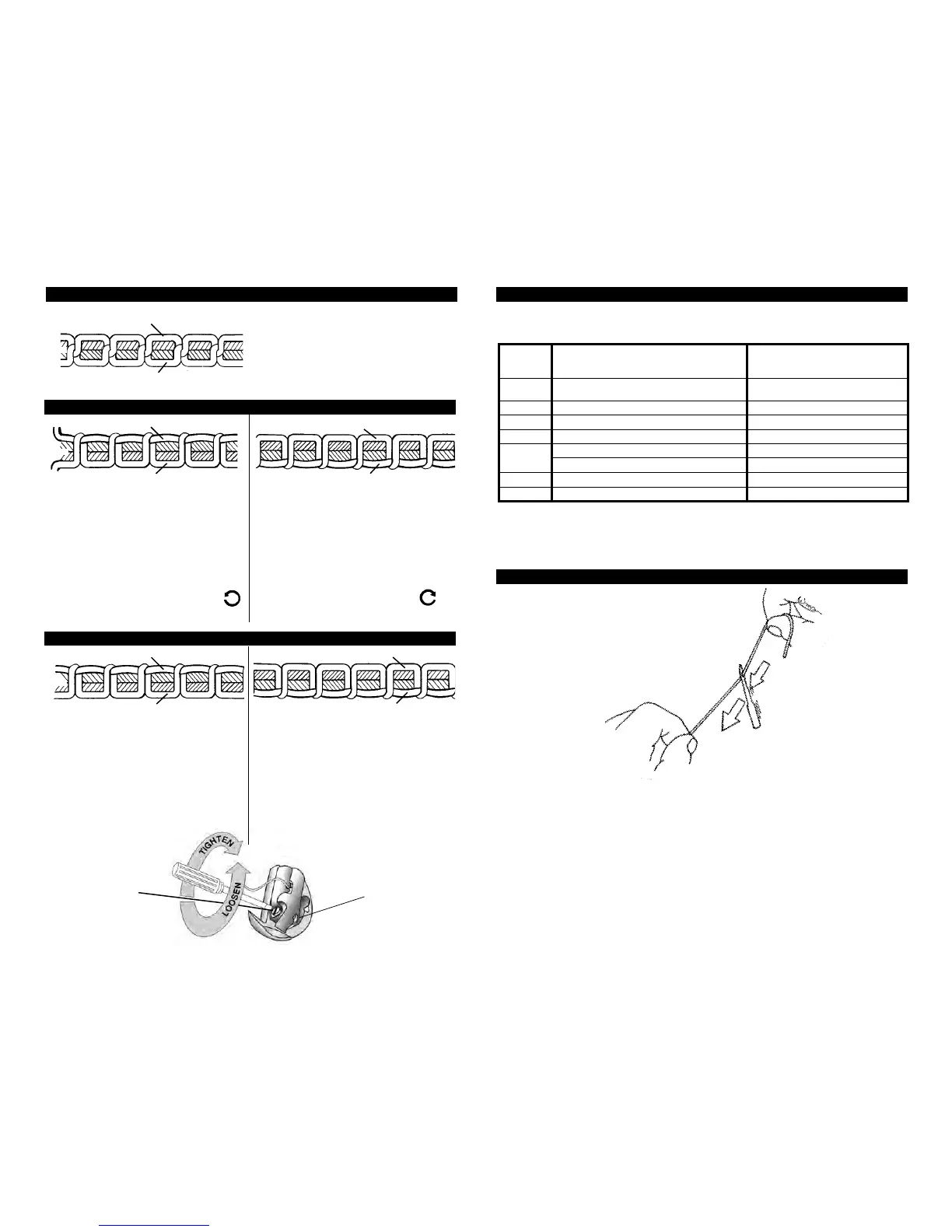

ADJUSTING THE STITCH
NEEDLE THREAD TENSION — ADJUSTMENTS
BOBBIN THREAD TENSION — ADJUSTMENTS
