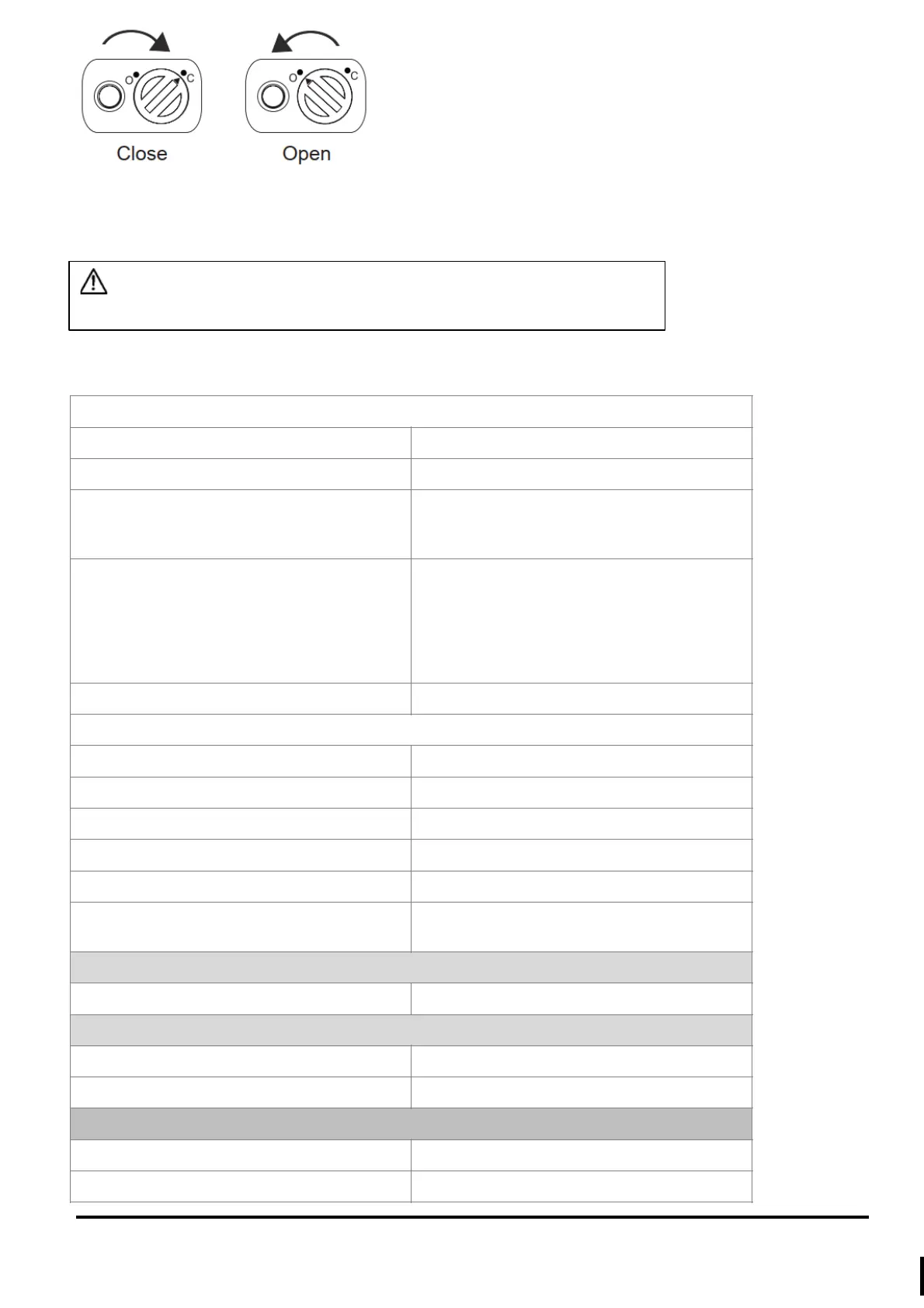

►Pull out the Battery case and replace the batteries.Insert new batteries according to the engraving on the Battery
case.
►Insert the Battery case into the instrument and firmly lock the case again.
8. Specification
Voltage test
Voltage range
12 ~ 690V AC/DC
LED (TIS 851)
Nominal voltage
Europe:
12/24/50/120/230/400/690V
Tolerance
(Threshold voltage)
Light on at more than
7±5V (12V LED)
18 ±5V (24V LED)
37.5±5V (50V LED)
75% ± 5% of nominal voltage
(120/230/400/690V LED)
Response time
<0.5s at 100% of each nominal voltage
LCD
Range resolution (auto-range)
7 ~ 690V/1V
Accuracy (23±5ºC)
±(3%+3) or 5V
Over range indication
All voltage LED light up
Response time
<1s at 90% of each voltage
Peak current is
3.5mA (at 690V)
Internal battery consumption
Approx. 33mA (battery 3V, measuring
690V AC)
High voltage indication
Voltage range
50 ~ 690V AC
Phase rotation test
System
Three-phase system / AC 50/60Hz
Phase range
120 ± 5 degrees
Continuity test
Detection range
0 ~ 550kΩ
Test current
Approx. 1.5µA (battery 3V, 0Ω)
WARNING
Confirm that the Battery case is properly locked prior to measurements.
