8
ASSEMBLY
The assembly instruction will guide you to finish the final assembly of your new mower easily.
1. TOOL REQUIRED
• ½” Ratchet wrench with 13mm, 24mm sleeves
• 17-19 Spanner.
2. TORQUE APPLICATION
Refer to bolt torque in Section 8 Appendix.
3. ASSEMBLY
Cut all zip ties and disassemble shipping crate.
Step 1: Installing wheel frame and fittings Remove the packaging of wheel frame and
fittings. Assemble 2pcs of wheel frames on the mower deck body. Parts: 4pcs of Bolts
M16x95, 8pcs of plain washers 16, 4pcs of spring washers 16, 4pcs of nuts M16, 2pcs of
bolt M8x20, 2pcs of spring washers 8 and 2pcs of large plain washers 8. Tighten nut and
bolt completely.
WARNING
RAISE the mower deck to ensure that the wheel frame can be installed with enough
height.

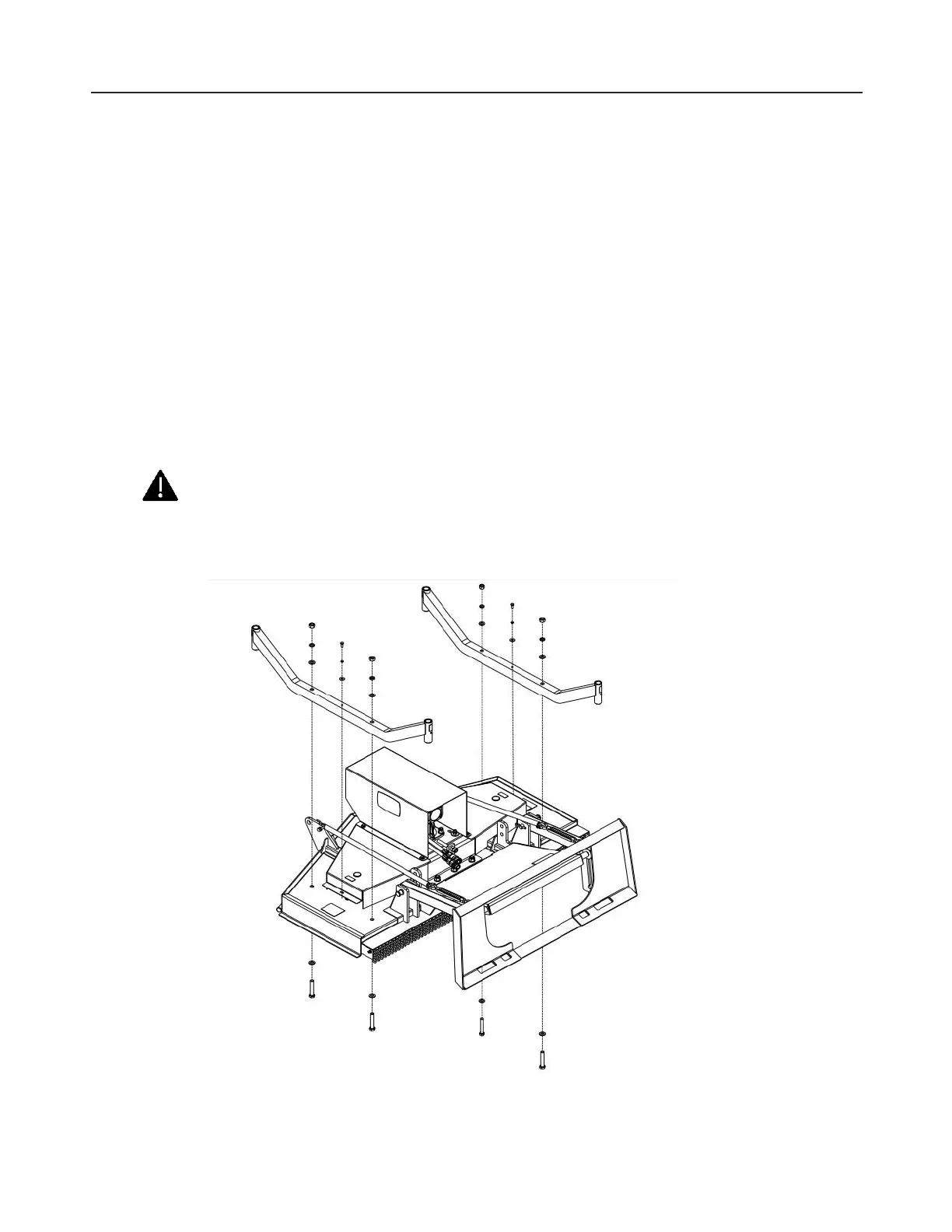

Figure 1-5: Installing Wheel Frame and Fittings
