46 © Titan Tool Inc. All rights reserved.
Item
Article
Articulo
Part No.
Nº de piéce
Pieza No.
English
Description
Français
Description
Español
Descripción
Quantity
Quantite
Cantidad
1 805-372 Cord wrap Embobineur de cordon Soporte para envolver el cable
eléctrico
1
2 9885546 Plug Fiche Tapón 2
3 805-213A Left leg assembly (includes
items 1-2, 7)
Ensemble de patte, à gauche
(comprend articles 1-2, 7)
Ensamblaje de pata, izquierda
(incluye articulos 1-2, 7)
1
4 704-244 Clip Agrafe Abrazadera 1
5 0551434 Screw Vis Tornillo 2
6 700-1041 Drip cup Cuvette d’égouttage Recipiente de goteo 1
7 700-069 Screw Vis Tornillo 4
8 226-001 Nut Écrou Tuerca 1
9 0551524 Right leg assembly (includes
items 2, 4-6, 8 and 10)
Ensemble de patte, à droite
(comprend articles 2, 4-6, 8 et
10)
Ensamblaje de pata, derecha
(incluye articulos 2, 4-6, 8 et 10)
1
10 9805230 Screw Vis Tornillo 2

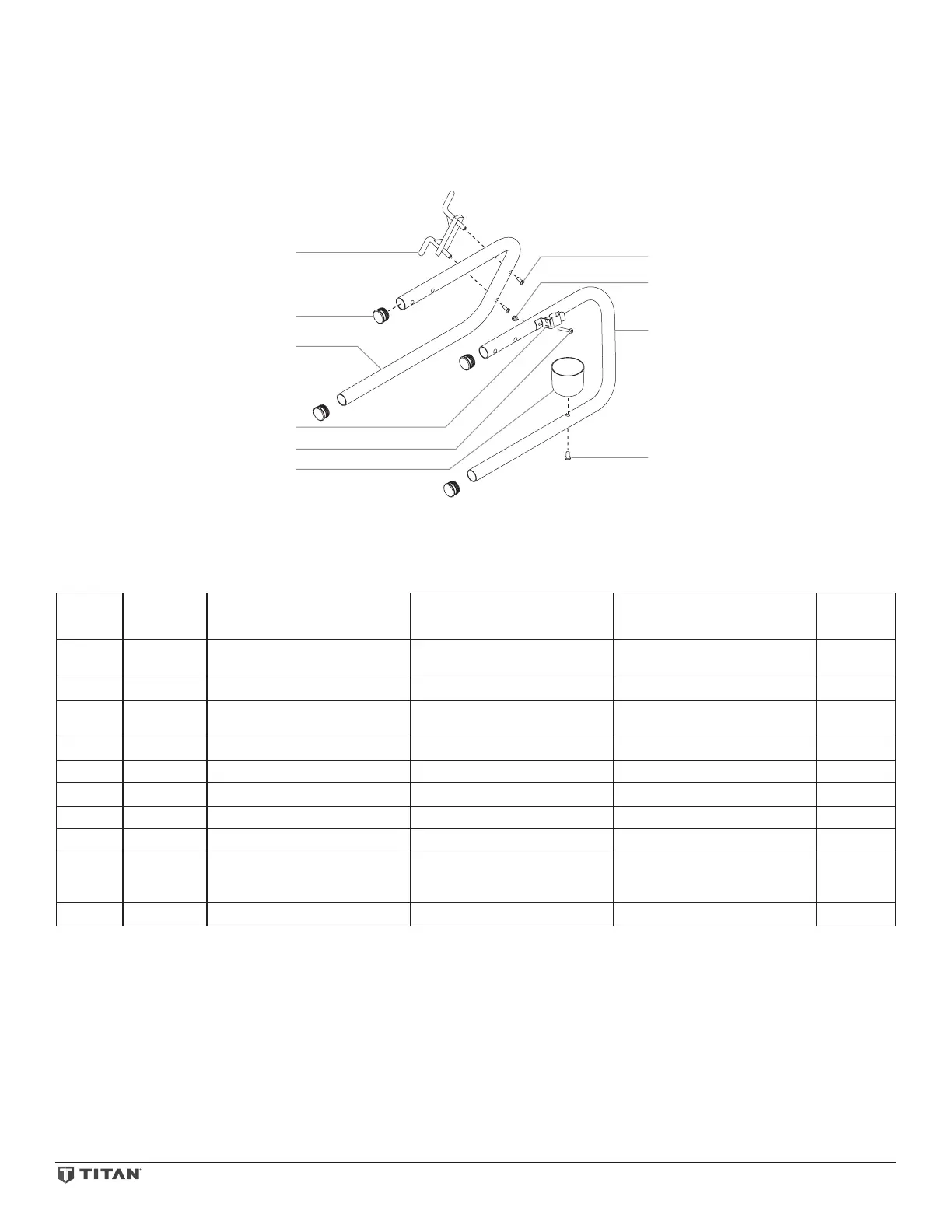

Stand Assembly • Ensemble de support • Ensamblaje de la soporte
2
1
3
5
4
6
7
8
10
9
