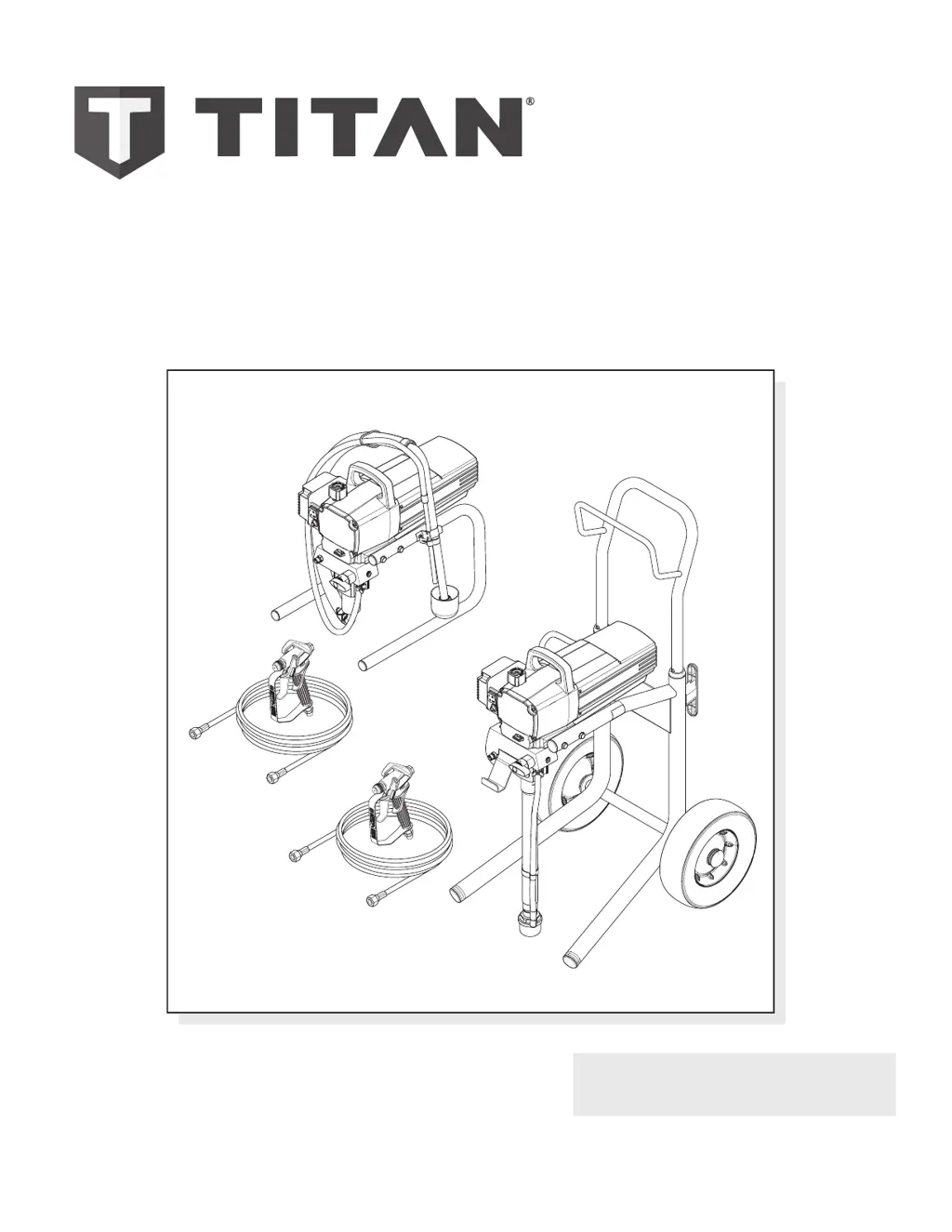

Titan IMPACT 410 - User Manual

Questions and Answers

J
josephmonicaJul 28, 2025
What to do if my Titan IMPACT 410 Paint Sprayer is not working?
- W
  Wanda MckinneyJul 28, 2025
  If your Titan Paint Sprayer isn't working, there are several potential causes: * Ensure the unit is plugged into a working wall outlet. * Check and reset the breaker if it has tripped. * Increase the pressure setting if it's too low. * Inspect the wiring for any faults or looseness. * Allow the motor to cool down if it has overheated. * Consider replacing the ON/OFF switch if it's defective.
Z
ztorresAug 2, 2025
Why does my Titan Paint Sprayer have spray issues?
- B
  Brian HarrisAug 2, 2025
  Spray issues with your Titan Paint Sprayer can stem from various causes: * Ensure the PRIME/SPRAY valve is in the PRIME position. * Check for and repair any air leaks in the siphon tube/suction set. * Clean or replace the pump filter and/or inlet screen if clogged. * Clear any clogs in the siphon tube/suction set. * Replace the spray tip if it's worn or too large; consider using a smaller spray tip. * Adjust the pressure control knob to the correct setting. * Inspect for blockages if material flows from the return hose when the PRIME/SPRAY valve is in the SPRAY position. * Inspect and repair any external fluid leaks. * Replace worn or dirty packings and valve balls if there's an internal fluid section leak. * Replace worn valve seats.
N
njeffersonAug 6, 2025
What causes pressure issues with a Titan IMPACT 410 Paint Sprayer?
- G
  garnerstevenAug 6, 2025
  Pressure problems with your Titan Paint Sprayer can be caused by: * Using the wrong type of airless spray hose. Ensure you're using the correct type. * A worn or oversized spray tip. Replace the spray tip. * Excessive pressure. Lower the pressure setting.
B
brian81Aug 11, 2025
What to do if Titan Paint Sprayer motor powers but fails to rotate?
- G
  Glenn AguilarAug 11, 2025
  If the motor of your Titan Paint Sprayer powers on but doesn't rotate, it could be due to: * A worn upper packing. Replace the upper packing. * A worn piston rod. Replace the worn piston rod.
J
Johnathan LopezAug 16, 2025
How to resolve fluid delivery issues with my Titan Paint Sprayer?
- Z
  zgarciaAug 16, 2025
  If you're experiencing fluid delivery issues with your Titan Paint Sprayer: * Ensure you're using an appropriate spray tip for the material being used; the current tip might be too large. * Adjust the pressure setting to the correct level. * Check for clogs and ensure proper fluid delivery. * Thin the material before spraying if it's too viscous.
A
Ashley EvansAug 21, 2025
Why is my Titan IMPACT 410 experiencing voltage issues?
- J
  Jacqueline BirdAug 21, 2025
  Voltage issues with your Titan Paint Sprayer can arise if: * The pressure adjustment is too low. Increase the pressure adjustment. * There's an improper voltage supply. Ensure the correct voltage is supplied to the unit.

Summary

Troubleshooting

Unit Not Working

Common issues like power, pressure, and connections.

Unit Not Priming

Problems with the PRIME/SPRAY valve, siphon tube, or filters.

Pressure Issues

Unit not building/holding pressure or excessive pressure.

Fluid Leaks and Spray Pattern

Leaks in fluid section or poor spray pattern causes.

Unit No Power

Issues related to power supply or low pressure settings.

Main Assembly and Parts List

Main Assembly Diagram

Exploded view of the main sprayer unit components.

Main Assembly Parts List

Detailed list of parts for the main assembly with part numbers.

Fluid Section Assembly

Fluid Section Assembly Diagram

Exploded view of the fluid section with assembly notes.

Fluid Section Parts List

Detailed list of parts for the fluid section with part numbers.

Drive Assembly

Drive Assembly Diagram

Exploded view of the drive assembly components.

Drive Assembly Parts List

Detailed list of parts for the drive assembly with part numbers.

Motor Assembly

Motor Assembly Diagram and Parts

Exploded view and parts list for the motor assembly.

Cart Assembly

Cart Assembly Diagram and Parts

Exploded view and parts list for the cart assembly.

Stand Assembly

Stand Assembly Diagram and Parts

Exploded view and parts list for the stand assembly.

Electrical Schematic

Electrical Schematic Diagram

Diagram showing the electrical connections and components of the sprayer.

Electrical Work Safety

Important safety note regarding electrical work.

Accessories

Spray Guns and Tips

List of spray guns and spray tips.

Filters and Extensions

List of filters and extension poles.

Hoses and Fittings

List of airless hoses, connectors, and fittings.

Lubricants and Service Kits

List of lubricants, cleaners, and optional service kits.

Product Registration and Serial Number

Product Registration

Instructions for registering the product online.

Serial Number Location

Information on where to find the serial number on the unit.

Warranty Information

Warranty Terms and Conditions (English)

Detailed warranty statement in English.

Warranty Terms and Conditions (French)

Detailed warranty statement in French.

Warranty Terms and Conditions (Spanish)

Detailed warranty statement in Spanish.

Titan IMPACT 410 Specifications
