Set up
01
02
03
04
05
06

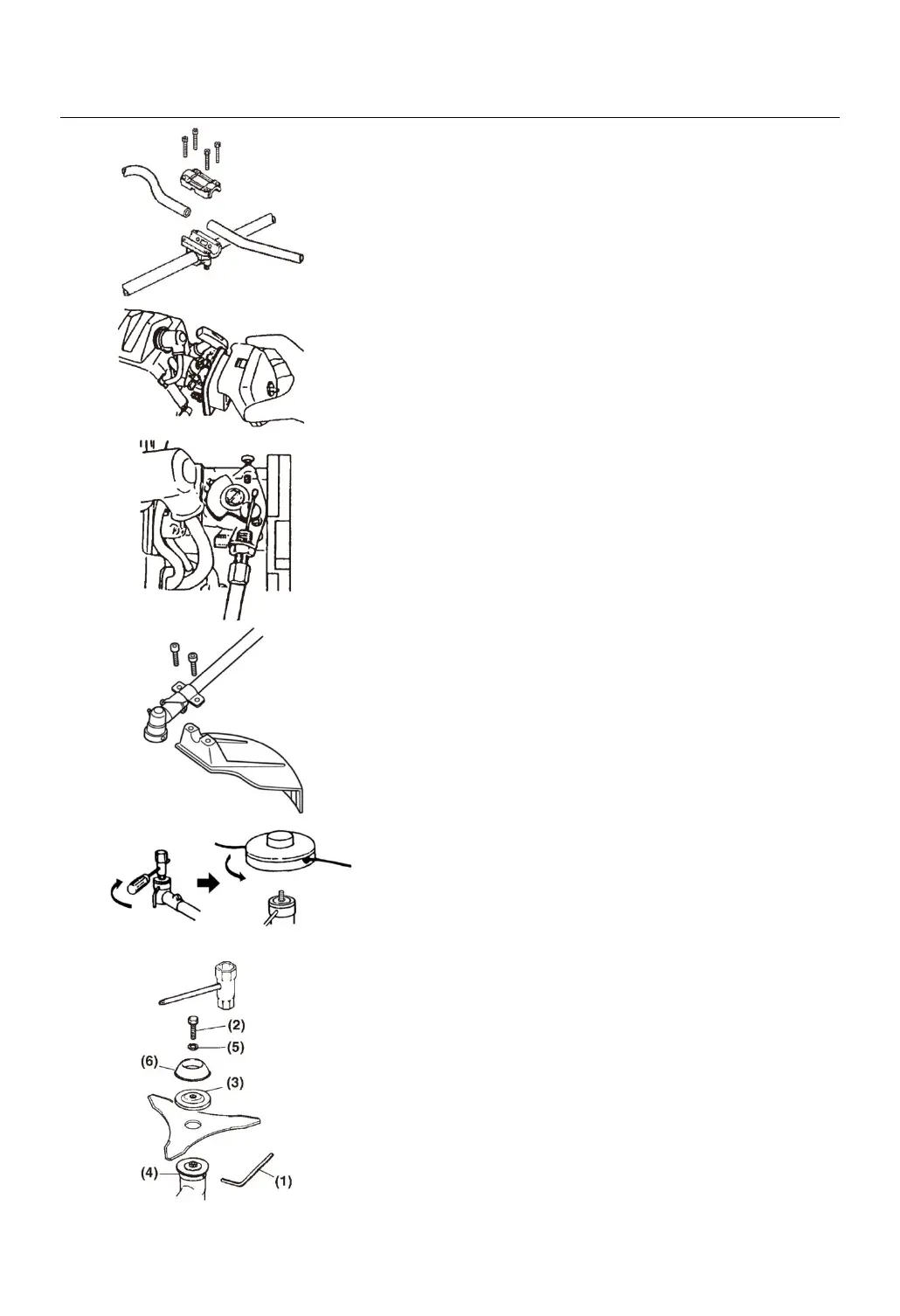

■ INSTALLING HANDLE (01)
1. Loosen the 4bolts on the upper cap and insert
the handles equally. Retighten the bolts.
2. Put the handle assembly into the bracket and
put the upper cap over it. Tighten the cap
securely.
■ CONNECTING THROTTLE WIRE (02, 03)
1. Remove the air cleaner cover.
2. Connect the end of the throttle wire to the
joint on the top of the carburetor.
■ INSTALLING PROTECTION SHIELD (04)
Attach the protection shield with the bolts
combined to the shaft tube while inserting the
spacer between the shield and the shaft tube.
■ INSTALLING CUTTING HEAD (05)
1. While locking the gear shaft by inserting the
attached hexagon bar into the upper holder and
the housing.
2. Rotate the cutting head to engage threads.
Hand-tighten it securely.
■ INSTALLING CUTTING BLADE (06)
1. Put the angled bar (1) into the side holes of
the inner holder (4) and the angle transmission.
2. Remove the blade bolt (Lefthanded) (2) and
the outer holder (3) from the angle transmission.
3. Put the blade onto the inner holder (4). Make
the marked side face the holder (4).
4. Put the outer holder (3) onto the gearshaft
making the recessed side face the blade.
5. Fasten the blade by the blade bolt (2) with the
spring washer (5) and the bolt cover (6).
