Maintenance
In order to prolong the service life of the product, we suggest cleaning the air
>
> Unlock the fasteners (5) and remove the motor unit (4) from the collection
container (9).
> Turn the motor unit (4)
upside down for easy
accessing the air inlet (4a) if
necessary.
> Rotate the basket (4c)
anticlockwise until the
tongues (4d) are disengaged
from the grooves (4e).
> Remove the basket (4c)
from the air inlet (4a)
(Fig. 16)
>
a solid surface to remove
dust.
1.
2.
4a
4c
4e
4d
4b
5
4

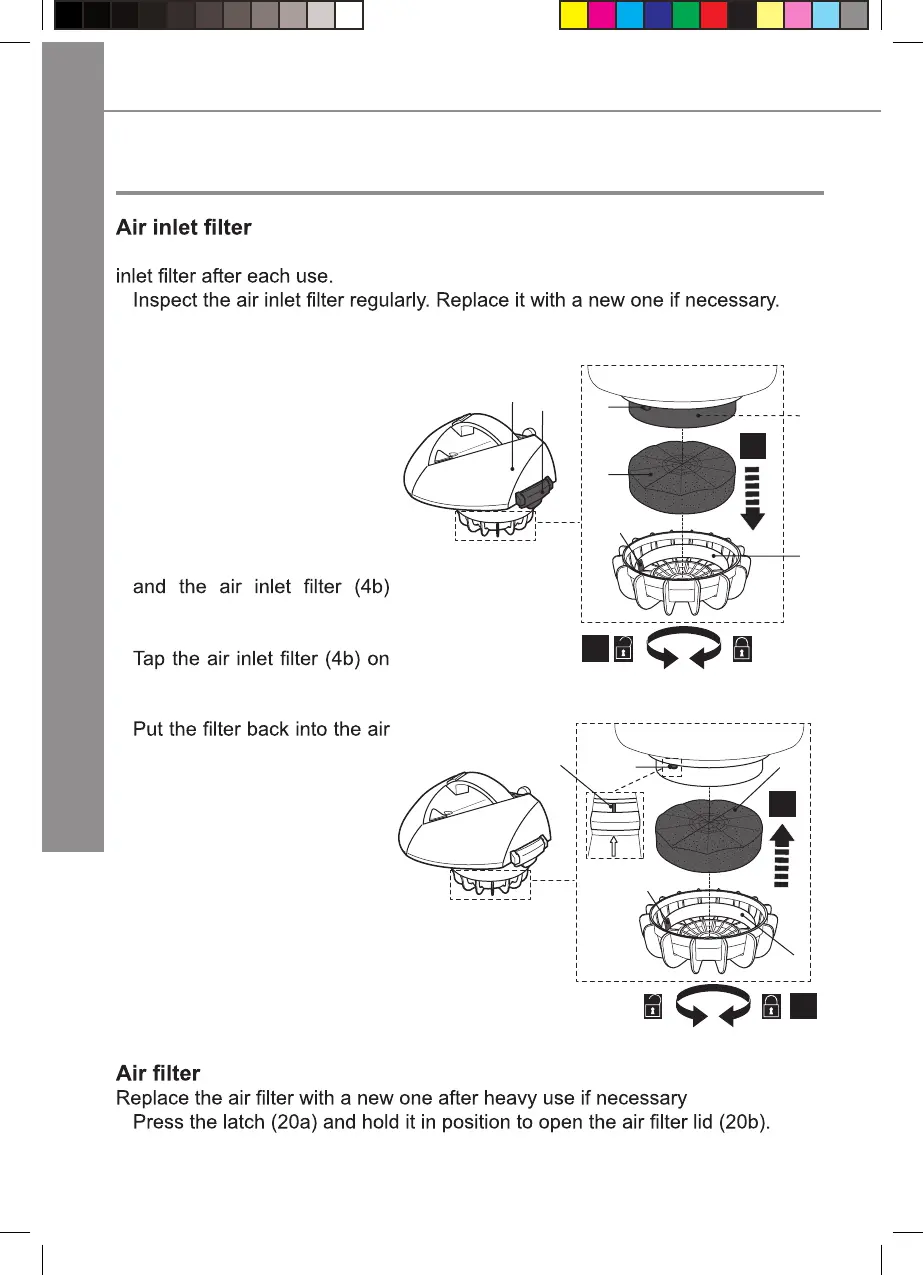

Fig. 16
>
inlet.
> Align the arrow with the pin
(4f) and reattach the basket
(4c). Rotate the basket
clockwise until the tongues
(4d) are properly engaged
with the grooves (4e)
(Fig. 17). Place the motor
unit (4) onto the collection
container (9) and secure
it with the fasteners (5)
afterward.
2.
1.
4c
4b
4e
4d
4f
Fig. 17
.
>
