49
TTCSP49
In more detail . . .
NOTE: The condition of the oil passages can be easily checked. If the passages
are clear, the chain will automatically give off a spray of oil within seconds of
the product starting. Your product is equipped with an automatic oiling system.
3. Check the drive sprocket. If it is worn or damaged due to strain, have it replaced by
an authorised service agent.

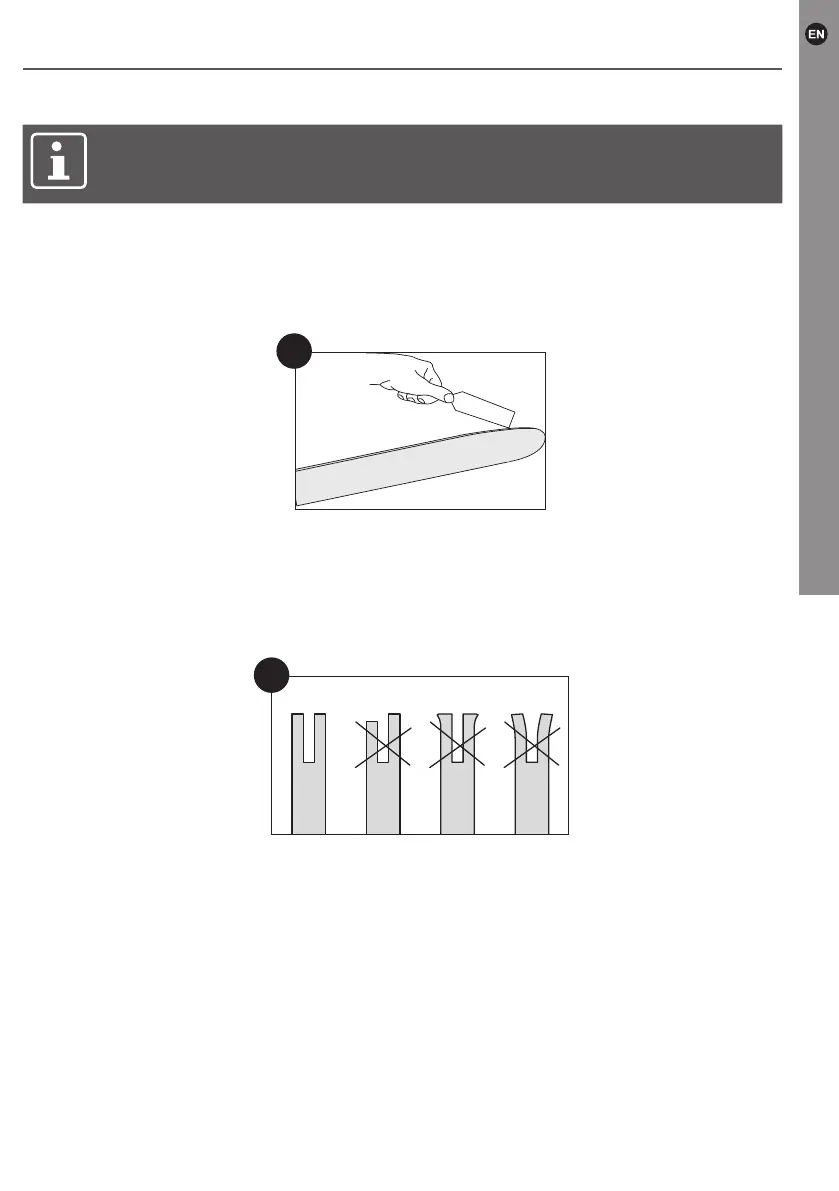

4. Remove any dirt accumulated inside the guide bar (2) slot using the putty knife (not
provided) (Fig. 42).
42
5. Check the guide bar “rail” for wear: Hold a ruler (straight edge) against the side of
the guide bar (2) and “cutter side plates”. If there is a gap between the ruler and
guide bar (2) the guide bar “rail” is normal. If there is no gap (ruler ush against the
side of the guide bar (2) the guide bar “rail” is worn and needs to be replaced with
a new one of the same type (Fig. 43).
43
6.
Check the saw chain (3) for possible wear and damages. Replace it with a new
one if required. Experienced user can sharpen a dull saw chain (see section “Saw
chain sharpening” below).
7.
Ret the saw chain (3) and the guide bar (2) as described under section “Assembly”.
Care and maintenance
