Care and maintenance
WARNING!
Only sharpen the saw chain yourself if you are trained
and have experience! Use proper tools to sharpen the saw chain!
2. The height difference between the tooth and the ridge is the cutting depth.
When sharpening the saw chain (11) you have to consider the following
points (Fig. 42).
- File angle
- Cutting angle
- File position
- Diameter of round le
- File depth
Right-hand
cutter
Left-hand
cutter
Bumper tie
strap
Bumper drive link
Tie strap
Saw chain direction

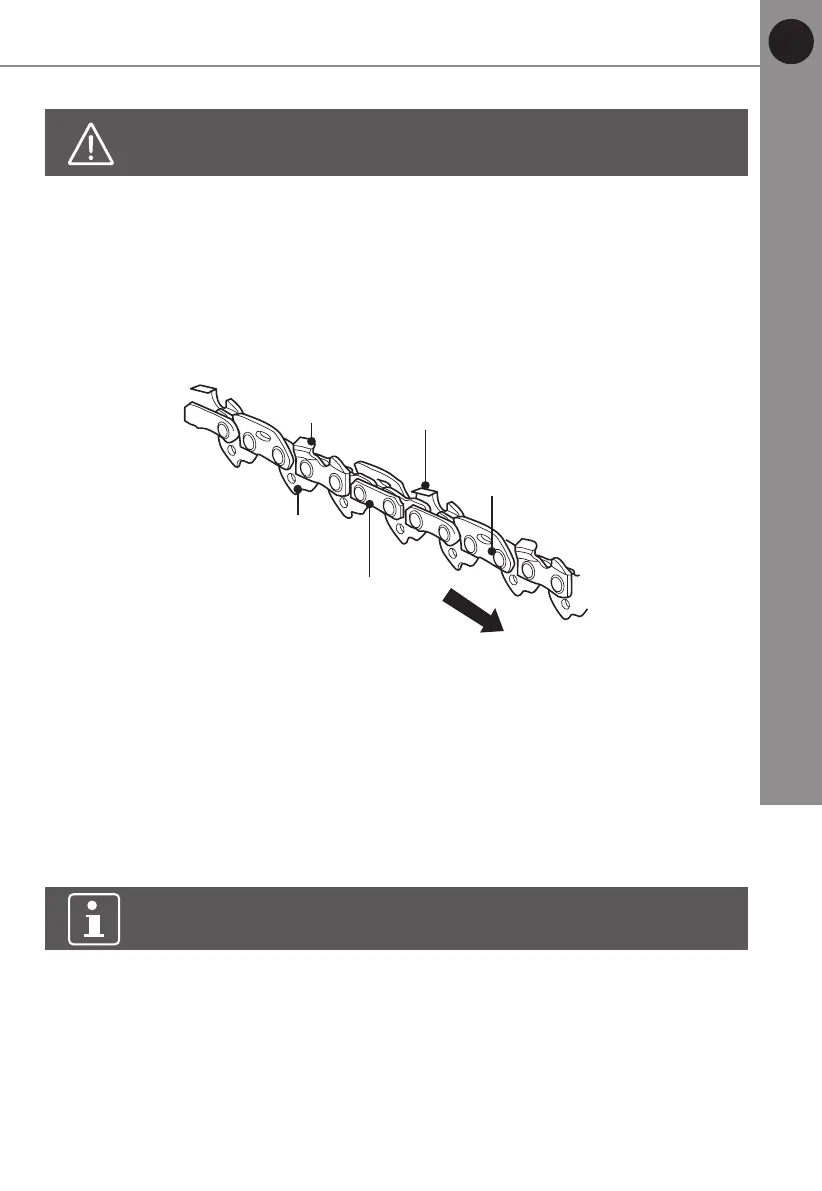

Fig. 42
3. To sharpen the chain proceed as follows:
Use protective gloves.
Ensure the chain is correctly tensioned.
Engage the chain brake to lock the chain on the bar.
4. Use a chain le, whose diameter is 1.1 times the cutting tooth depth. Make
sure 20 % of the le diameter is above the cutter’s top plate.
NOTE:
A le guide is available from most reputable tool merchants
and is the easiest way to hold the le at the correct position.
5. File at an angle perpendicular to the bar, and at an angle of 25° to the
direction of travel (Fig. 43).
