─ 12 ─
Assembly

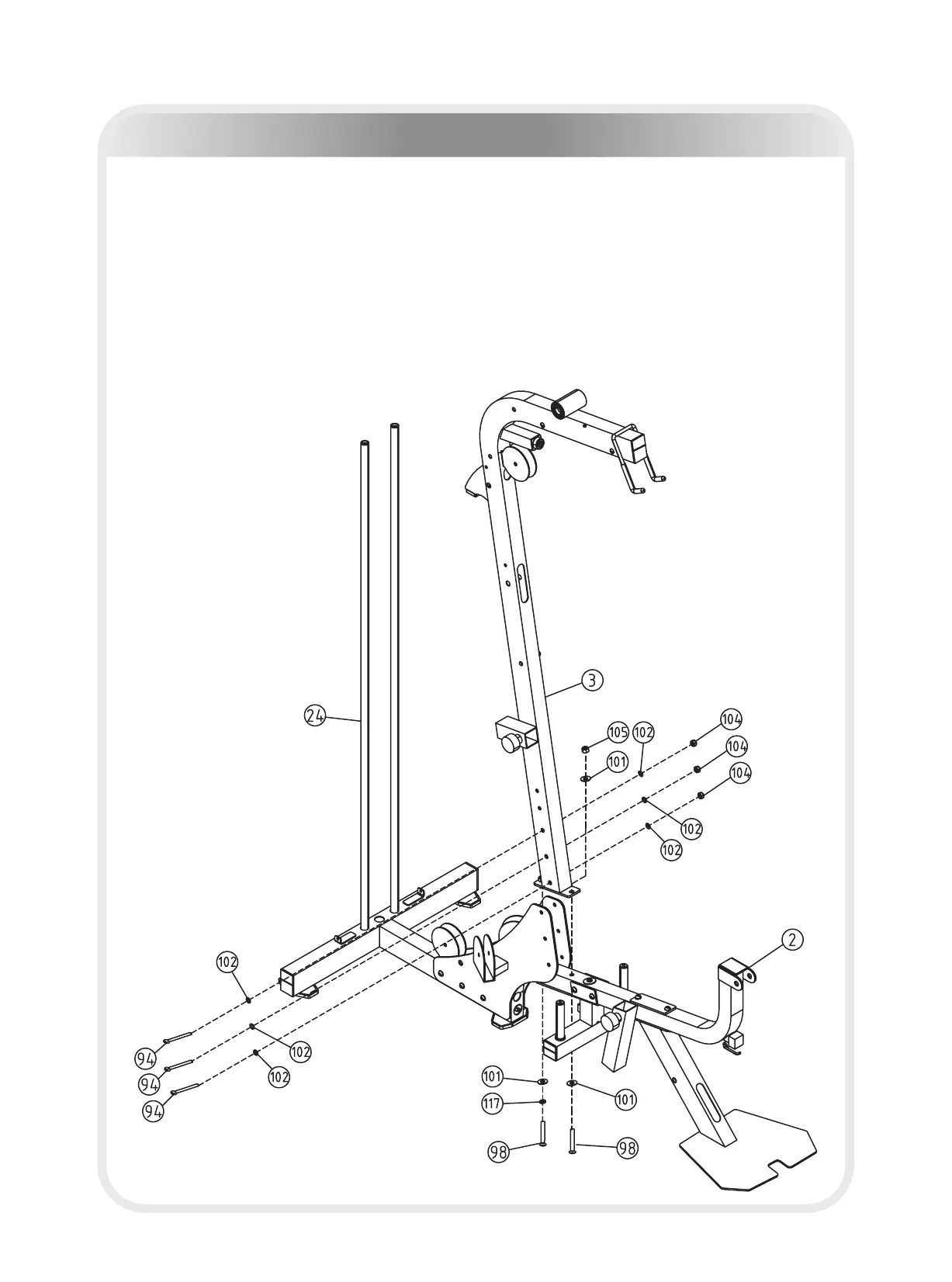

Step 3
Install the Main Upright (#3) onto Seat Pad Support Receptacle (#2). Secure it
in place using:
three M10 Nylon Lock Nut (#104) six Φ11*Φ20*2 Flat Washer (#102)
three M10*75 BHCS (#94) two M12*80 BHCS (#98)
one Φ12 Spring Washer (#117) three Φ13*Φ24*1.5 Flat Washer (#101)
one M12 Nylon Lock Nut (#105)
Note: Hand tighten bolts and Νylon Lock nuts until machine is fully assembled.
