─ 13 ─

Assembly

Step 4

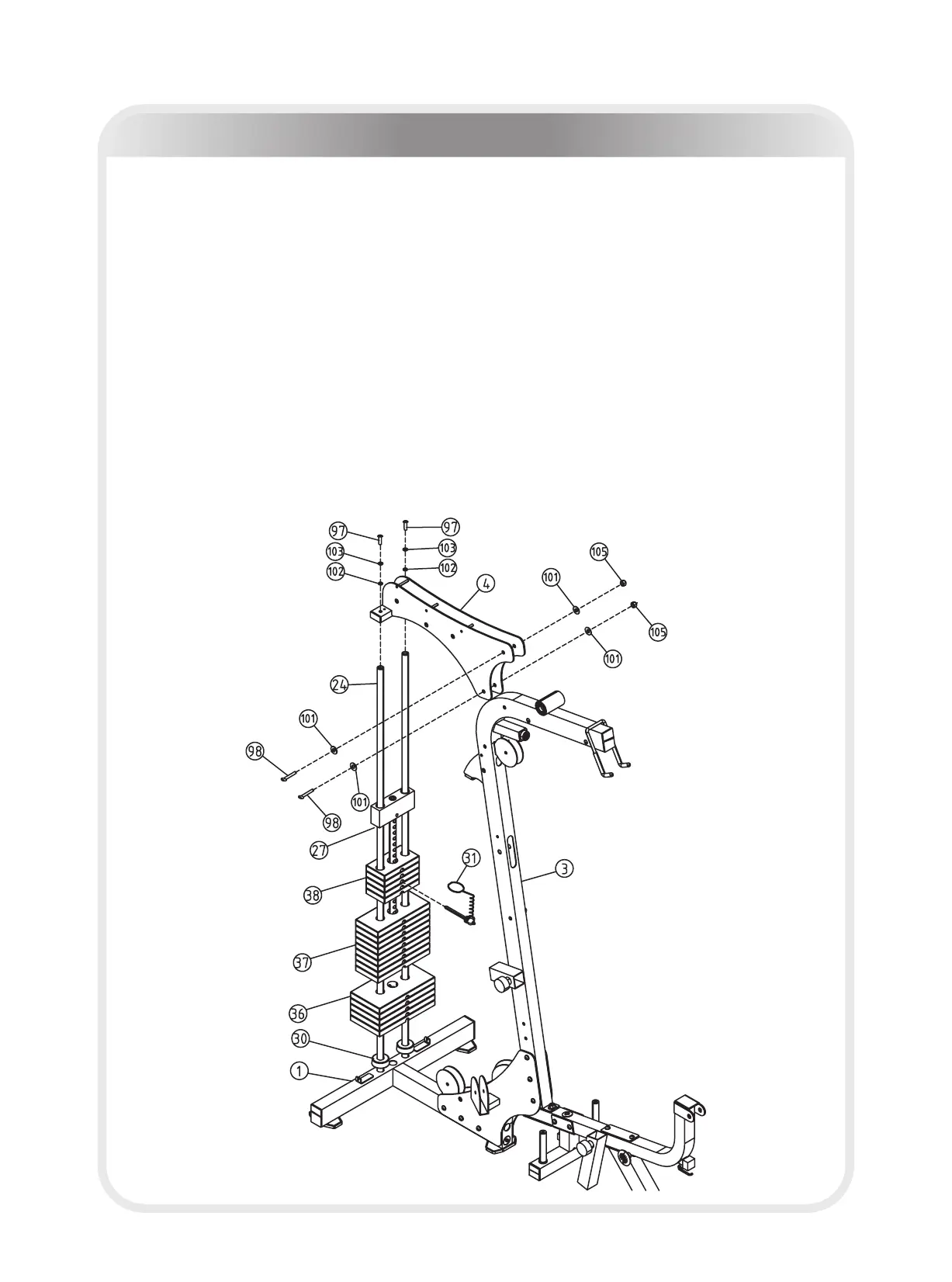

1. Slide one Weight Stack Bumper (#30) down each Guide Rod (#24). Next, slide

the weight plates down the Guide Rods (#24) in this order - five 15lb Plates

(#36), nine 10lb Plates (#37), five 5lb Plates (#38), and the Top Plate (#27).

2. Insert the Main Top Beam (#4) onto the two Guide Rods (#24) and the Main

Upright (#3).

3. Secure Main Top Beam (#4) to Main Upright (#3) using:

two M12 Nylon Locknut (#105) four Φ13*Φ24*1.5 Flat Washer (#101)

two M12*80 BHCS (#98)

4. Attach the Main Top Beam (#4) to the two Guide Rods (#24) using:

two Φ11*Φ20*2 Flat Washer (#102) two Φ10 Spring Washer (#103)

two M10*25 BHCS (#97)

5. Attach Weight Pin (#31) to Weight Stack.

Note: Hand tighten bolts and Νylon Lock nuts until machine is fully assembled.
