Assembly

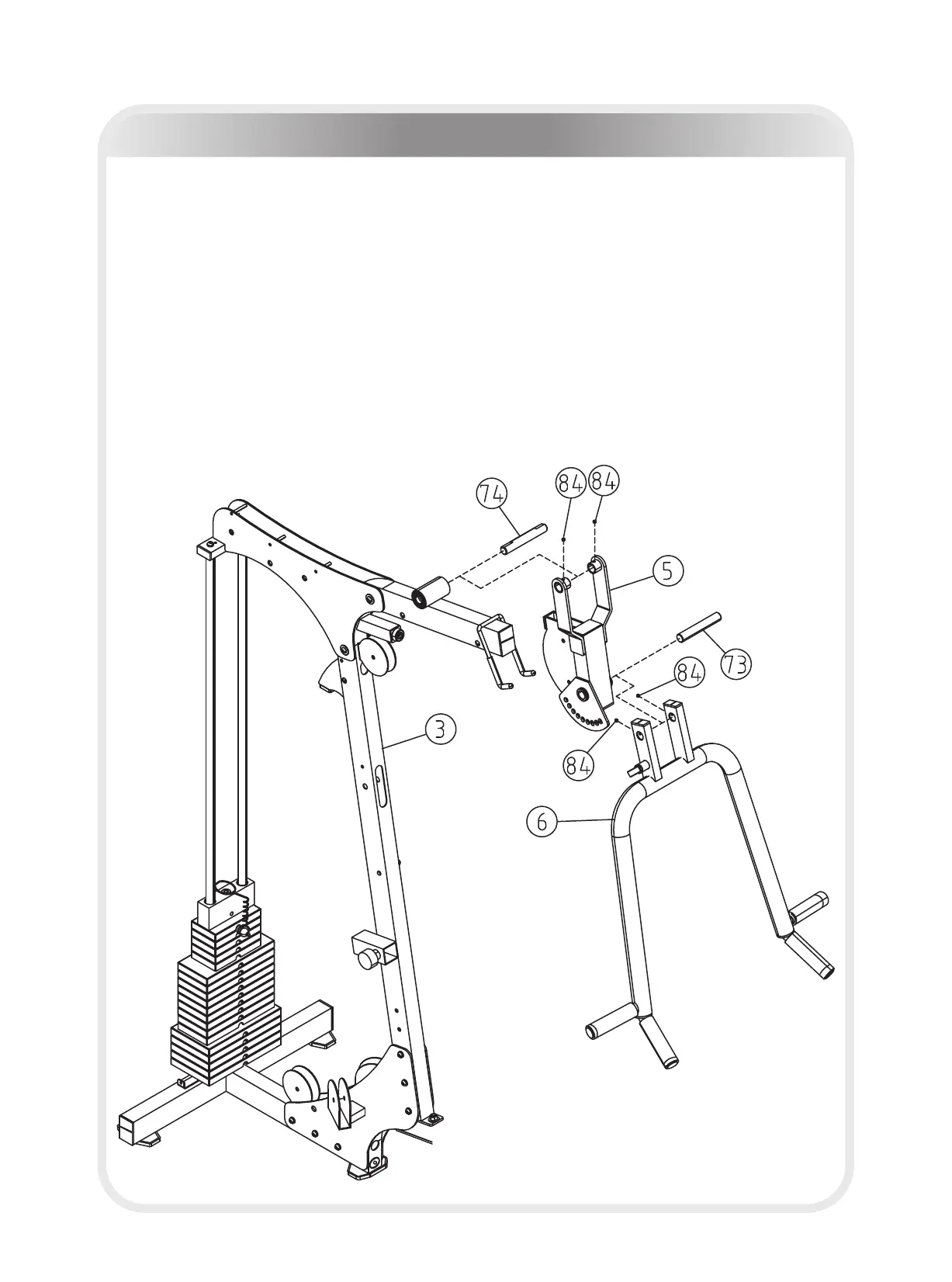

Step 5
1. Attach Press Arm Support (#5) to Main Upright (#3) by aligning the holes and
sliding the Shaft (#74) through the holes of the Press Arm Support (#5).
2. Secure the Shaft (#74) to the Press Arm Support (#5) using two M8*6 Socket
Set Screw (#84).
3. Install Press Arm (#6) to Press Arm Support (#5) by aligning the holes and
sliding the Shaft (#73) through the holes of the Press Arm (#6).
4. Secure the Shaft (#73) to the Press Arm (#6) using two M8*6 Socket Set
Screw (#84).
Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
