─ 15 ─

Assembly

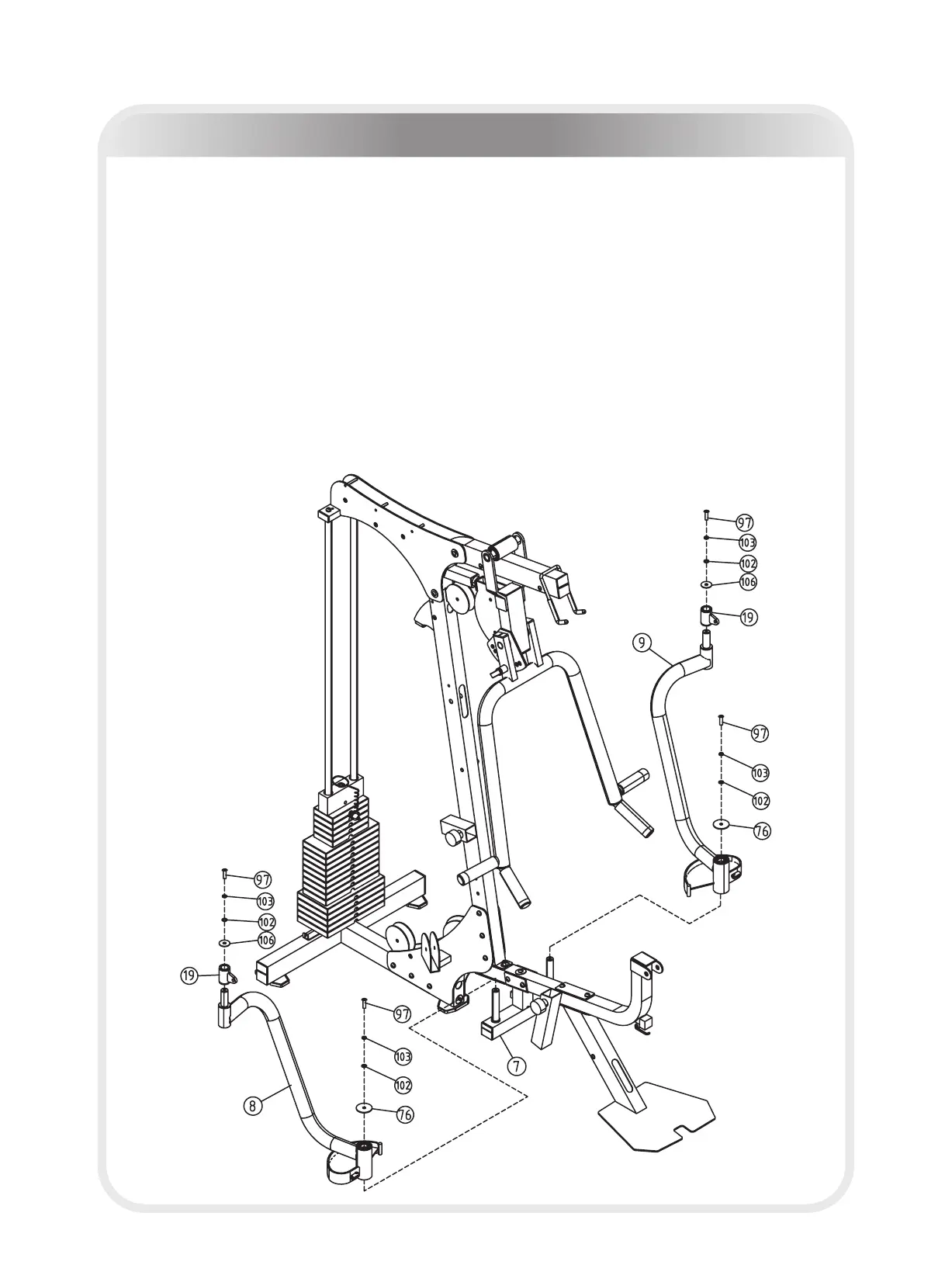

Step 6

1. Slide the Right Pec Dec Arm (#8) on to the shaft of the Pec Dec Mount (#7).

Secure the arm in place using:

one Φ56.5*Φ10.5*5 Big Washer (#76) one Φ11*Φ20*2 Flat Washer (#102)

one Φ10 Spring Washer (#103) one M10*25 BHCS (#97)

2. Slide Pec Dec Handle Bar (#19) onto the top of the Right Pec Dec Arm (#8)

and secure using:

one Chrome Washer (#106) one Φ11*Φ20*2 Flat Washer (#102)

one Φ10 Spring Washer (#103) one M10*25 BHCS (#97)

Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.

3. Repeat this step to complete the Left Pec Dec assembly.
