TKO 6610 - Step 7: Install Leg Hold Frames

─ 16 ─
Assembly
Step 7

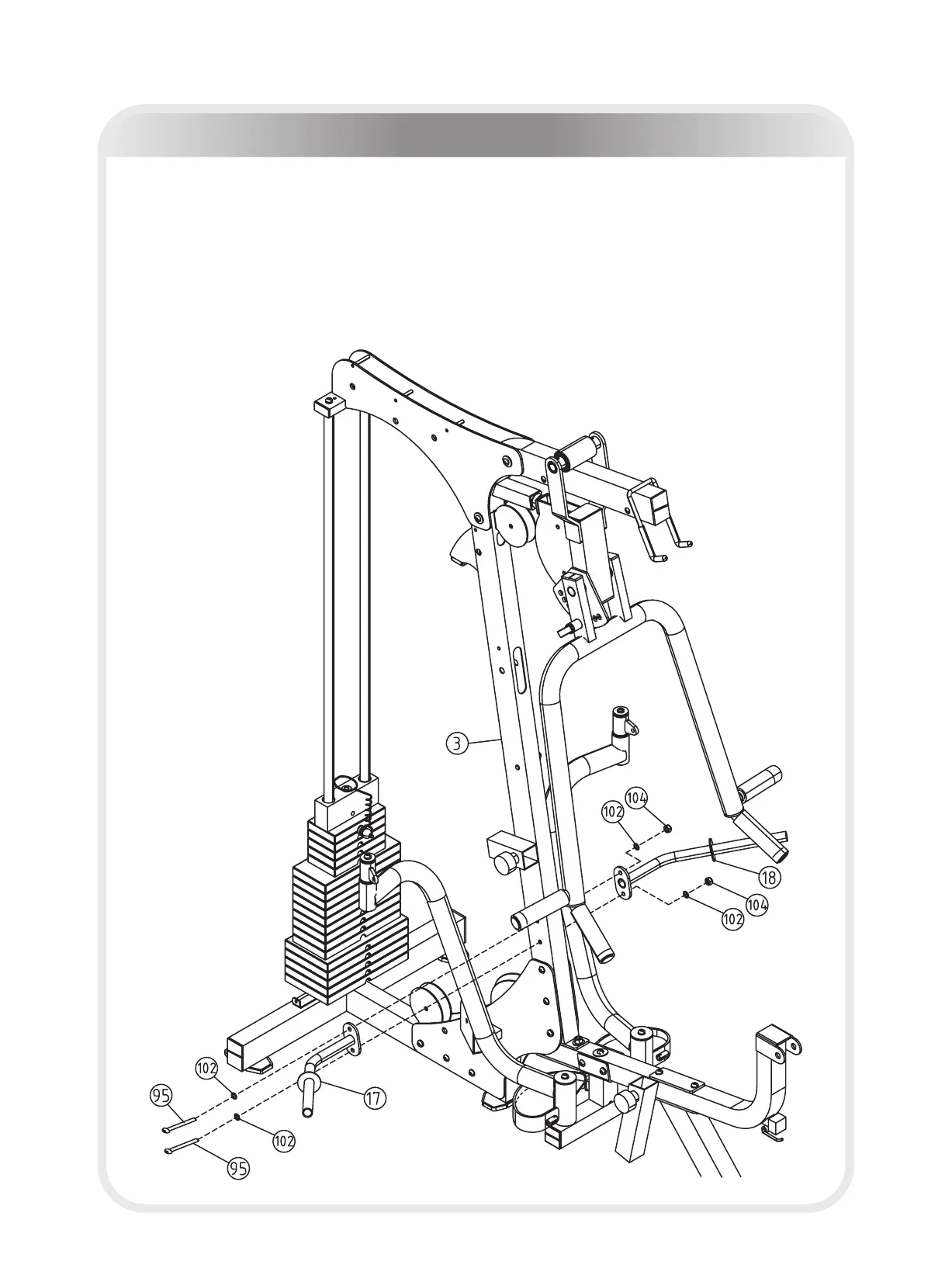

Install the Right and Left Hold Leg Frames (#17 & #18) to Main Upright (#3) and
secure using:
two M10 Nylon Locknut (#104) four Φ11*Φ20*2 Flat Washer (#102)
two M10*80 BHCS (#95)
Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
