─ 17 ─
Assembly

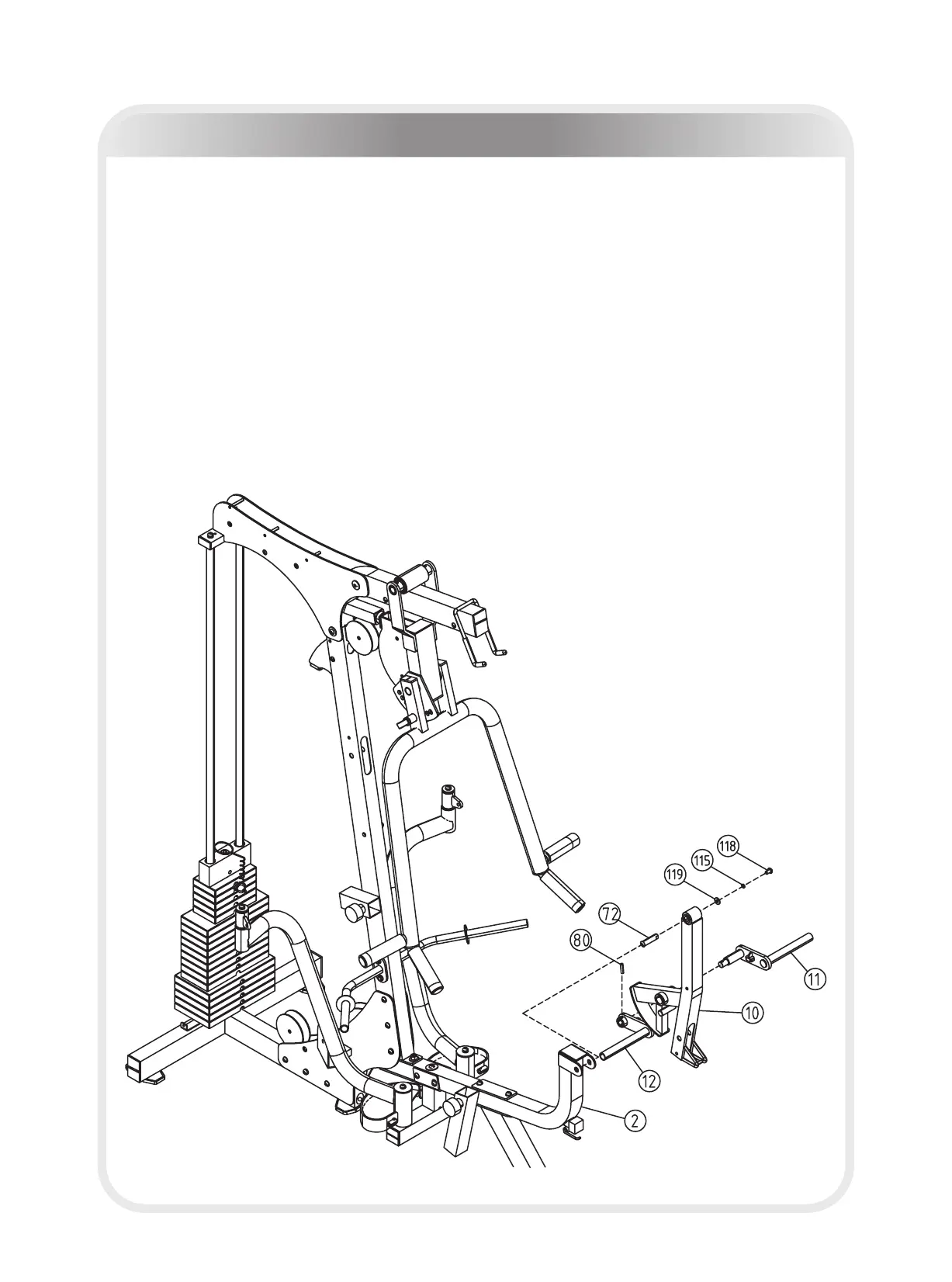

Step 8
1. Slide the Shaft (#72) into the Leg Extension Lever (#10). Attach Leg Extension
Lever (#10) to Seat Pad Support Receptacle (#2) and secure using:
one Φ9*Φ22*2 Flat Washer (#119) one Φ8 Spring Washer (#115)
one M8*15 BHCS (#118)
2. Slide Foam Frame w/Shaft (#11) through the Leg Extension Lever (#10) and
attach the Foam Frame w/o Shaft (#12) to the other side. Insert the Slip
Tension Pin (#80) through the hole where the two foam frames meet.
Note: You may need to use a rubber mallet to install Slip Tension Pin (#80).
Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
To Next Page
