Assembly

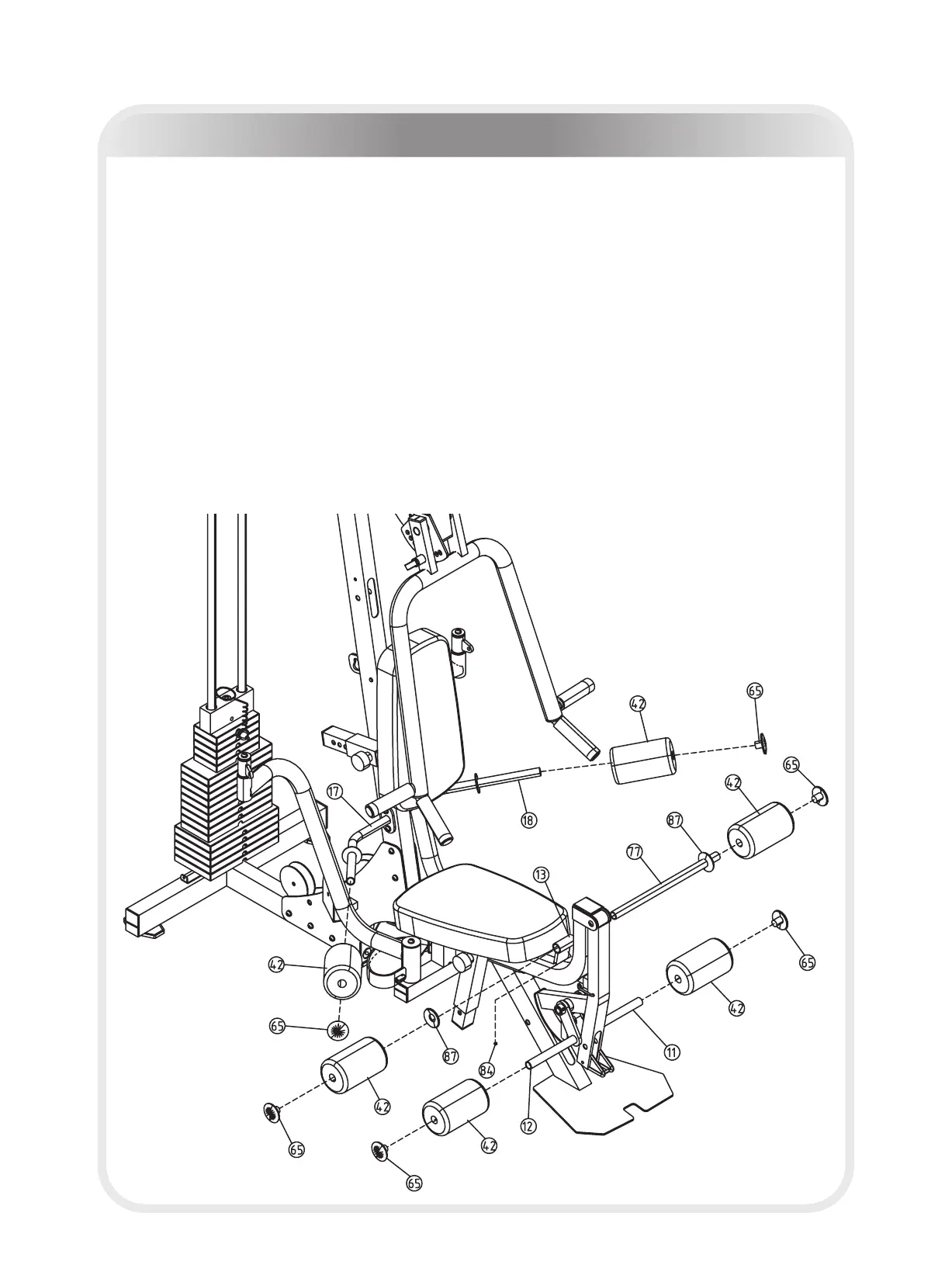

Step 10
1. Slide two Upholstered Roller Pads (#42) onto Foam Frames (#11 & #12) and
secure using two Big Plugs (#65).
2. Slide the Long Foam Tube (#77) through the hole in Seat Pad Support (#13)
and secure using one M8*6 Socket Set Screw (#84). Slide two Plastic
Washers (#87) onto each end of Long Foam Tube (#77). Next, slide two
Upholstered Roller Pads (#42) onto each side of Long Foam Tube (#77) and
secure using two Big Plugs (#65).
3. Slide two Upholstered Roller Pads (#42) onto the Leg Hold Frames (#17 &
#18) and secure using two Big Plugs (#65).
Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
