Setup
Setup
Installation
CAUTION: Before you begin, make sure your mixer-amplifier is disconnected from the power
source, with the power switch in the OFF position and all level controls turned completely
down(counterclockwise)
You may stack mixer-amplifiers without using a cabinet or you may place a single mixer-amplifier
on a surface with 12-inches (about 30cm) of air space around the unit for convection cooling.
When using an equipment rack, do not mount units directly on top of each other. Allow 2U be-
tween units for convection cooling. The side walls of the rack should be a minimum of 2-inches
(about 5cm) away from the amplifier sides, and the back of the rack should be a minimum of
4-inches (about 10cm) from the mixer-amplifier rear panel.
Installation
1. Locate the two rack ears and six rack-ear screws supplied.
2. Place a rack-ear flush with the right front of the chassis.
3. Insert a screw into the bottom hole of the rack-ear and chassis. Screw it in.
4. Insert a screw into the mid hole of the rack-ear and chassis. Screw it in
5. Insert a screw into the top hole of the rack-ear and chassis. Screw it in.
6. Repeat steps 2 to 5 for the left side of the chassis.
7. Remove the four legs from bottom of unit.
8. Please refer to Figure .

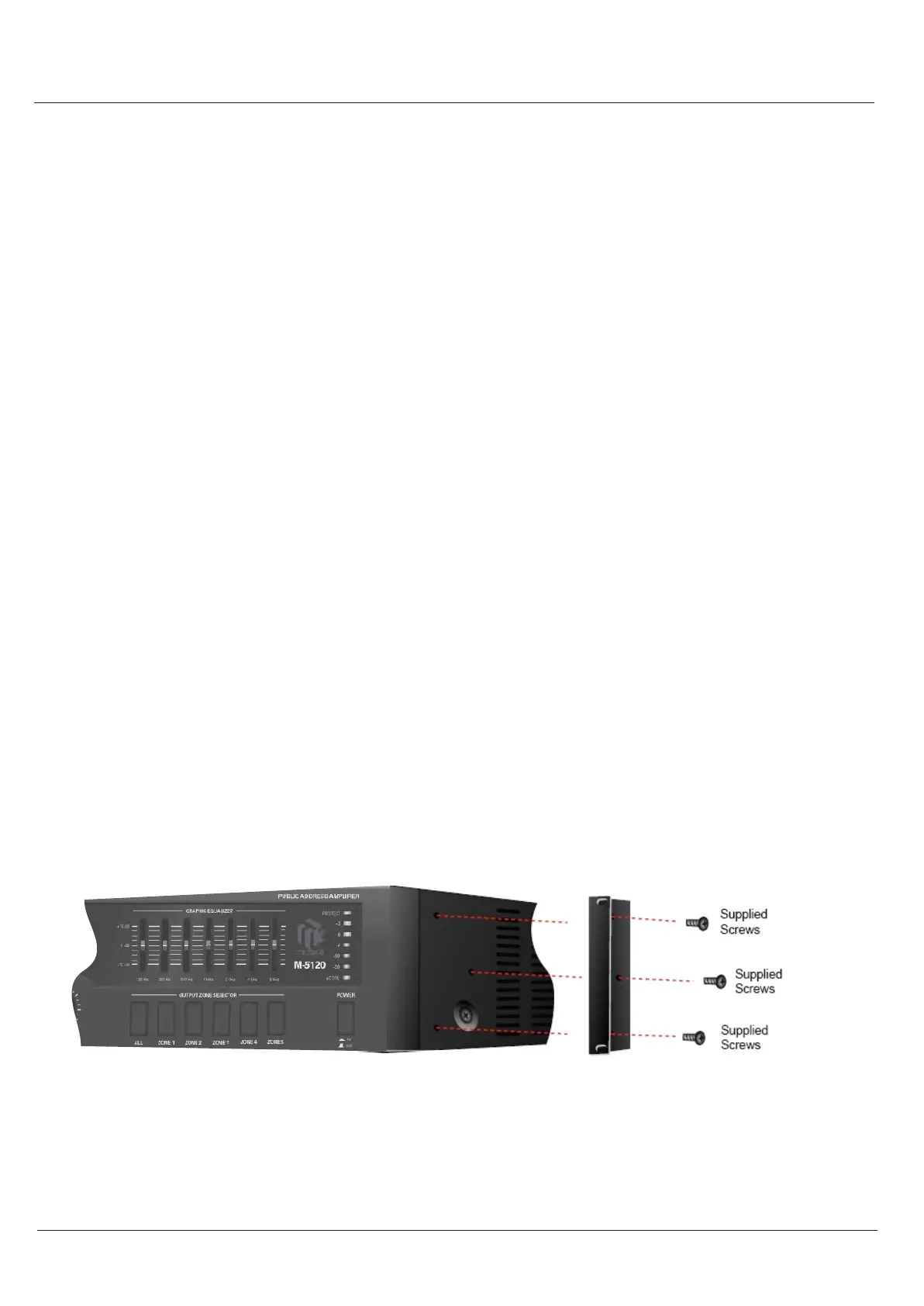

[ How to connect rack ears ]
M-5060/M-5120/M-5240/M-5300
