Setups
Wiring Guide
Choose input wire and connectors
TKOKO recommends using pre-built or professionally wired balanced line,22 to 24 gauge cables.

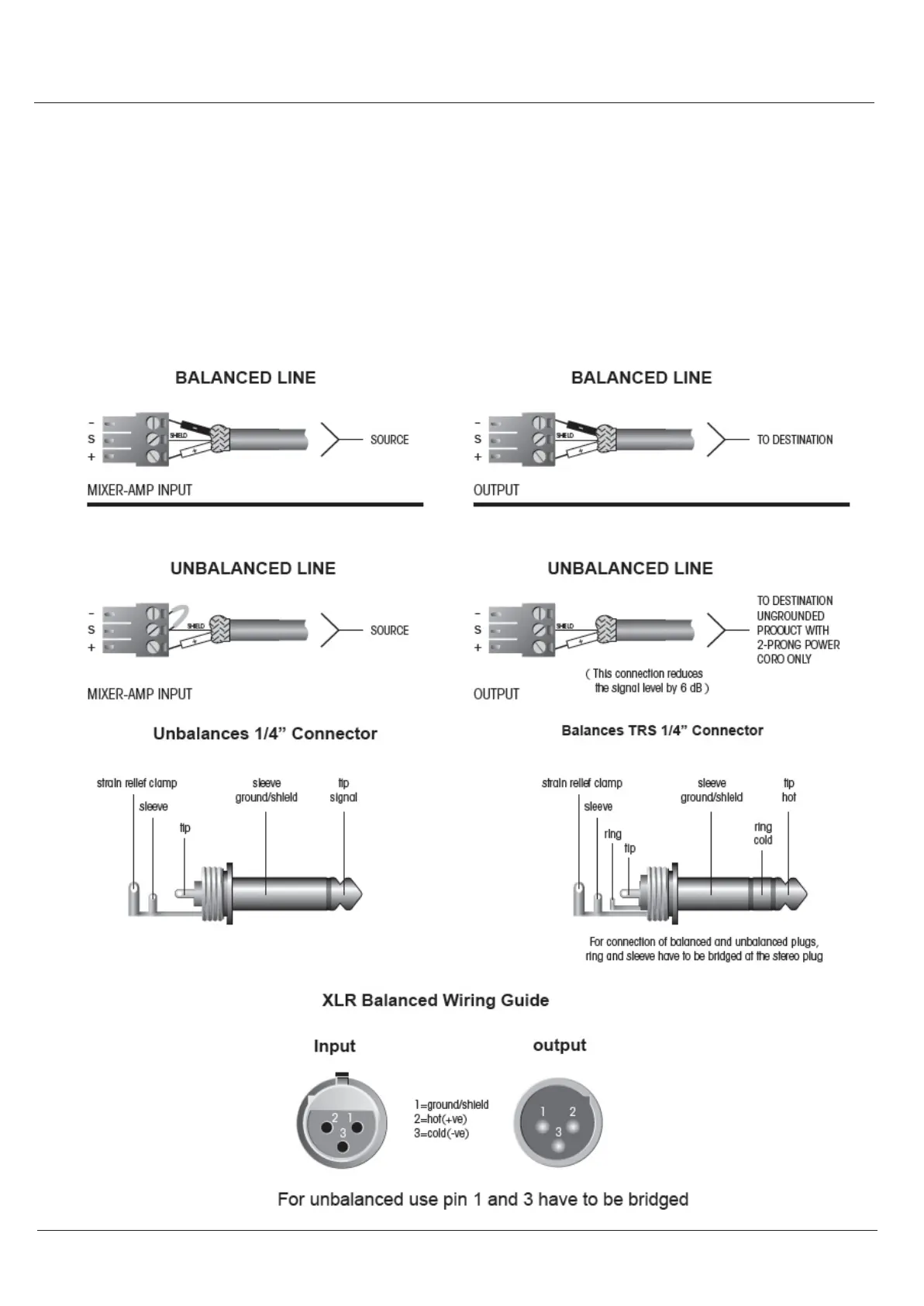

Figure shows connector pin assignments for wiring .The RCA input connections can also be used
for unbalanced inputs.
M-5060/M-5120/M-5240/M-5300
