TLR EIGHT 4.0 - Rear Hub & CV Assembly; Rear Suspension Arm Assembly; Rear Toe-In Adjustment

33
D-5

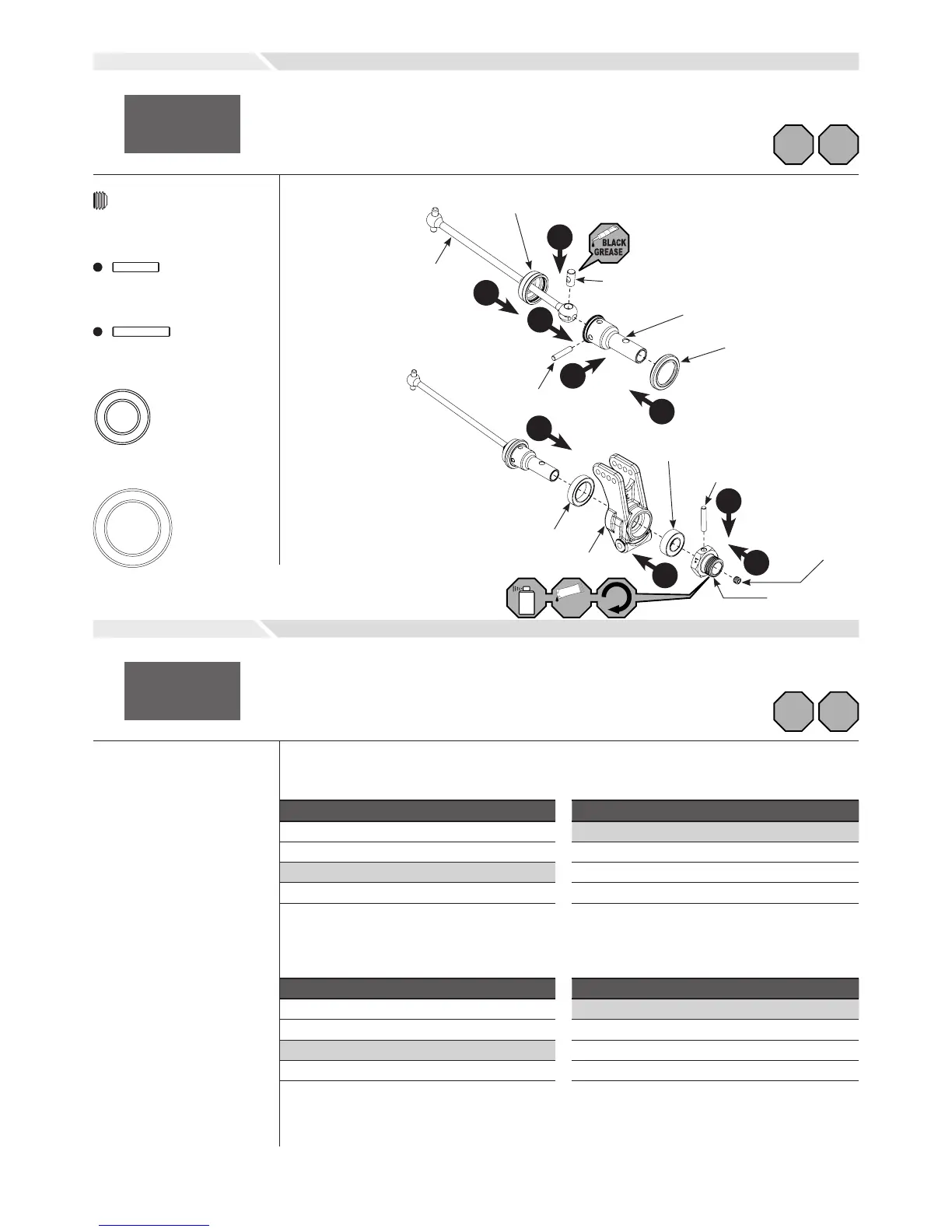

EN Rear Hub & CV Assembly
DE Zusammenbau Hinterachse und CV
FR Assemblage des fusées et cardans arrière
IT Assemblaggio mozzo posteriore & CV
ES Montaje de mangueta trasera y cardan CV
TLR242004
LOSA6296
TLR-LOK
L
R
L
R
L
LOSA3518
LOSA6942
TLR242018
4
5
2
3
TLR242017
TLR244022
LOSA6953
4
1
LOSA3518
3
2
1
LOSA3523
LOSA3535
TLR242018
D-6
EN Rear Suspension Arm Assembly
DE Zusammenbau des Heckquerlenkers
FR Installation des triangles arrière
IT Assemblaggio bracci sospensione posteriore
ES Montaje de los trapecios de la suspensión trasera
L
R
L
R
L
LOSA6296 x 2
F 8-32 x 1/8”
LOSA3518 x 2
2.5 x 12.80mm
LOSA3518 x 2
3 x 17mm
LOSA6953 x 2
1/2” x 3/4”
REAR TOE-IN ADJUSTMENT
Insert Position Insert Number Total Toe-In
Inside 1 2°
Inside 0.5 2.5°
Middle 0 3°
Outside 0.5 3.5°
Outside 1 4°
REAR ANTI-SQUAT ADJUSTMENT
Insert Position Insert Number Total Anti-Squat
Up 1 4°
Up 0.5 3.5°
Middle 0 3°
Down 0.5 2.5°
Down 1 2°
SPUREINSTELLUNG HINTEN
Einsatz Position Einsatz Nr. Vorspur
Innen 1 2°
Innen 0.5 2.5°
Mitte 0 3°
Aussen 0.5 3.5°
Aussen 1 4°
ANTI SQUAT EINSTELLUNG HINTEN
Einsatz Position Einsatz Nr. Anti Squat
Oben 1 4°
Oben 0.5 3.5°
Mitte 0 3°
Unten 0.5 2.5°
Unten 1 2°
EN
DE
LOSA6942 x 2
8 x 16 x 5mm
