Disassembly/Assembly of the Patriot Power Board
Refer to "Open the Control Box Outer Casing" to open the outer casing cover and inner casing cover.

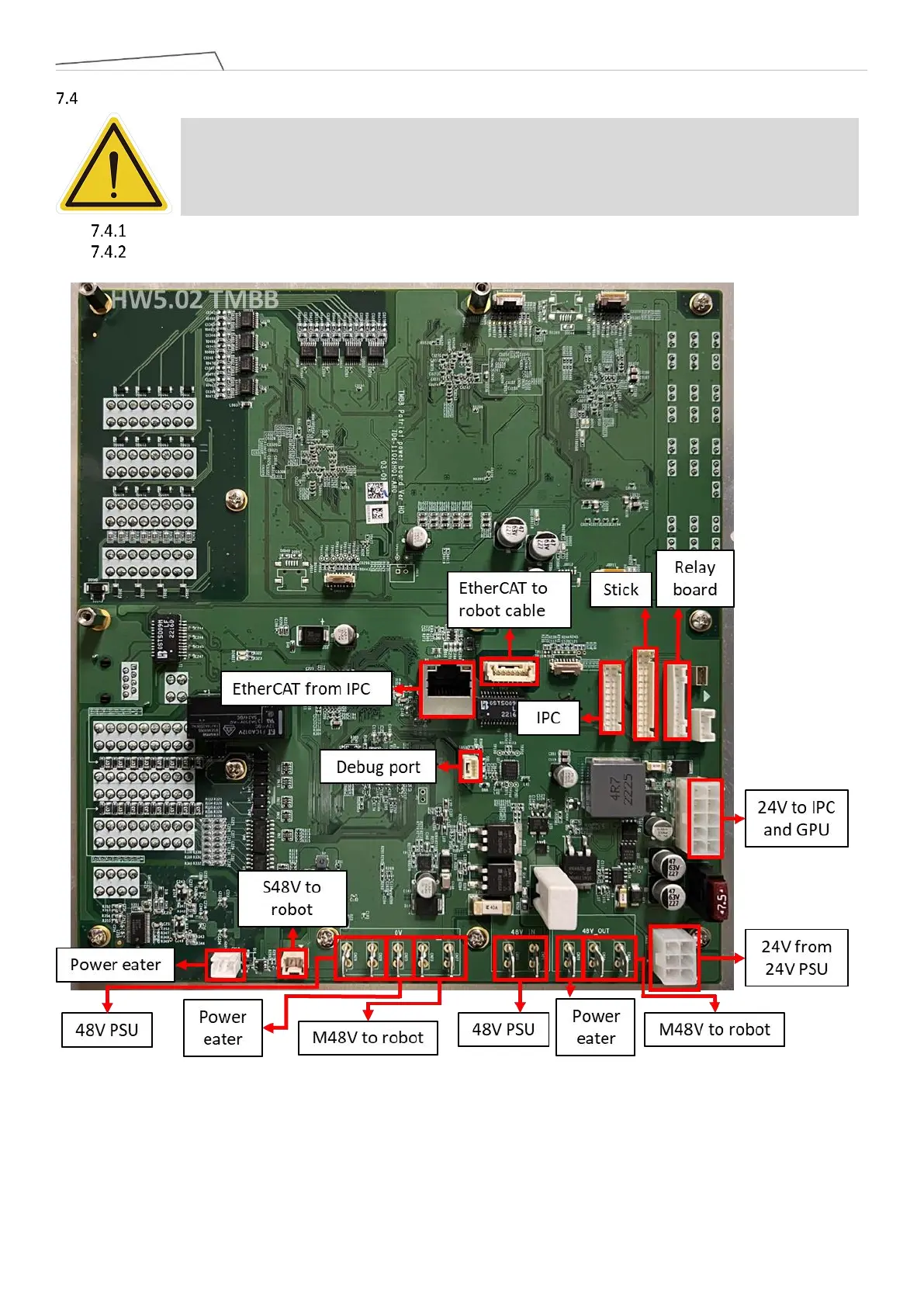

Refer to the diagram below to remove the connectors, and if necessary, cut cable ties:
Caution: Replacing the Patriot power board will reset the Safety settings in the TM flow,
please refer to the Safety settings section in the software manual for saving and recovery.
To Next Page
