TM TM63 LED - Water Softener Installation

ENGLISH ENGLISH
08
Installation of this dishwasher is to be performed by authorized service and following the instructions
that the country's legislation.
Then follow the steps below for proper installation:
1. Check the water pressure of the network: it must be at least 2.5 bar and maximum 6 bar. Remember that
water temperature must be between 5 ° C and 40 ° C.
2. Before the installation, close the water tap usually the same place you are going to install and open a
faucet to depressurize it.
3. Choose an installation location near an electrical outlet of 220V - 50Hz
4. Check the correct status of the tubes.
5. Remove the cap covering the valve and then the lid of your softener. Remove the by-pass valve and the
transformer:

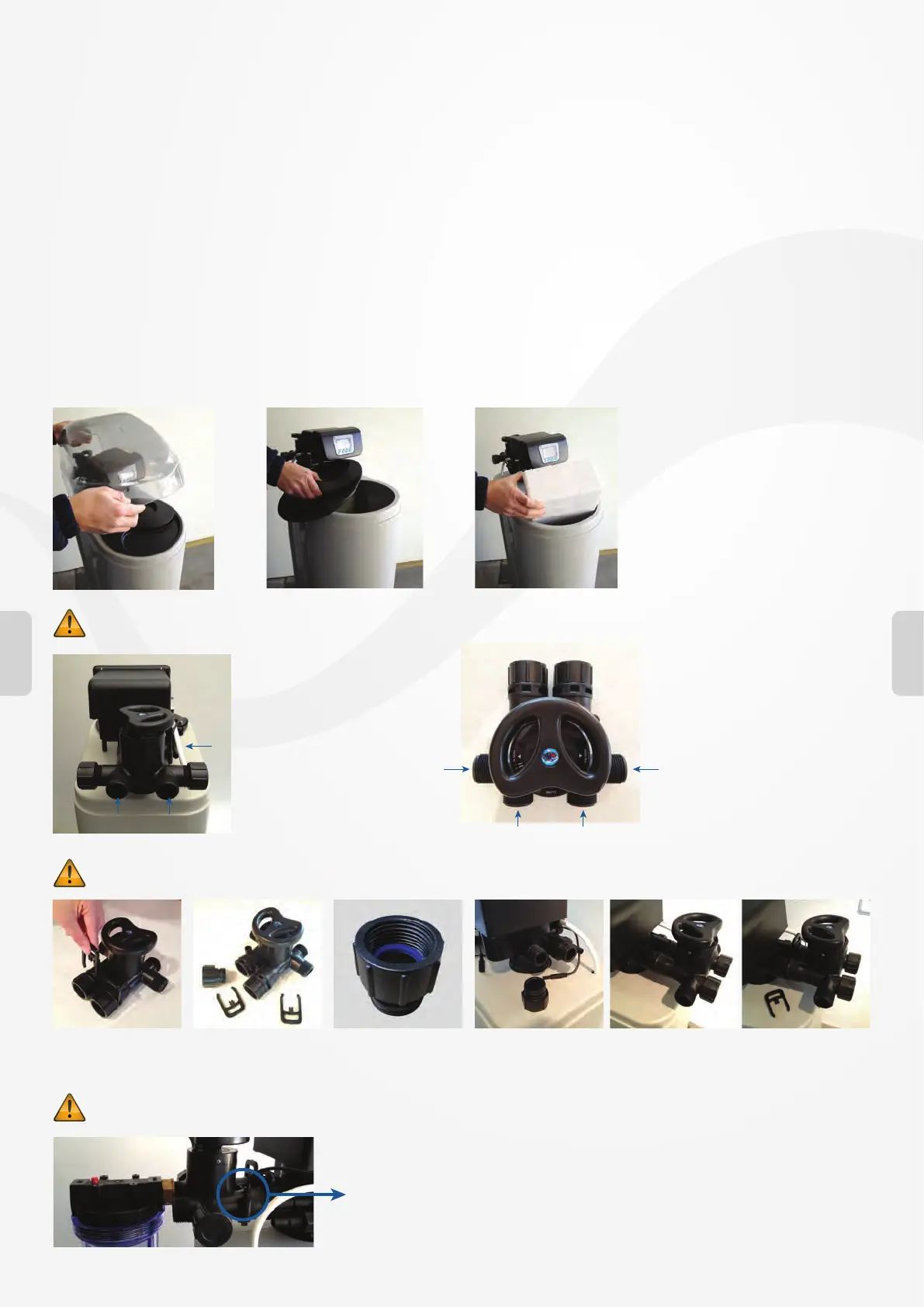

06. WATER SOFTENER INSTALLATION
1 2
3
Remove the clips
on the threads.
Remove the threads
Input / Output.
Place the boards
both threads.
Place the threads
in the valve.
Insert the By-pass
in the valve.
Re-placing
the clamps
1. Input connection
2. Outlet connection
3. Drain connection
1. Input connection
2. Outlet connection
1 2
21
6. Connect the inlet and outlet to the "By-Pass".
7. Follow these steps to put the by-pass valve:
8. Check the volumetric counter sensor is connected properly.
SENSOR
