Step 4 : Installation of front and rear trusses

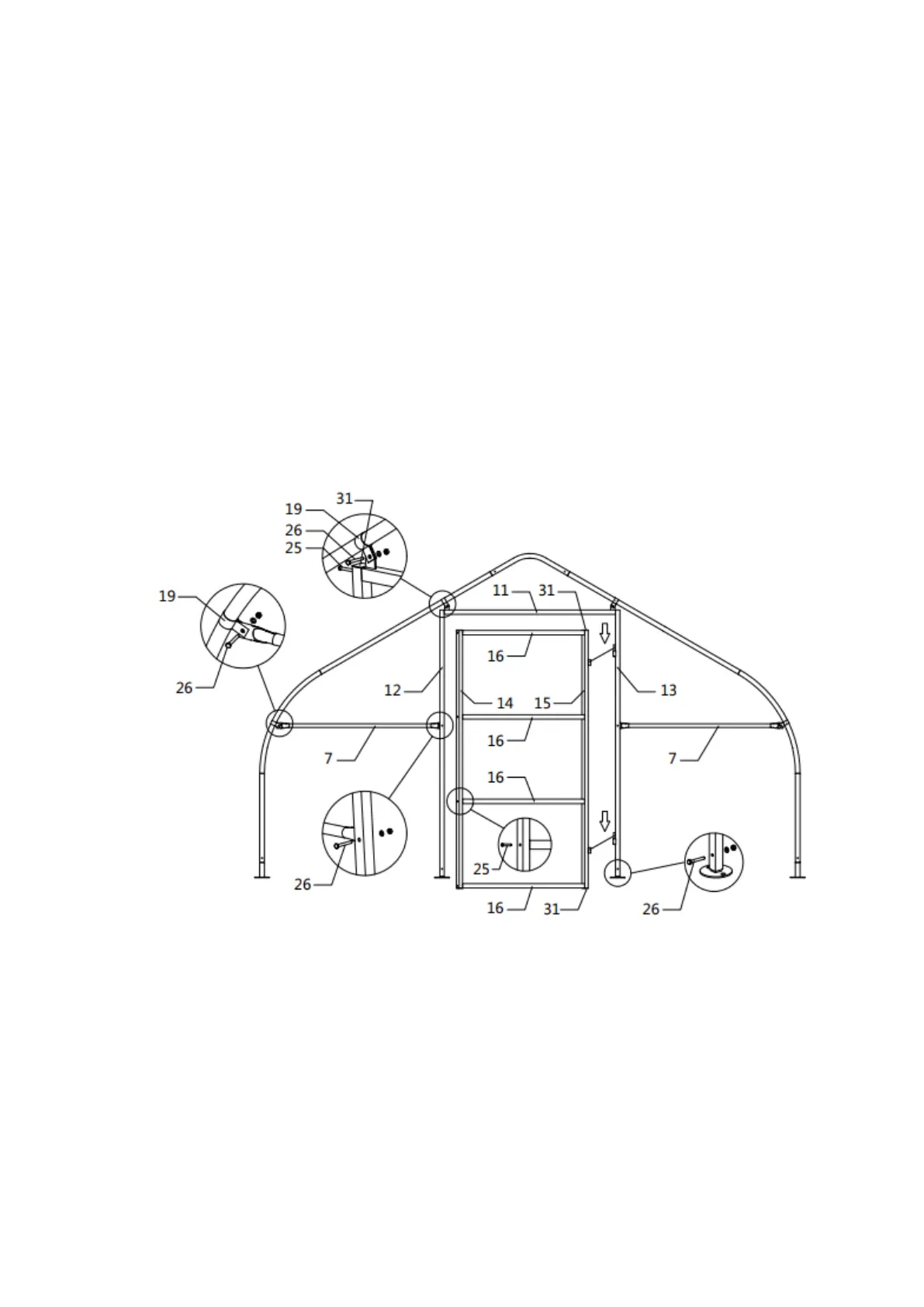

Installation of the front truss. (refer to figure 6)
-
(2) Front door cross tubes (#7)
-
(1) Door frame cross pull tube (#11)
-
(1) Door frame left tube (#12)
-
(1) Door frame right tube (#13)
-
(1) Door frame column left tube (#14)
-
(1) Door frame column right tube (#15)
-
(4) Door horizontal tube (#16)
-
(4) Tube clamp (#19)
-
(10) Half round head bolt (#25)
-
(8) Hex bolt (#26)
-
(6) Square plug (#31)
Figure 6
Installation of the rear truss. (refer to figure 7)
-
(2) Rear door cross tubes (#8)
-
(1) Upper vertical tubes for rear truss (#9)
-
(1) Lower vertical tubes for rear truss (#10)
-
(2) Tube clamp (#19)
-
(4) Hex bolt (#26)
