TMG 1260 - Page 8

Page 7 of 12

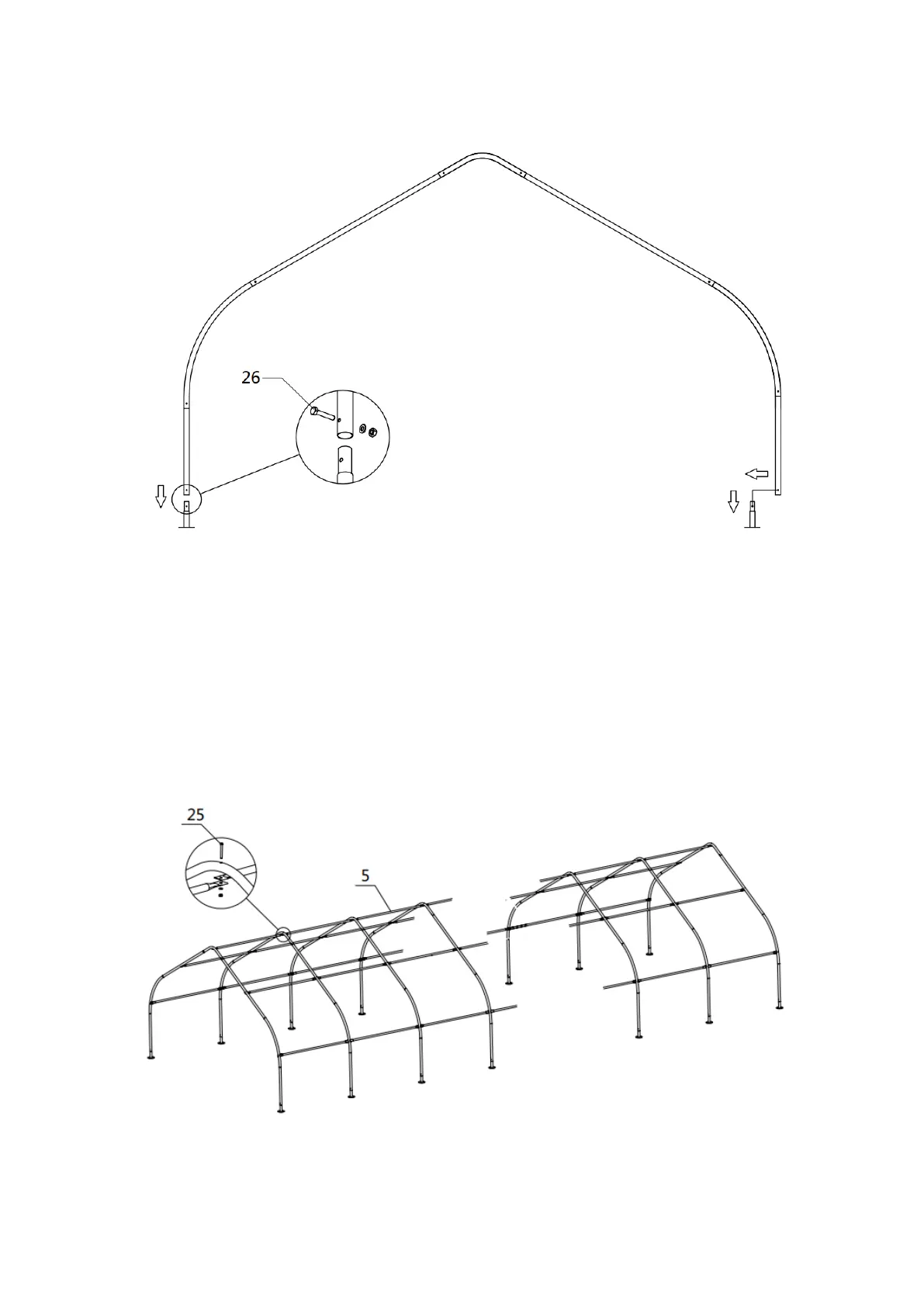

Figure 4
 Repeat above step to put up all other trusses (from 2th to 15th truss), and
connect all purl ins. Now the whole structure is completely up. (refer to figure
5)
 Parts used in this step :
- (70) Roof purlin (#5)
- (5x15) Half round head bolt (#25)
Figure 5
