TMG 1260 - Page 7

Page 6 of 12

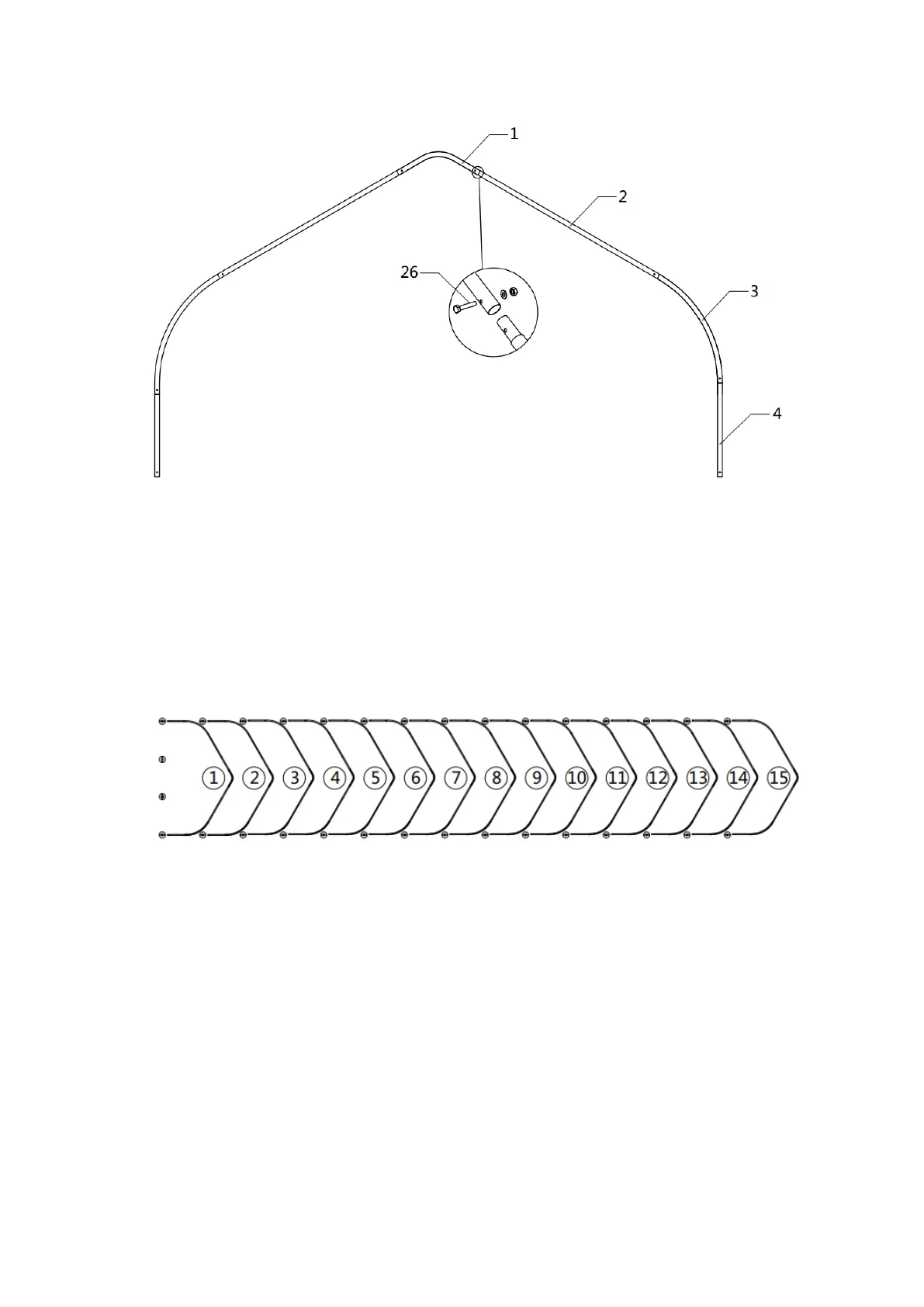

Figure 2
 Lay down all (15) trusses on the ground as figure 3 when the assembly is all
completed and before moving to next step.
Figure 3
Step 3 : Put up all trusses (refer to figure 4)
 Put up the front truss, use hex bolt (#26) to secure the truss to the base plates.
 Parts used in this step :
- (2) Hex bolt (#26)
