- (31) Base plate (#6)
- (2) Door column base plate (6A)
- (66) Expansion bolts (6B)

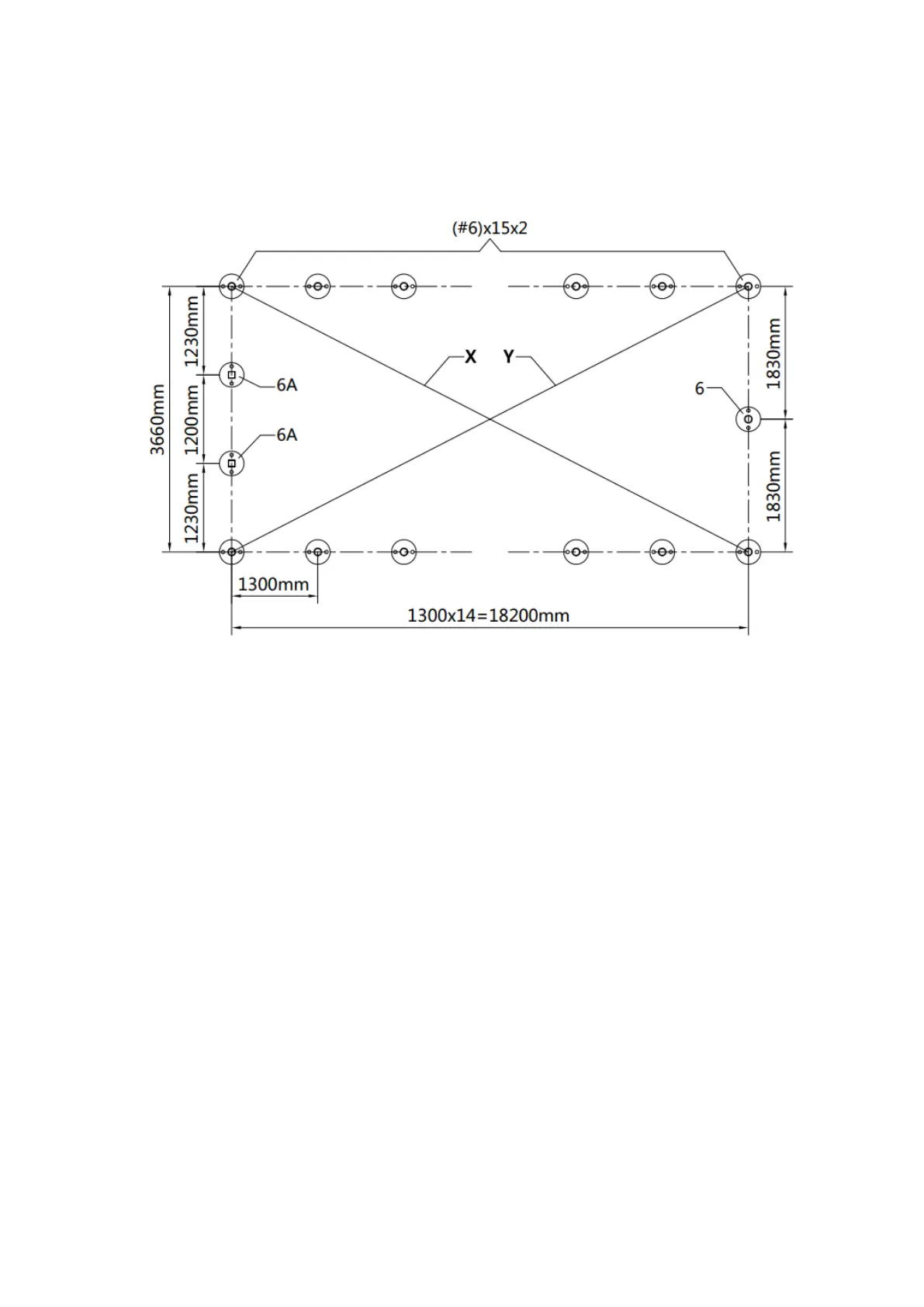

Figure 1
Step 2 : Assemble all trusses
 The building includes 15 trusses , Connect all pipes with hex bolt (#26).
 Parts used in this step (refer to figure 2) :
- (1x15) Peak arch tube (#1)
- (2x15) Upper rafter tube (#2)
- (2x15) Shoulder tube (#3)
- (2x15) Sidewall tube (#4)
- (6x15) Hex bolt (#26)
