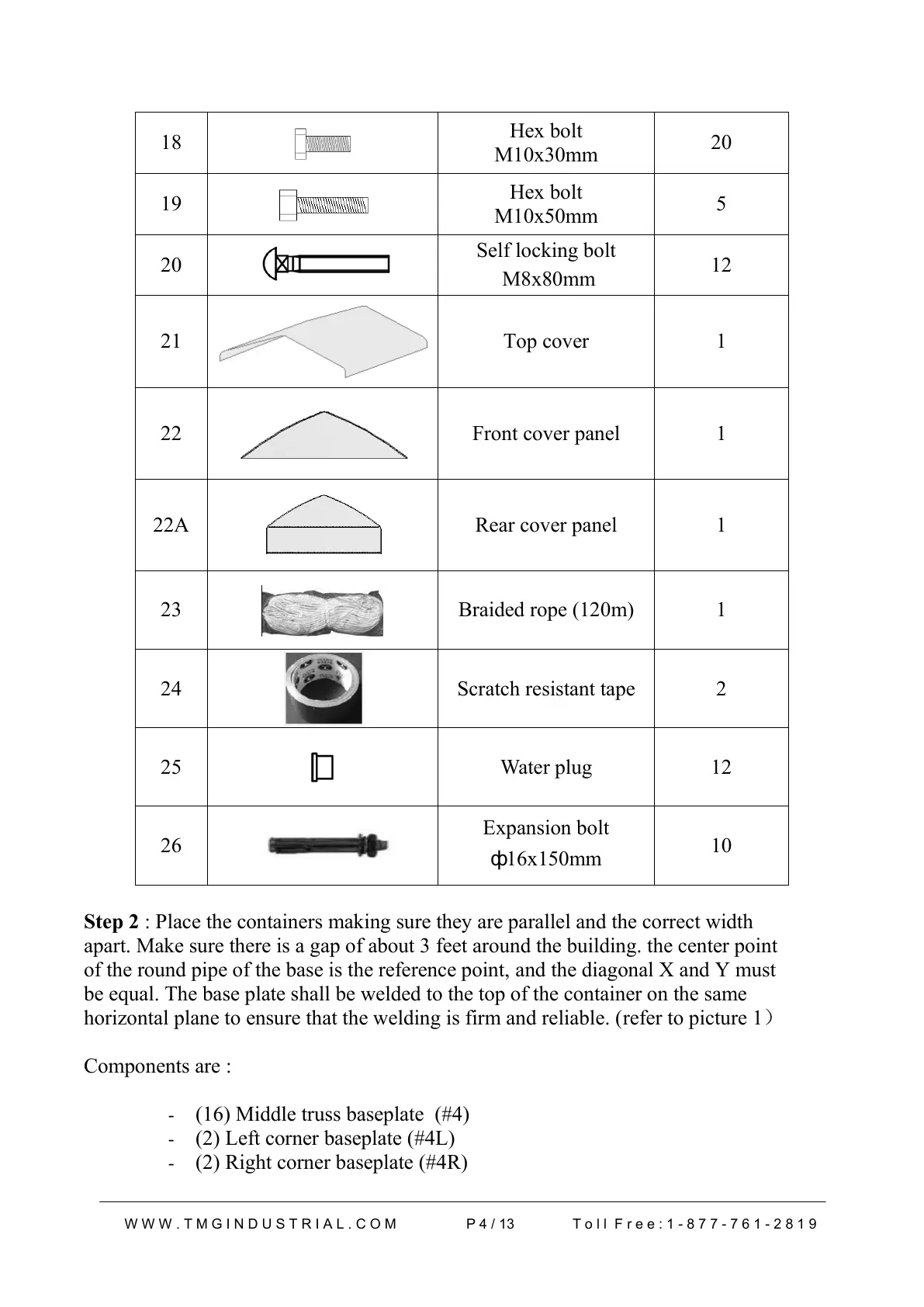

Self locking bolt
M8x80mm
Step 2 : Place the containers making sure they are parallel and the correct width
apart. Make sure there is a gap of about 3 feet around the building. the center point
of the round pipe of the base is the reference point, and the diagonal X and Y must
be equal. The base plate shall be welded to the top of the container on the same
horizontal plane to ensure that the welding is firm and reliable. (refer to picture 1）
Components are :
-
(16) Middle truss baseplate (#4)
-
(2) Left corner baseplate (#4L)
-
(2) Right corner baseplate (#4R)
