ST-1000-D1 LIGHTING CONTROLLER UNIT
- 4 -

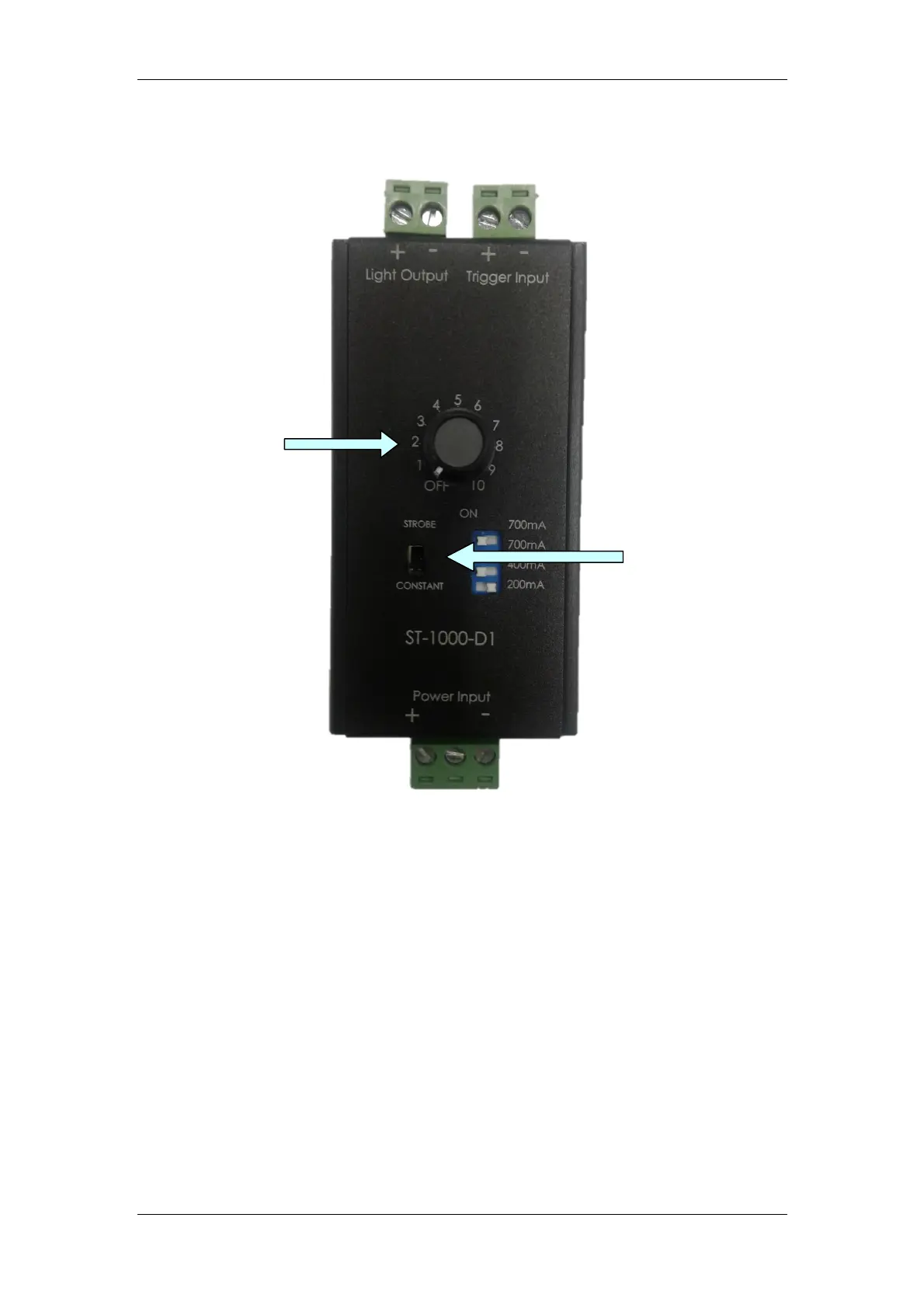

TOP VIEW
- At Top View, the ST Control card, all the Positive terminals are with ‘+’
label and the Negative terminals are with ‘-’ label, as shown in the above
photo.
VR KNOB Control
LED Intensity
