ST-1000-D1 LIGHTING CONTROLLER UNIT

- 6 -

Power ON

The default current setting for the ST controller is 700mA. If other current settings are desired,

please refer to the previous section before power on the unit.

Connect the lighting connectors to the lighting connection terminals.

Connect a voltage supply from 24V DC to the Board Power Terminals. The POWER LED will

lit when power is supplied.

Operation Mode

There are two functional modes for ST-1000-D1:

 Constant Mode

 Trigger Mode

Constant Mode

The unit will operate in Constant Mode when the slide switch is set at “CONSTANT” position

(Label CONSTANT). The unit has constant mode intensity from 0 to 10 (Analog).

Set the slide switch at “CONSTANT” position.

The Lightings intensity is set by manually adjust the position of VR Knob (label 0-10) on the

casing.

When VR Knob position at '0', it sets the lightings intensity at minimum.

When VR Knob position at '10', it sets the lightings intensity at maximum.

Trigger Mode

The unit will operate in Trigger mode when the Toggle switch is set at “STROBE” position

(Label STROBE). The unit has trigger mode intensity from 0 – 10 (Analog).

Set the Toggle switch at “STROBE” position.

The Lightings intensity is set by manually adjust the position of VR Knob (label 0-10) on the

casing.

When VR Knob position at '0', it sets the lightings intensity at minimum.

When VR Knob position at '10', it sets the lightings intensity at maximum.

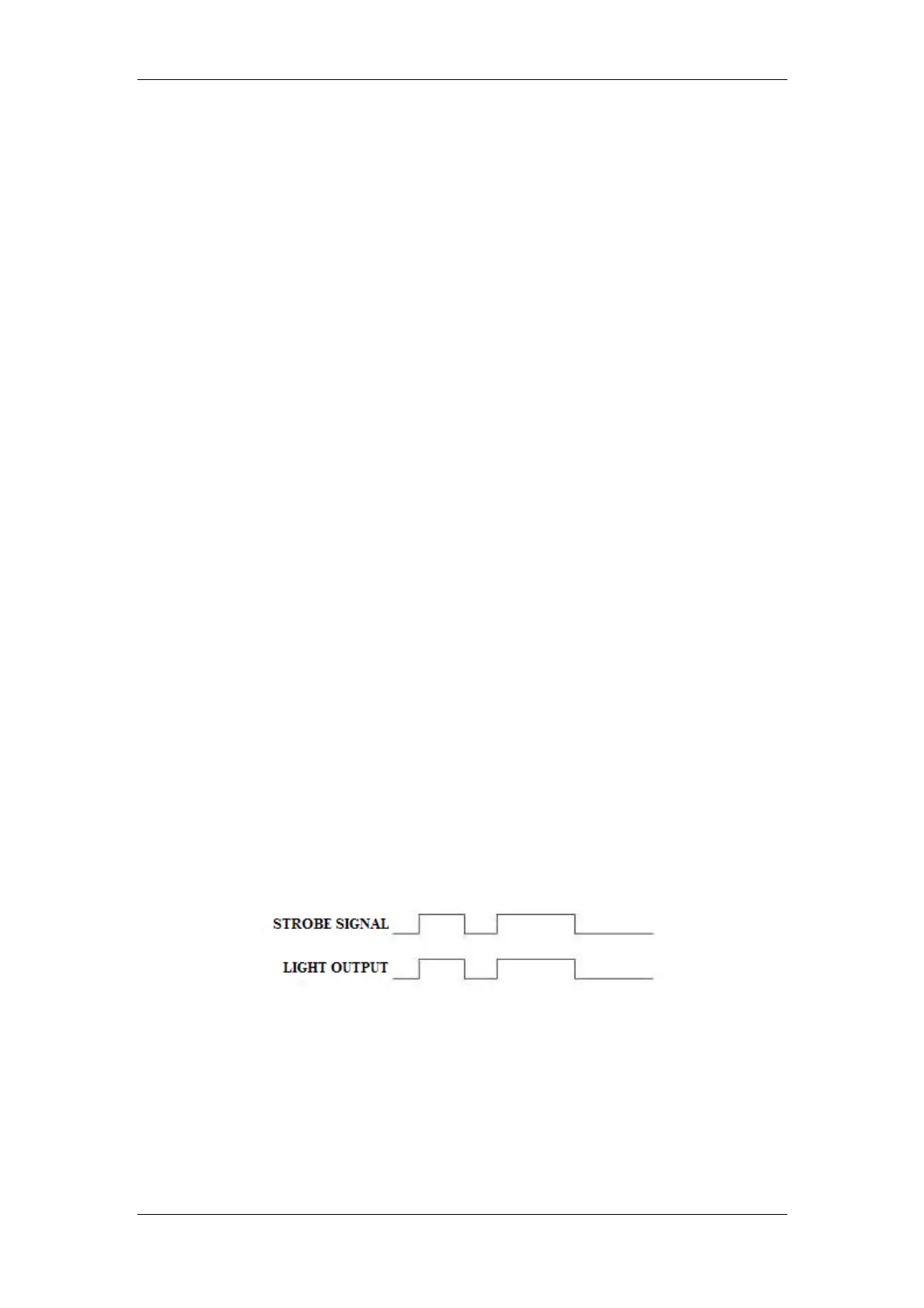

The “STROBE SIGNAL” input and “LIGHT OUTPUT” output timing diagram is shown as

below:

Triggered Mode Timing

TMS ST Series User Manual
