TMS ST Series User Manual

ST-1000-D1 LIGHTING CONTROLLER UNIT
- 7 -

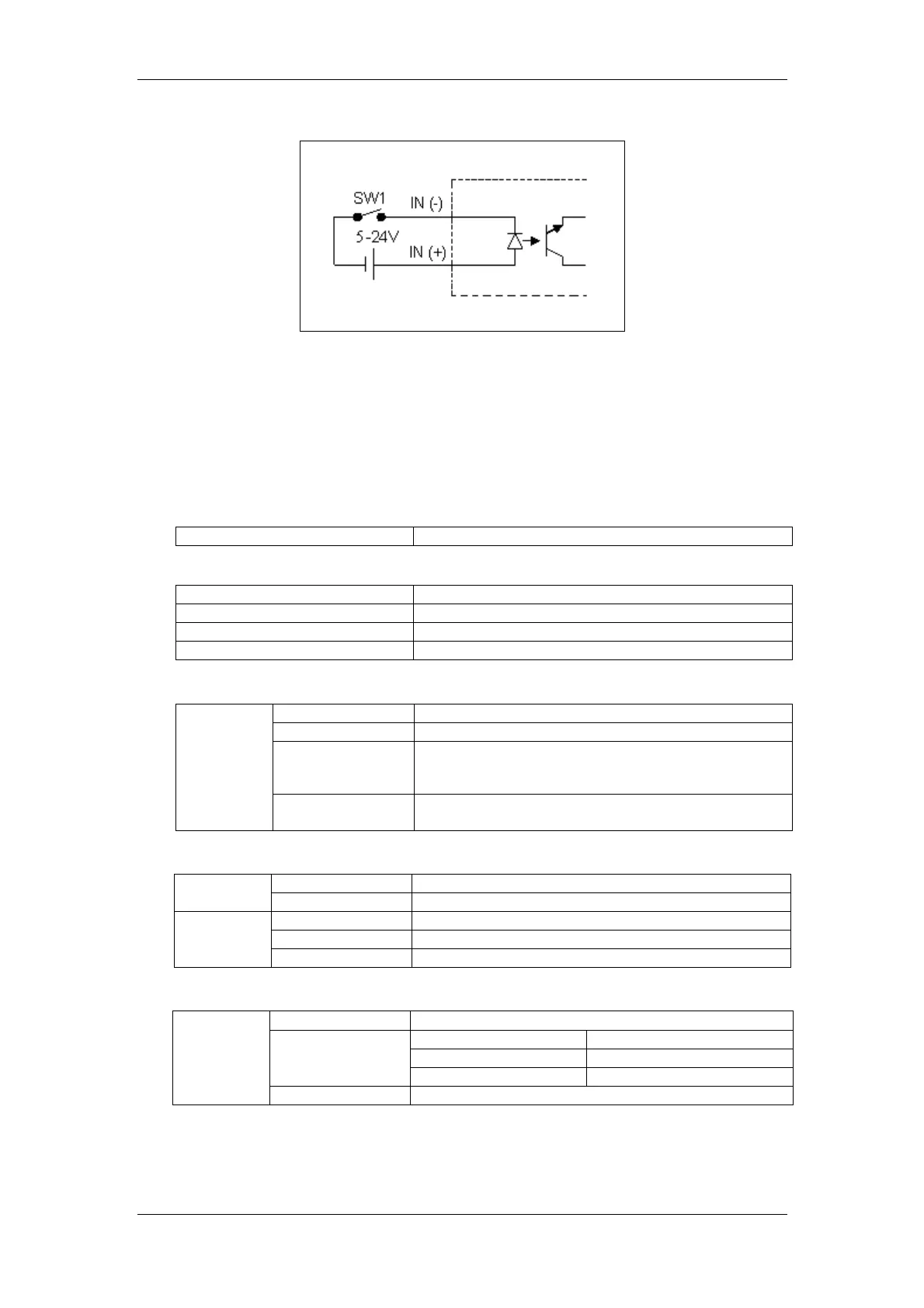

Pull High / Pull Low
ST-1000-D1 Specification
CONTROL:
VR
Manual Control (Adjustable)
General:
Dimension
78mm x 40.50 x 53.4mm
Power Input
+24 VDC
Board Max Power Consumption
50mA±10% @ 24V
Board Voltage
24 VDC
Channels:
1 Channels
Channel Control
Independent
Output Mode
Constant / Trigger
Output Current
700mA (Default),
200mA, 400mA, 700mA, 900mA,1100mA, 1400mA,
1800 & up to 2000mA
Lighting Input and
Output Voltage
24VDC
Functions:
Constant
Lighting Intensity
VR Adjustable
Intensity Range
0 ~ 10 steps
Trigger
Lighting Intensity
VR Adjustable
Intensity Range
0 ~ 10 steps
Timing Delay
0 ~ 100 ns
External I/O:
Input
Input Voltage
5~24 VDC
Input Current
5 VDC
1.4 mA (typical)
12 VDC
4.5 mA (typical)
24 VDC
10 mA (typical)
Protection
2500 VDC Opto-coupler Isolation

TMS ST Series Specifications

General

Operating Voltage	3.3V
Series	ST
Flash Memory	128 KB
RAM	20 KB
Analog Input Pins	16
Communication Interfaces	SPI, I2C
Operating Temperature	-40°C to +85°C
