420(16.54)
242.5(9.55) 22.8(0.89)
58.4(2.3)
40(1.57)
88.4(3.48)

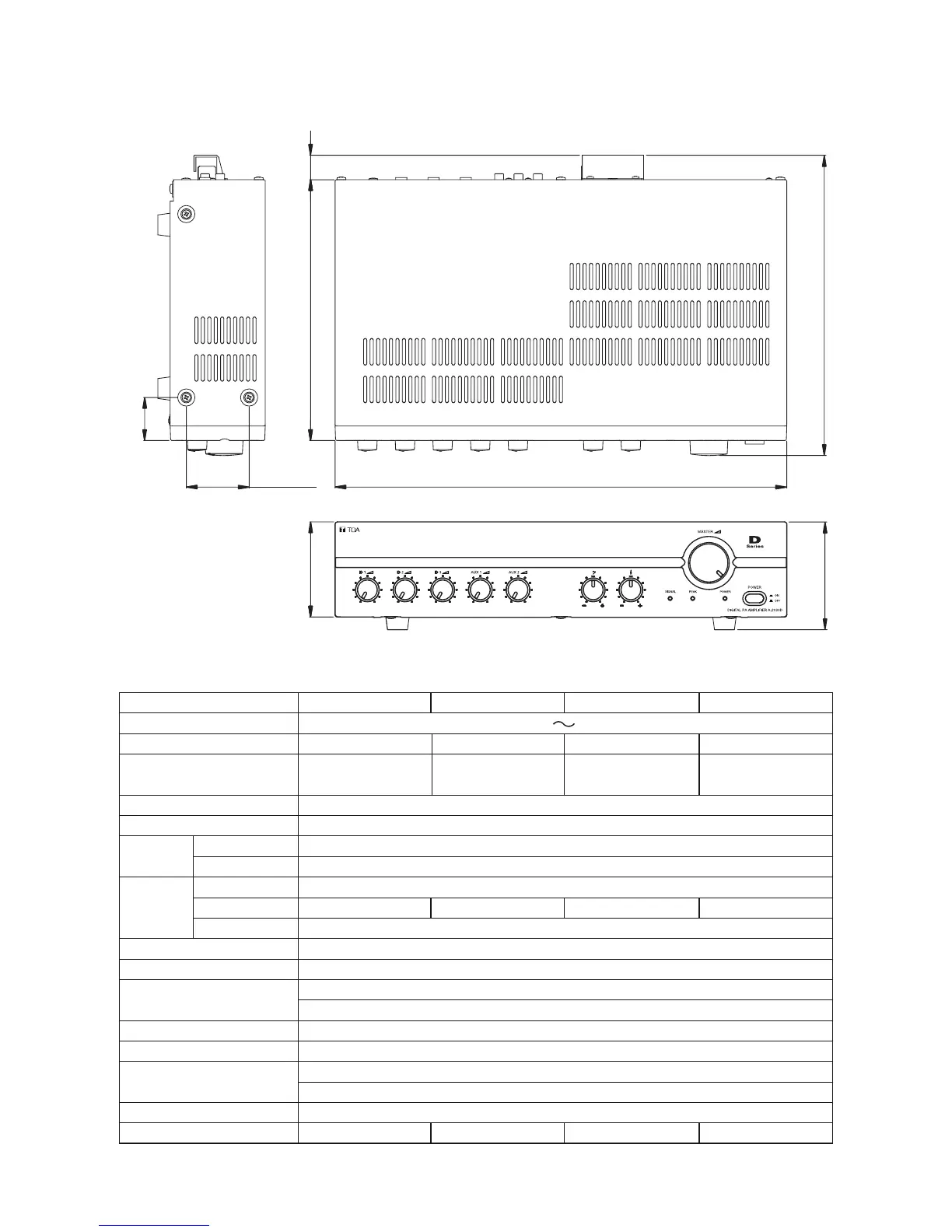

Dimensional diagram represent by A-2030D-AS 2CE image. Outer dimension for all series are same.
Units : mm (inches)
9. DIMENSIONAL DIAGRAM
100.6(3.96)
280.3(11.04)
10
10. SPECIFICATIONS
Model no.
Dimensions
Finish
Indicator
Muting
Tone Control
S/N Ratio
Output
Phantom Power
Input
Distortion
Frequency Response
Rated Output
Power Source
Weight
A-2030D-AS
420 (w) x 100.6 (h) x 280.3 (d) mm (16.54” x 3.96” x 11.04”)
Panel : ABS Resin, Black
POWER, PEAK, SIGNAL
MIC 1 : mute other input signal by 0-30dB attenuation
Bass
±10dB
at 100Hz
Over 60dB
Balanced (Floating)
DC +21V (MIC 1)
Less than 1% at 1kHz, 1/3 Rated Power
50-20000Hz,
±3dB
30W
4.0 kg (8.88 lb)
Power Consumption
(EN 60065)
12W
330Ω
Speaker out
-60 dB (0dB=1V), 600Ω, Balanced, XLR3 -31 type
-20 dB (0dB=1V), 10kΩ, Unbalanced, RCA pin jack
MIC 1-3
AUX 1-2
Line 100V
0dB (1V), 600Ω, Unbalanced RCA pin jackRec Out
Treble
±10dB
at 10kHz
Case : Steel Plate, Black
A-2060D-AS
60W
4.6 kg (10.14 lb)
16W
170Ω
A-2120D-AS
120W
4.0 kg (8.88 lb)
34W
83Ω
A-2240D-AS
240W
4.0 kg (8.88 lb)
48W
42Ω
*Design & specification are subject to change without notice for improvement.
[A-2000D-AS 2CE Series]
220-240V 50/60Hz
