6.2. Output Connection
COM 100V
42Ω
CAUTION !
Impedances indicate at the terminal represent
the total impedance (load) of the speaker system.
Total impedance for 100V line :
• 330Ω (A-2030D Series)
• 170Ω (A-2060D Series)
• 83Ω (A-2120D Series)
• 42Ω (A-2240D Series)
MAXMIN
TONE
VOLUME
C 1 2 3 4 5 6
or
or
or
or
or
6.3. Tones Connection (for A-2000DT-AS 2CE Series only)
Tones connection just operation at one connection for one time.
Connection 1 to C will function sound Chime.
Connection 2 to C will function sound Bell.
Connection 3 to C will function sound Evacuation.
Connection 4 to C will function sound Alert.
Connection 5 to C will function sound Lockdown.
Connection 6 to C will function sound All Clear.
TONE CHANNEL
1: CHIME
2: BELL
3: EVAC
4: ALERT
5: LOCKDOWN
6: ALL CLEAR
7
CAUTION
Be sure to attach the supplies terminal cover after connection completion.
Since high voltage is applied to the speaker terminal, never touch these
terminals to avoid electric shock.

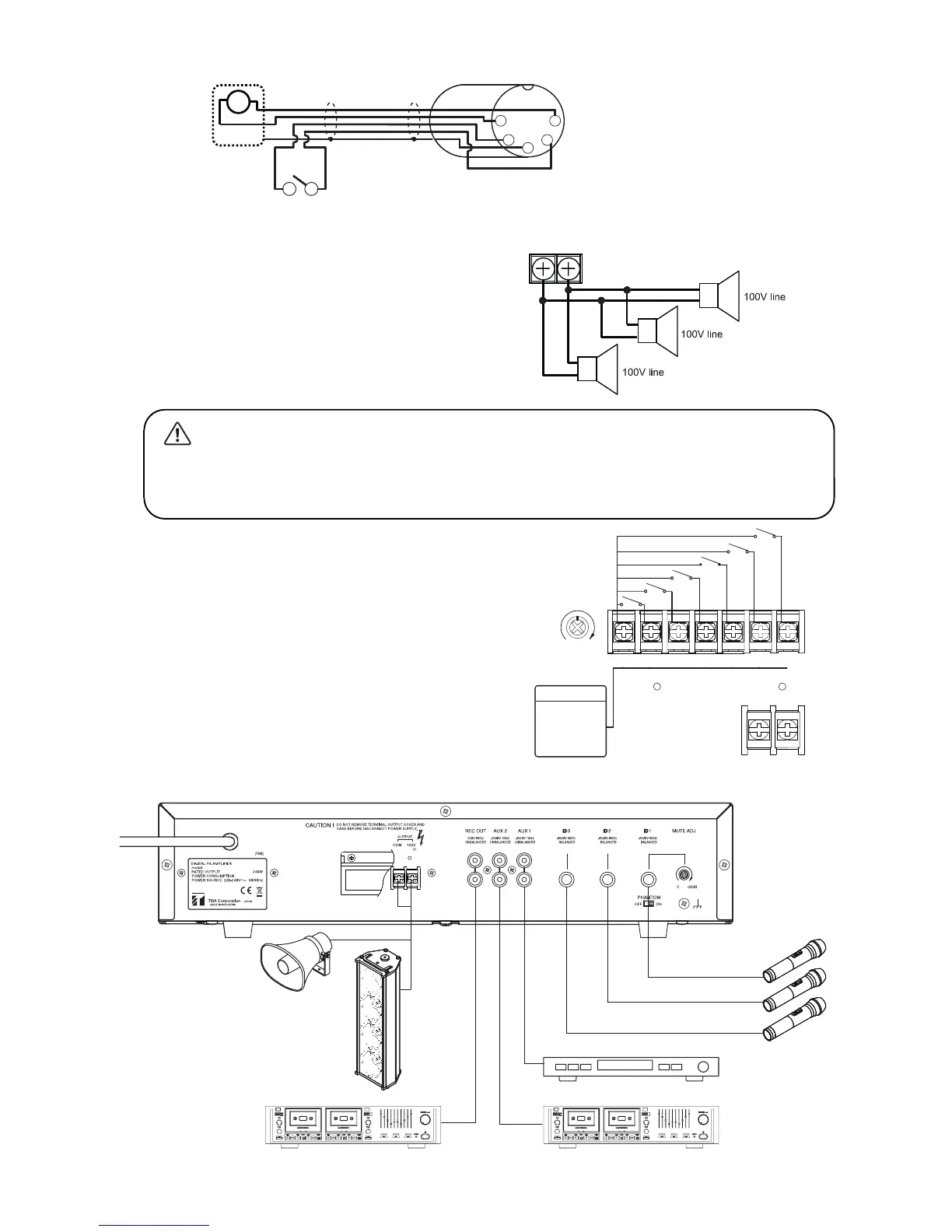

6.4. Example of External Equipment Connections
Electret Condenser
Microphone
Dynamic Microphone
Dynamic Microphone
Radio Tuner
or CD Player
Cassette
tape Player
Cassette
tape Recorder
100V line horn speaker
with matching transformer
100V line column speaker
with matching transformer
AC
mains
48W
A-2240D-AE 4CE
MIC
Four Core Shielded Cable
To 5-Pin DIN connector
1
3
4
5
2
1
3
5
2
4
• MIC1 Connection (5-pin DIN Plug)
Note : Priority at tone function
• When signal of tone appear, mute circuit work promptly.
• When signal of tone disappear, it returns to it previous
state.
42
>PC<
Put back this te
CAUTIO
after connecting
