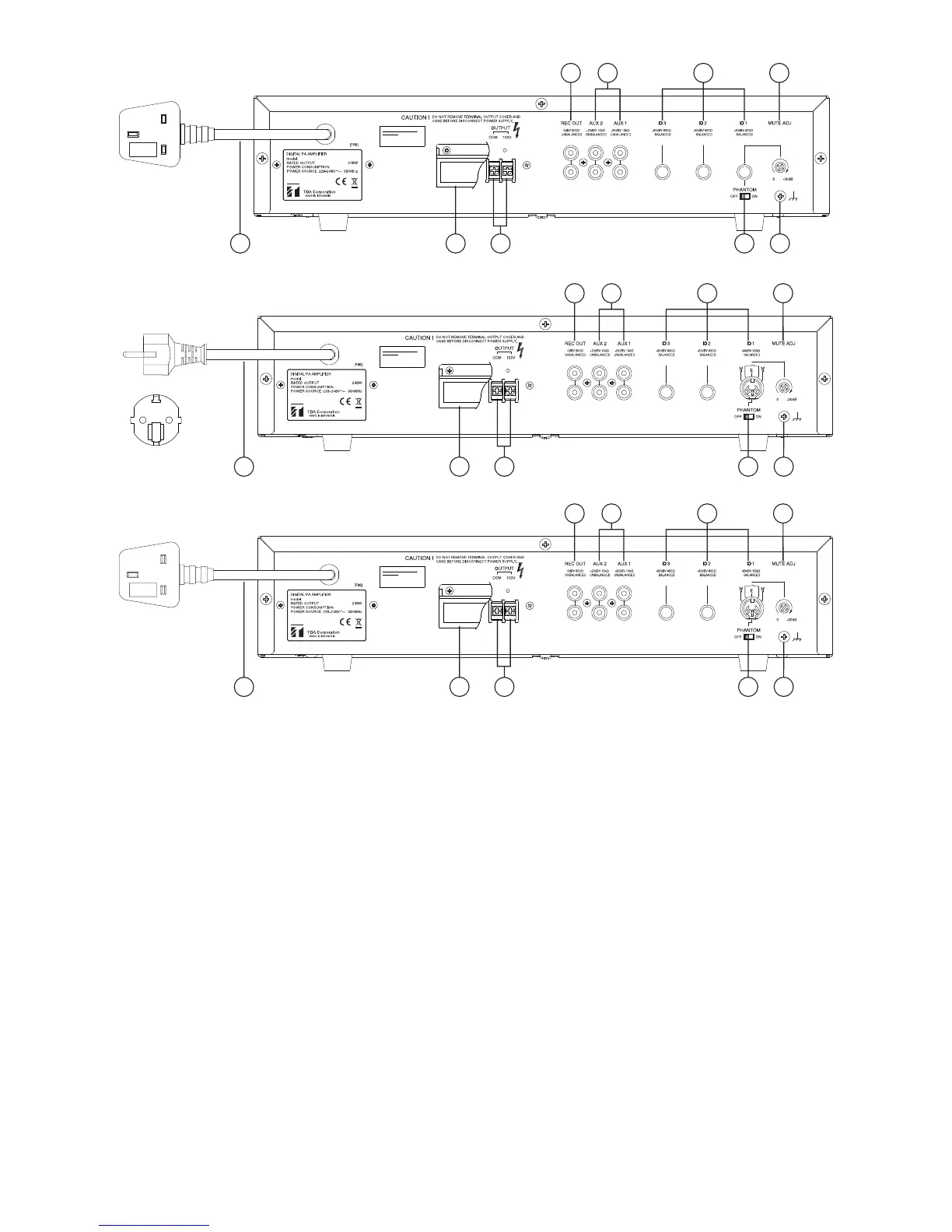

Toa A-2030D SERIES User Manual

10
12
11
17 18
16
131415
42Ω
[A-2000DD-EB 1CE Series]
10
12
11
17 18
16
131415
42Ω
[A-2000DD-EB 4CE Series]
5
10
12
11
17 18
16
13
14
15
42Ω
[A-2000D-EB 4CE Series]
48W
A-2240D-EB 4CE
48W
A-2240DD-EB 1CE
48W
A-2240DD-EB 4CE
1. Power Switch
Press to turn ON the power. Press again to turn off
the power.
2. Power Indicator
Lights green when power is switched ON.
3. Peak Indicator
Lights red to indicate the output signal reaches the
peak level, this indicates that sound is distorted. In
such case, adjust each volume control to reduce
output level.
4. Signal Indicator
Lights green for indicates present of an output signal.
5. Microphone Volume Control
Adjust the microphone level.
6. AUX Volume Control
Adjust the AUX level.
7. Master Volume Control
Adjust overall signal level.
8. Bass Control
Adjust bass response. Rotate clockwise to increase
bass output and counter clockwise to reduce it. The
center position provide flat characteristic.
9. Treble Control
Adjust treble response. Rotate clockwise to increase
treble output and counter clockwise to reduce it. The
center position provide flat characteristic.
10. AC Power Cord
Connect to an AC power source.
11. Output Terminal
Terminal for connecting speaker. Use only with high
impedance speaker.
13. MIC 1, MIC 2, and MIC 3
-60dB (1mV), 600 Ω , electronically balanced.
Mic 1 provides phantom it can applied to
condenser microphone.
note:
XLR connection: Pin-1 Ground, Pin-2 Hot, Pin-3
Cold.
5-pin DIN connection: Pin-1 Hot, Pin-2 Ground,
Pin-3 Cold, Pin-4 and Pin-5 mute switch. When
pin-4 is shorted with pin-5, the muting function is
Ground operated.
12. Terminal Cover
To avoid electric shock by high voltage from output
terminal, put back terminal cover after connecting
speaker cords.
