6. CONNECTIONS
6.1. Input Connections

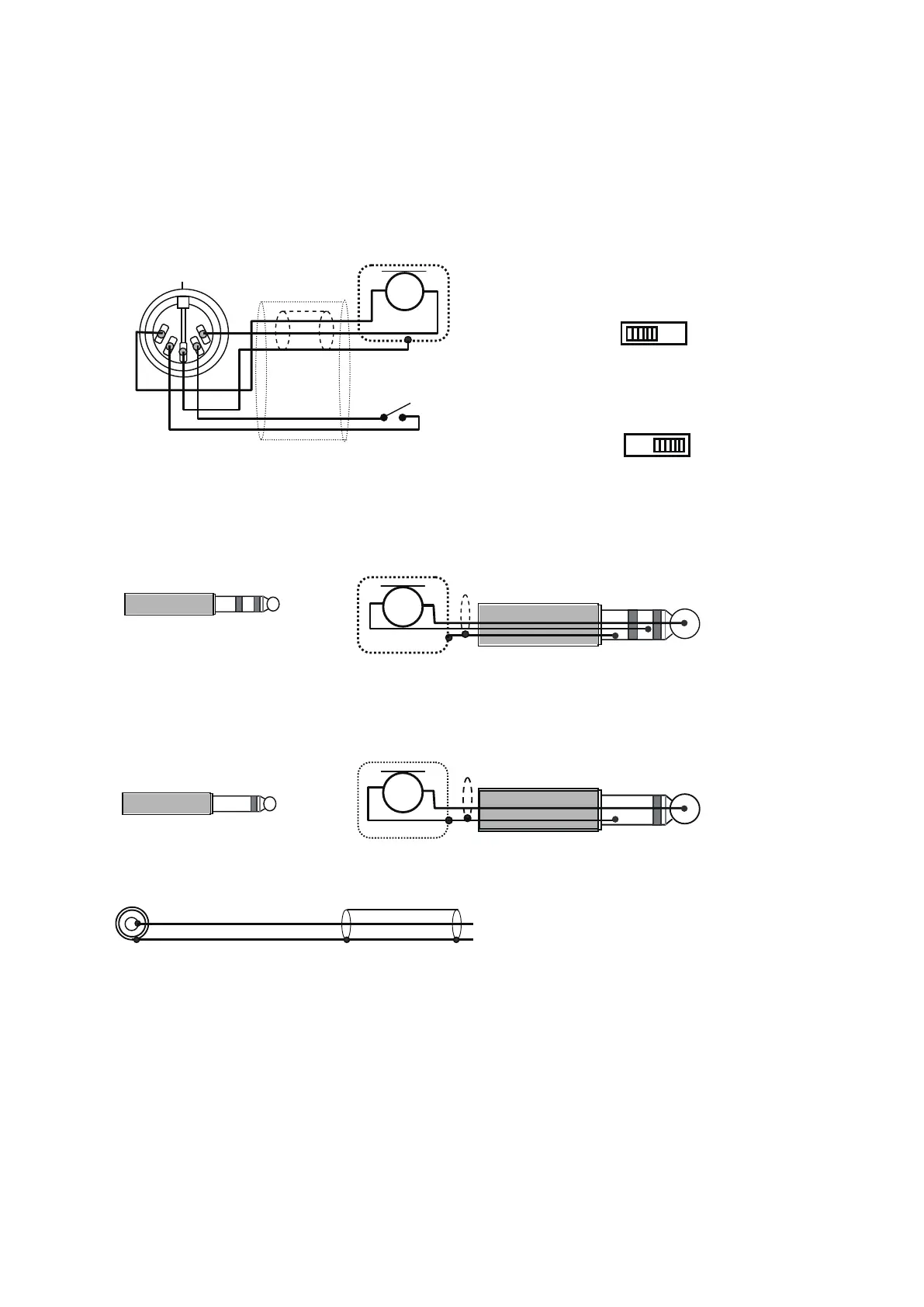

6.1.1. Mic 1 Connection (5-pin DIN plug) 5-pin DIN connection
Pin-1: Hot, Pin-2: Earth, Pin-3: Cold, Pin-4 and Pin-5: mute switch. When pin-4 is shorted with pin-5, the muting
function is operated.
6.1.2. Mic 2 & Mic 3 connection (phone plug)
Because MIC input is electronically balanced type, it uses double pole phone plug.
However, the microphone input circuit is in a condition of unbalance when it uses Single pole type. Because it is
easy to pick up noise with the state of unbalance, the length of the microphone cable recommends what is used at
less than 10 m.
Phantom Switch Position
In the case of Dynamic Microphone
In the case of Phantom Power Microphone
Mute SW
To Mic In
p
ut
Dynamic MIC
Two Core
Shielded
1
3
4
2
5
E
MIC
PHANTOM
ON
OFF
PHANTOM
ONOFF
To Mic Input
MIC
Two Core Shielded Cable
Double Pole Phone Plug
MIC
One Core Shielded
To Mic Input
Single Pole Phone Plug
MIC
MIC
6.1.3. AUX input connections (RCA pin jack)
Signal source (Tuner, Cassette Tape, etc)
One Core Shielded
