9
Step 2. Attach the joint bracket to the wall bracket using the supplied screws, adjust the horizontal speaker
angle, then tighten the screws.
Note: Match the orientation of the arrows on both the wall bracket and joint bracket.
Step 3. Attach the speaker bracket to the speaker's rear using the supplied screws.
Note: Attach the speaker bracket according to the speaker mounting orientation.
Step 4. Mount the speaker to the joint bracket by inserting the speaker bracket into the joint bracket and
loosely securing the fixing bolt for temporary speaker installation.
Step 5. Connect the speaker cable to the input terminal.
Note
Use a terminal cover when installing the speaker outdoors. (Refer to p.6 for terminal cover
attachment.)
Step 6. Adjust the speaker's vertical mounting angle and tighten the fixing bolt.
The speaker angle is adjustable in 7.5º steps.
Note
The mating surfaces of the speaker bracket and joint bracket are designed to interlock. Ensure that
both parts are securely engaged with each other after mounting is complete.
[Changing the orientation of the front panel logo]
The front panel logo is affixed to the mesh net using double-faced tape. Peel off the logo carefully and reaffix it
in the proper orientation.

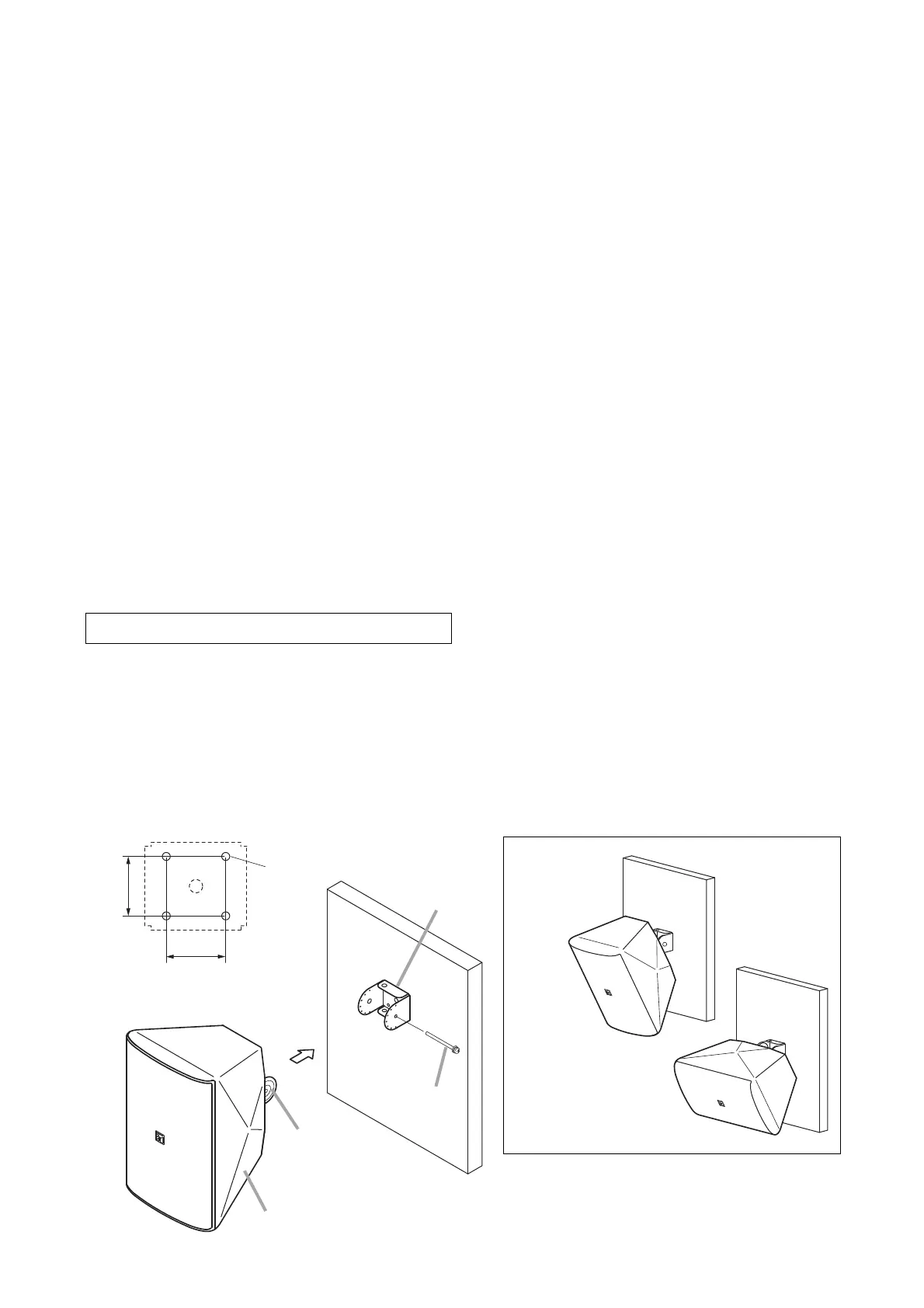

Use both the supplied joint bracket and speaker bracket, and mount the joint bracket directly to a wall. After
mounting the joint bracket, follow the Steps 3 – 6 above. In this configuration, the speaker can only be
adjusted in the vertical direction*.
* Vertical installation: Max. 37.5º downward, Horizontal installation: Max. 45º downward
Note: Hardware used for mounting the joint bracket to the wall is not supplied.
Mounting the speaker close to a wall surface
