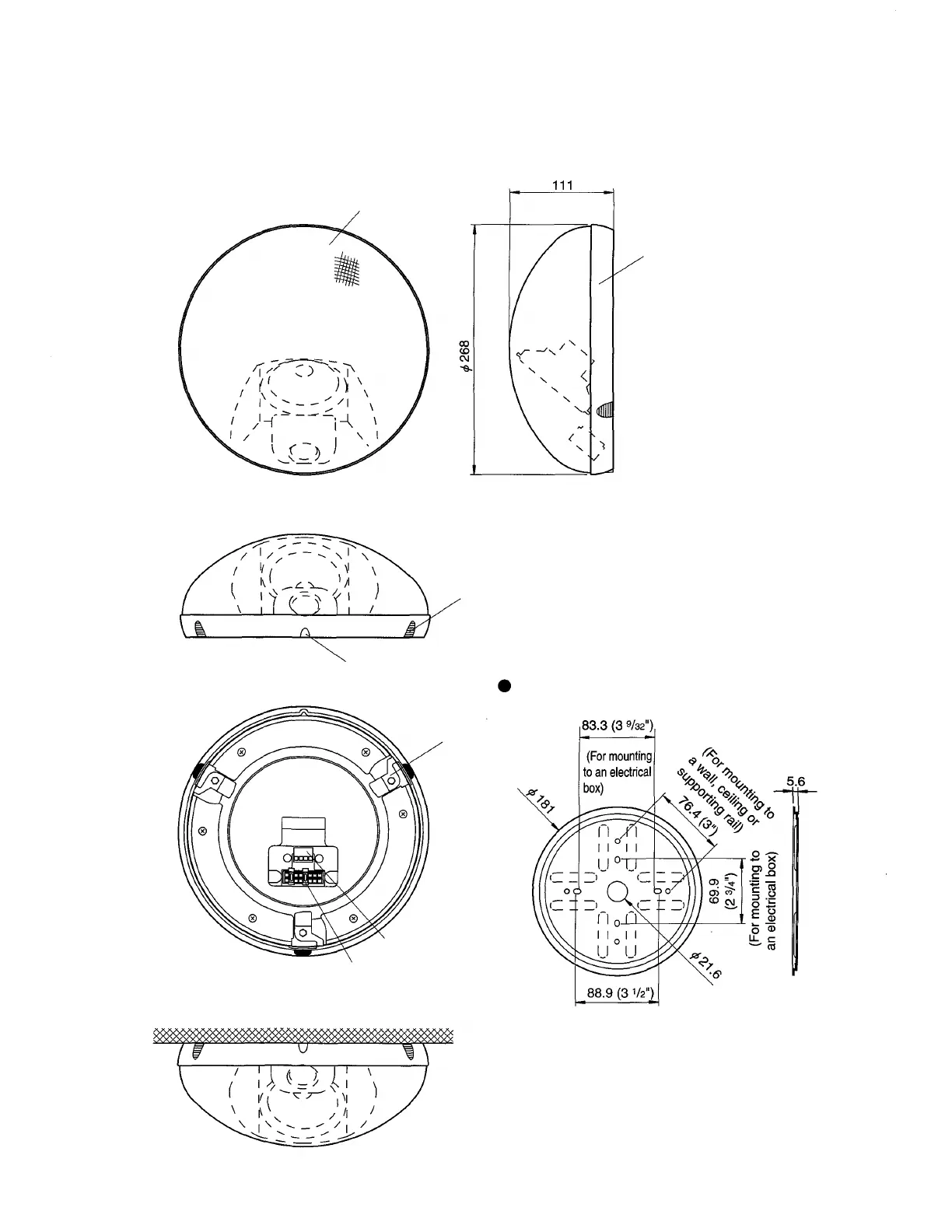

5. NOMENCLATURE
[Front Panel]
[Side Panel]
Unit: mm
Front grille (grille frame)
Front grille (Grille)
[Side Panel]
Anti-slip piece
Accessory (Base frame)
[Rear Panel]
Aiming marker
Lock tab
[Installation Example]
4
Detachable input connector
Connector for impedance selection
(For mounting to
an electrical box)
