1. XLR Type Audio Connector
The connectors are wired as follows.
2. Description of components and functions on the MX-104.
Various descriptions are applied, depending on each manufacturer. In our
Operating and Instruction Manual explanation of components and functions is
made according to our usage for them.
General Description
Features
Front Panel [Names of components & their usage]
Rear Panel [Names of components & their usage]
Connection Examples
Input Connections
Block and Level Diagrams
Specifications
Characteristics Diagrams
Appearance
2
2
3
4
5
6
7
8
9
9
—1—

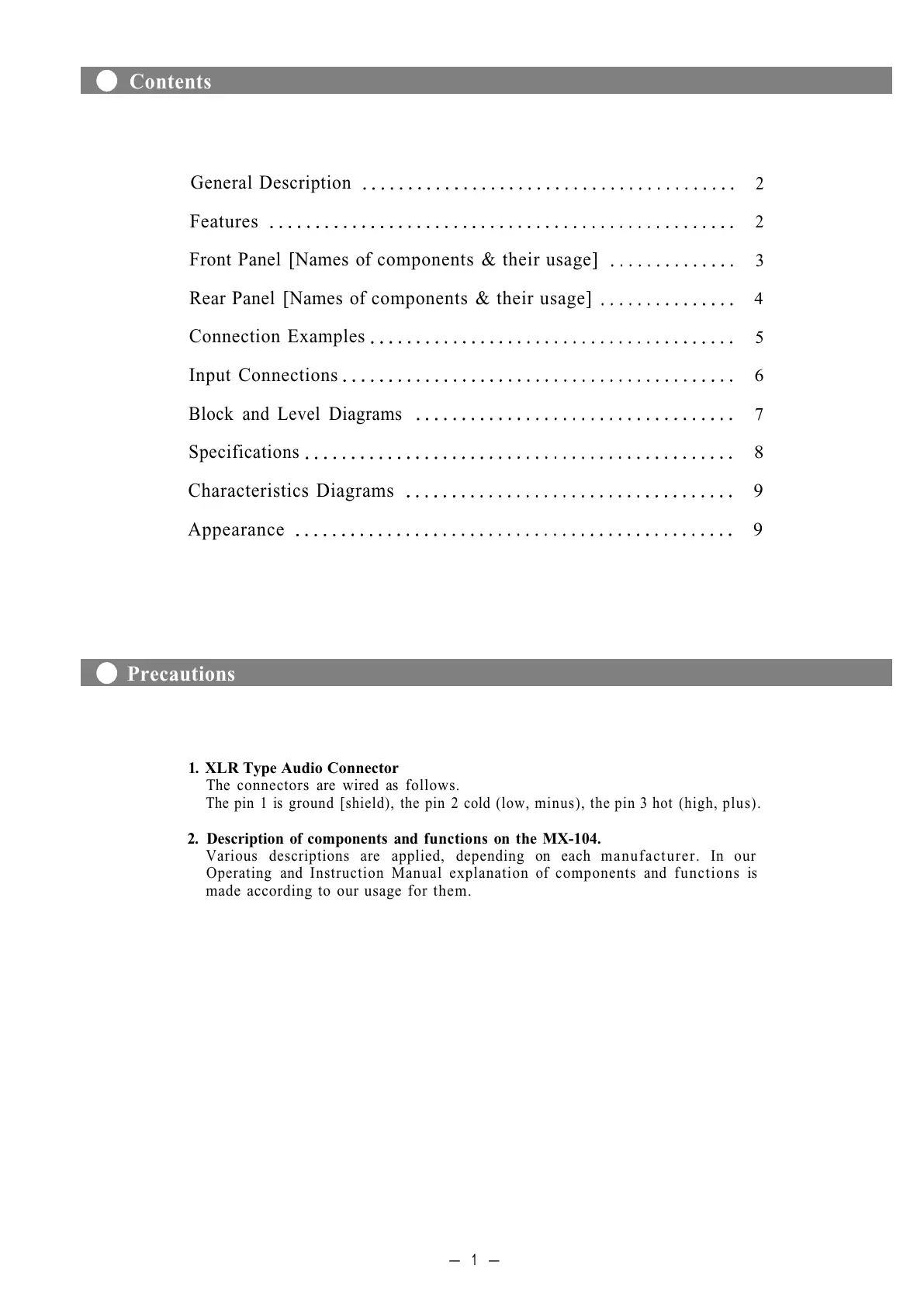

Contents
The pin 1 is ground [shield), the pin 2 cold (low, minus), the pin 3 hot (high, plus).
Precautions
