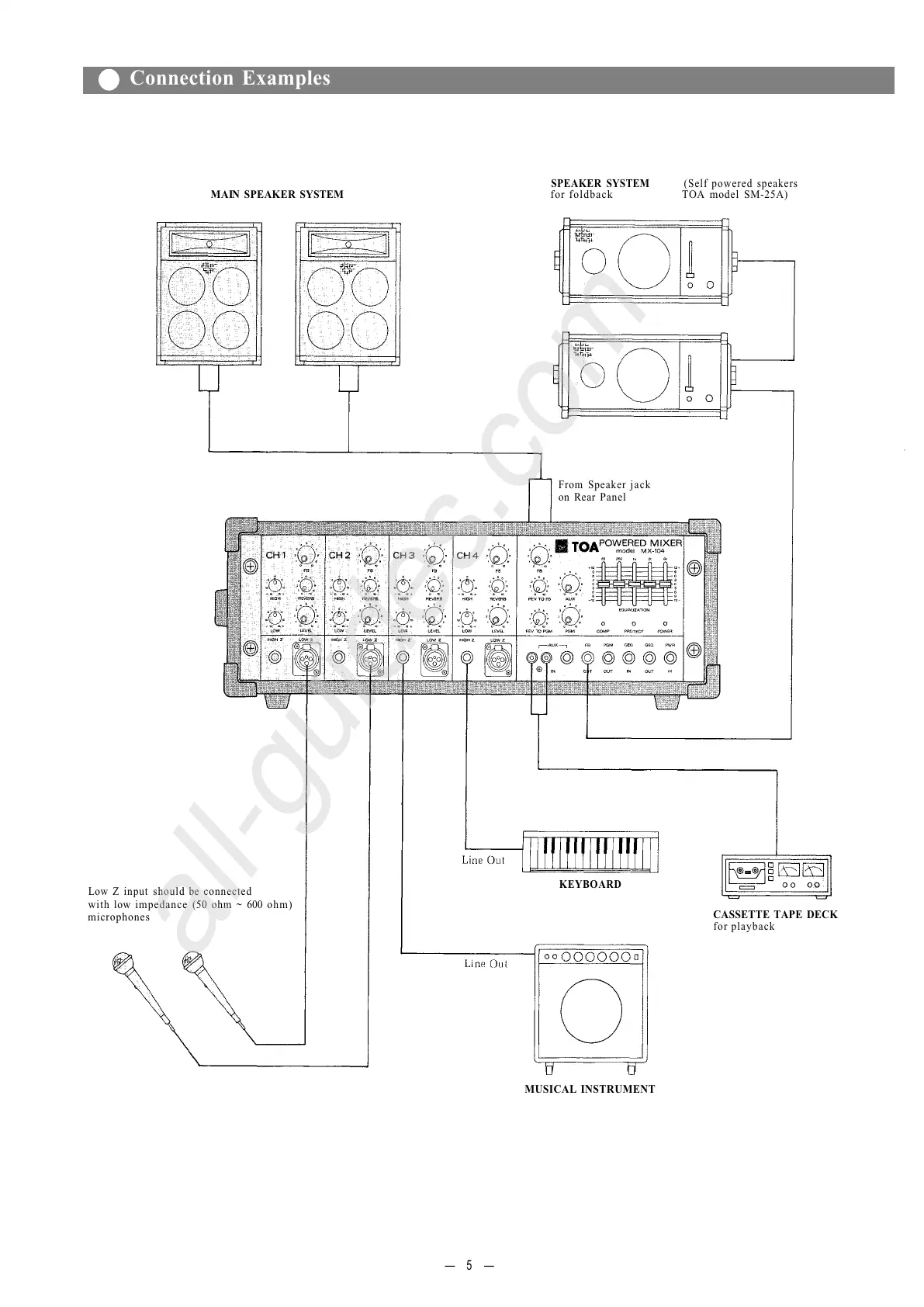

Toa MX-104 - Connection Examples; Main and Foldback Speaker Setup

SPEAKER SYSTEM (Self powered speakers
MAIN SPEAKER SYSTEM for foldback TOA model SM-25A)
From Speaker jack
on Rear Panel
Low Z input should be connected
with low impedance (50 ohm ~ 600 ohm)
microphones
MUSICAL INSTRUMENT
CASSETTE TAPE DECK
for playback
KEYBOARD
— 5 —
Connection Examples
