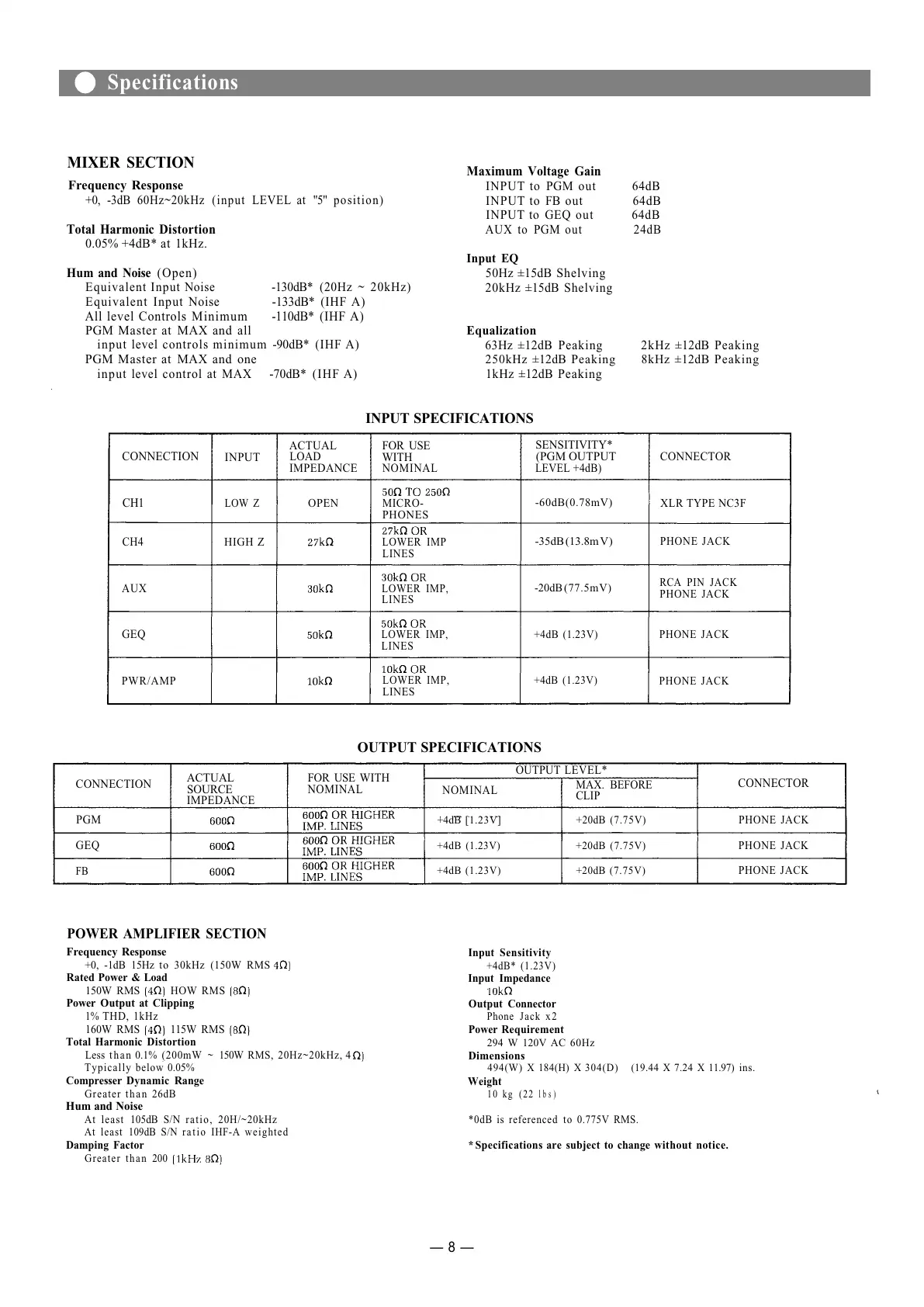

Toa MX-104 - Technical Specifications; Mixer Section Performance; Power Amplifier Section Performance

MIXER SECTION
Frequency Response
+0, -3dB 60Hz~20kHz (input LEVEL at "5" position)
Total Harmonic Distortion
0.05% +4dB* at 1kHz.
Hum and Noise (Open)
Equivalent Input Noise -130dB* (20Hz ~ 20kHz)
Equivalent Input Noise -133dB* (IHF A)
All level Controls Minimum -110dB* (IHF A)
PGM Master at MAX and all
input level controls minimum -90dB* (IHF A)
PGM Master at MAX and one
input level control at MAX -70dB* (IHF A)
Maximum Voltage Gain
INPUT to PGM out 64dB
INPUT to FB out 64dB
INPUT to GEQ out 64dB
AUX to PGM out 24dB
Input EQ
50Hz ±15dB Shelving
20kHz ±15dB Shelving
Equalization
63Hz ±12dB Peaking 2kHz ±12dB Peaking
250kHz ±12dB Peaking 8kHz ±12dB Peaking
1kHz ±12dB Peaking
CONNECTION
CH1
CH4
AUX
GEQ
PWR/AMP
INPUT
LOW Z
HIGH Z
INPUT SPECIFICATIONS
ACTUAL
LOAD
IMPEDANCE
FOR USE
WITH
NOMINAL
SENSITIVITY*
(PGM OUTPUT
LEVEL +4dB)
CONNECTOR
-60dB(0.78mV)
-35dB (13.8m V)
-20dB (77.5mV)
+4dB (1.23V)
+4dB (1.23V)
XLR TYPE NC3F
PHONE JACK
RCA PIN JACK
PHONE JACK
PHONE JACK
PHONE JACK
OPEN
CONNECTION
PGM
GEQ
FB
ACTUAL
SOURCE
IMPEDANCE
FOR USE WITH
NOMINAL
OUTPUT LEVEL*
NOMINAL
MAX. BEFORE
CLIP
CONNECTOR
PHONE JACK
PHONE JACK
PHONE JACK
+20dB (7.75V)
+20dB (7.75V)
+20dB (7.75V)
+4dB [1.23V]
+4dB (1.23V)
+4dB (1.23V)
OUTPUT SPECIFICATIONS
POWER AMPLIFIER SECTION
* Specifications are subject to change without notice.
MICRO-
PHONES
LOWER IMP
LINES
LOWER IMP,
LINES
LOWER IMP,
LINES
LOWER IMP,
LINES
Frequency Response
+0, -1dB 15Hz to 30kHz (150W RMS
Rated Power & Load
150W RMS
HOW RMS
Power Output at Clipping
1% THD, 1kHz
160W RMS 115W RMS
Total Harmonic Distortion
Less than 0.1% (200mW ~ 150W RMS, 20Hz~20kHz, 4
Typically below 0.05%
Compresser Dynamic Range
Greater than 26dB
Hum and Noise
At least 105dB S/N ratio, 20H/~20kHz
At least 109dB S/N ra t i o IHF-A weighted
Damping Factor
Greater than 200
— 8 —
Input Sensitivity
+4dB* (1.23V)
Input Impedance
Output Connector
Phone Jack x2
Power Requirement
294 W 120V AC 60Hz
Dimensions
494(W) X 184(H) X 304(D) (19.44 X 7.24 X 11.97) ins.
Weight
10 kg (22 lbs)
*0dB is referenced to 0.775V RMS.
Specifications
