SECTION 5
5-10
3-/ 4-Cylinder
Installation

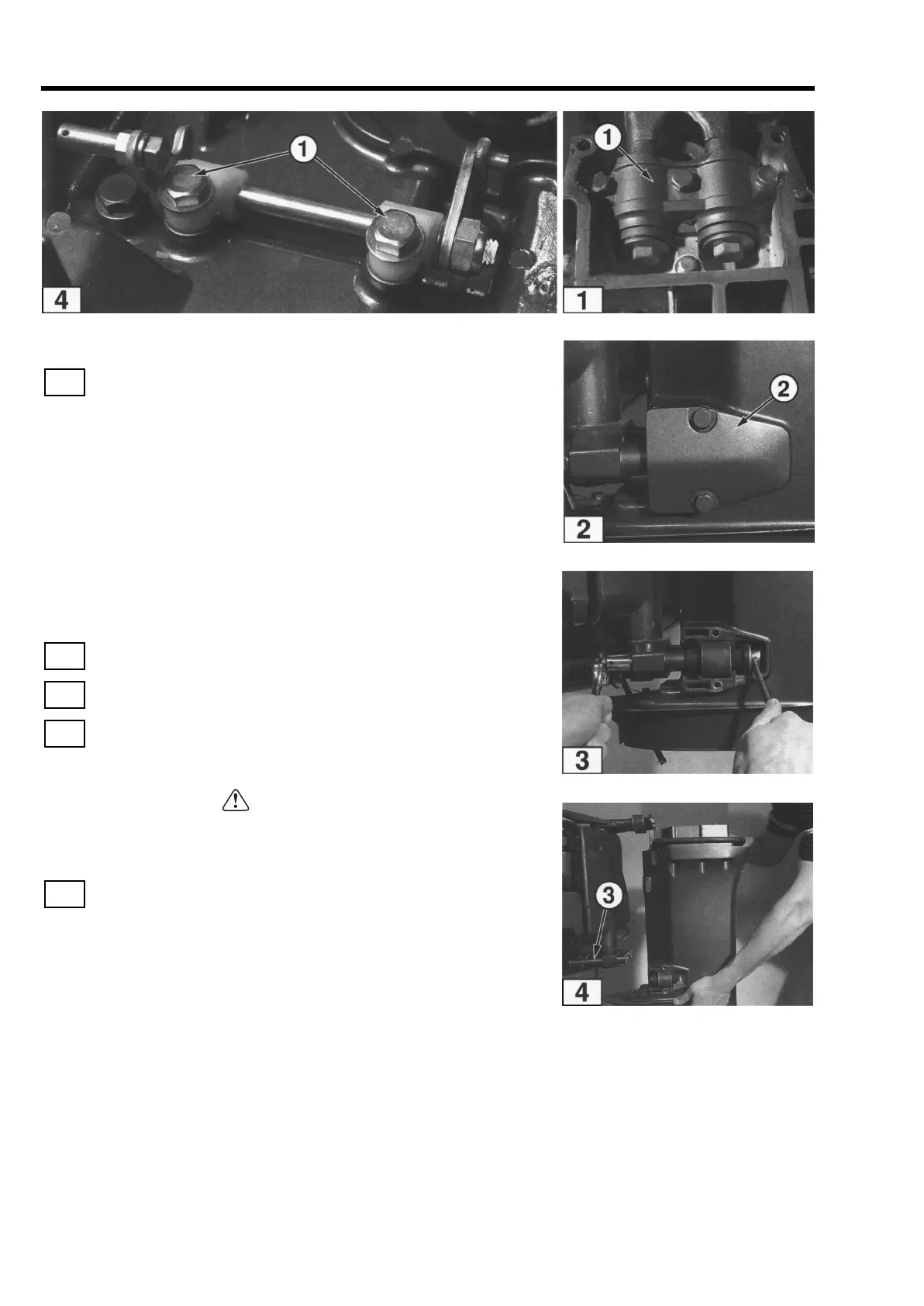

Installation is done in the reverse order of Removal. Use
Loctite 242 on shift lever shaft holder bolts
(1)
if removed.
DRIVESHAFT HOUSING
Removal
1. Remove powerhead as described in Section 4.
2. Remove tiller steering handle if equipped, this section.
3. Remove lower engine cover, this section.
4. Remove gearcase as described in Section 6.
5. Remove upper rubber mount cap
(1)
.
6. Remove lower rubber mount cap
(2)
.
7. With driveshaft housing tilted fully down, remove the nut
from each lower rubber mount bolt. Do not remove the
bolts.
CAUTION
Driveshaft housing is free to fall if lower rubber
mount bolts are removed.
8. Hold driveshaft housing securely. Pull out lower rubber
mount bolts
(3)
and remove driveshaft housing. Place
housing on bench for disassembly.
4
2
3
4
T1267
T1268
T1269
T1266T1336
