TOHATSU MFS 30C User Manual

ENGINE OPERATION 53
7

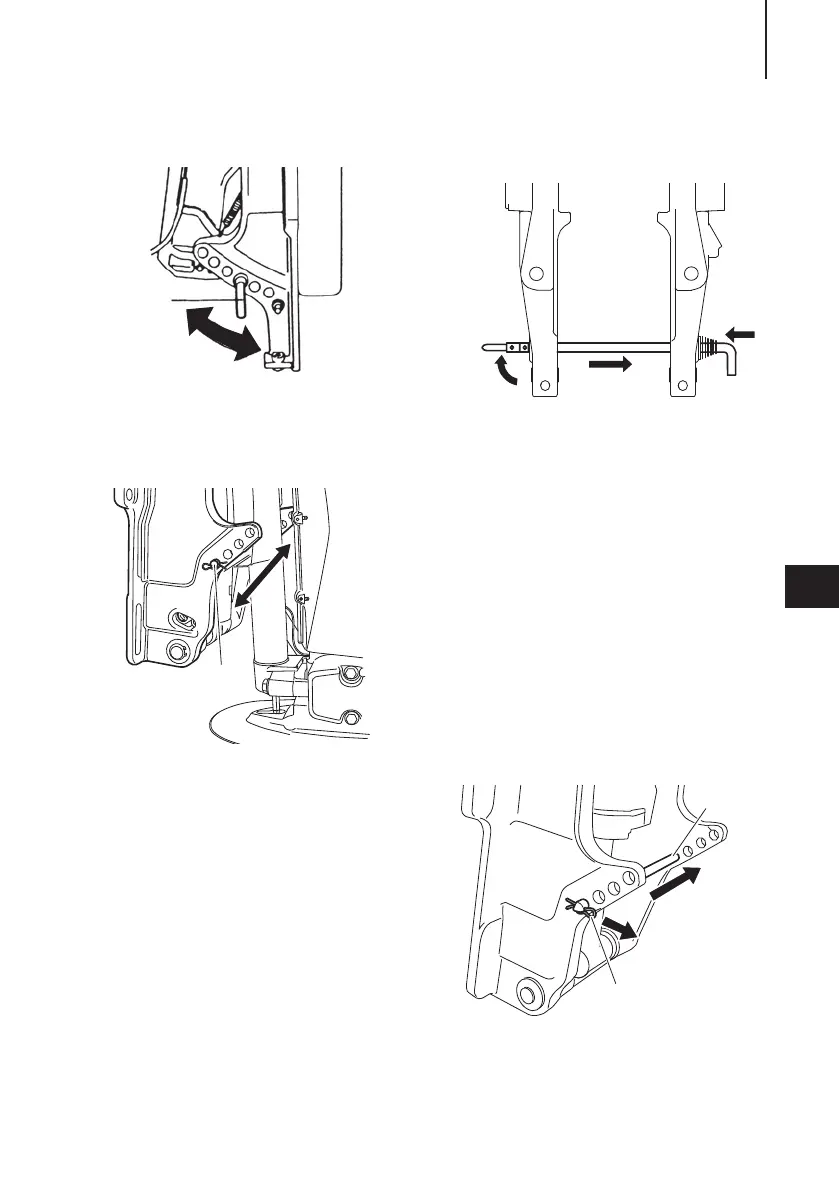

 Manual Tilt type
1. Thrust rod
2. Higher
3. Lower
 Power Tilt type
1. Thrust rod
2. Higher
3. Lower
Trim angle adjustment (Manual tilt type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral position.
3. Tilt up the outboard motor.
4. Remove the thrust rod as shown pic-
ture.
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thrust rod in the desired
position securely.
6. Gentry tilt down the outboard motor.
Trim angle adjustment (Power tilt type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral position.
3. Tilt up the outboard motor.
4. Lock the tilt stopper.
5. Remove the Snap pin and Thrust rod
as shown picture.
1. Snap pin
2. Thrust rod
1
3
2
ENOF00674-B
1
2
3
2
3
ENOF00888-0
3
2
1
ENOF01238-1
1
2
ENOF01147-0
