TOHATSU MFS 4 Service Manual

5
5-25
4st 4/5/6 2011

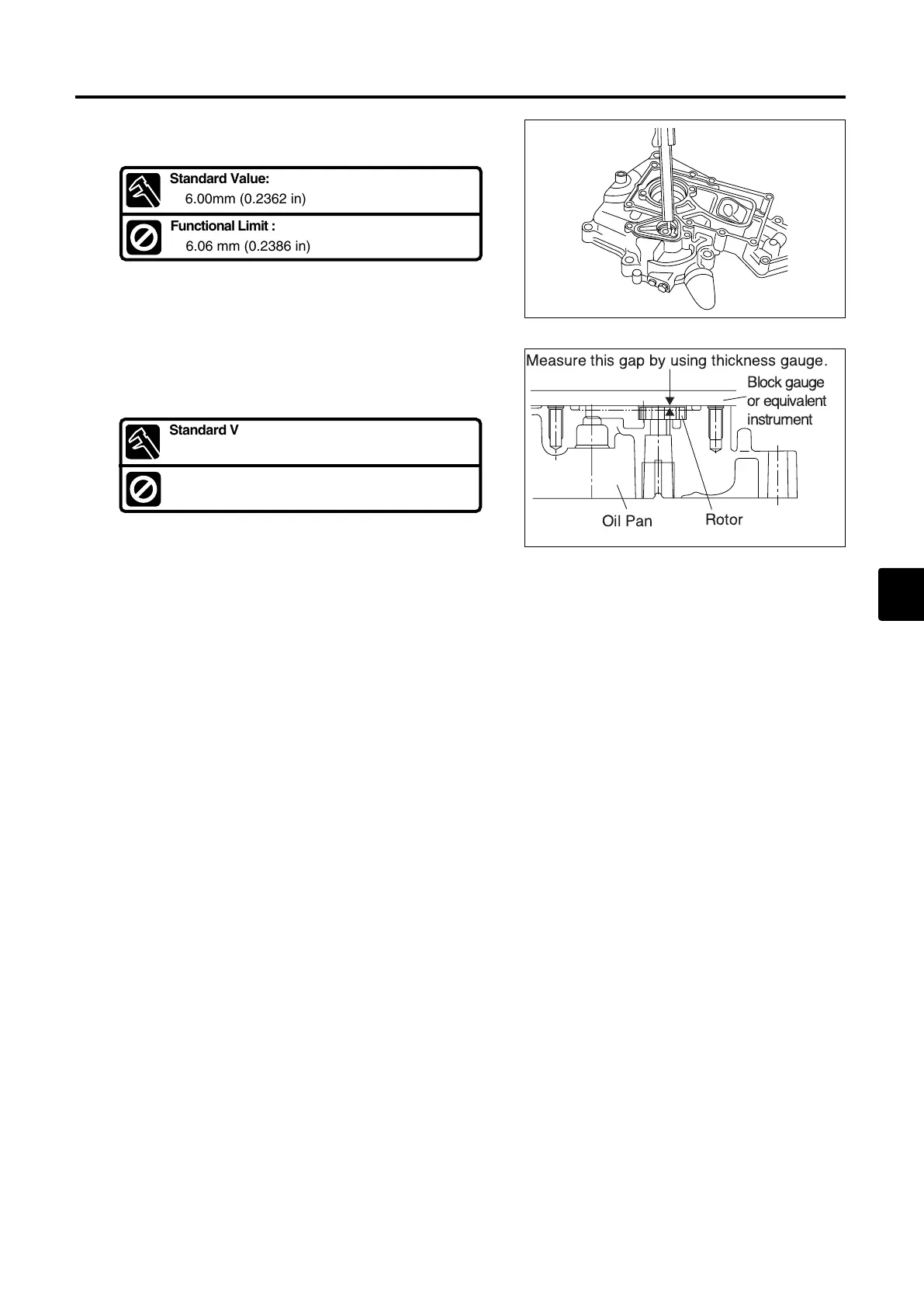

6. Measure pump body depth by using depth gauge or vernier
caliper. Replace if over specified limit.
7. Measure side clearance between pump rotor and body by
using depth gauge or vernier caliper. Replace if over
specified limit.
 
 

      

 
Standard Value:
6.00mm (0.2362 in)
Functional Limit :
6.06 mm (0.2386 in)
Standard Value:
0.02 - 0.07 mm (0.0008 - 0.0028 in)
Functional Limit :
Replace if over 0.10 mm (0.0039 in)
